Habegger HIT-TRAC 16 E - Inserting the Rope

68
5.2 Inserting the rope
Insert the rope when you have completed all preparatory work, i.e. after the machine has
been anchored and the load attached. In this way, the rope can be pretensioned by hand
and placed around the driving wheel at the suitable place without having to perform an idle

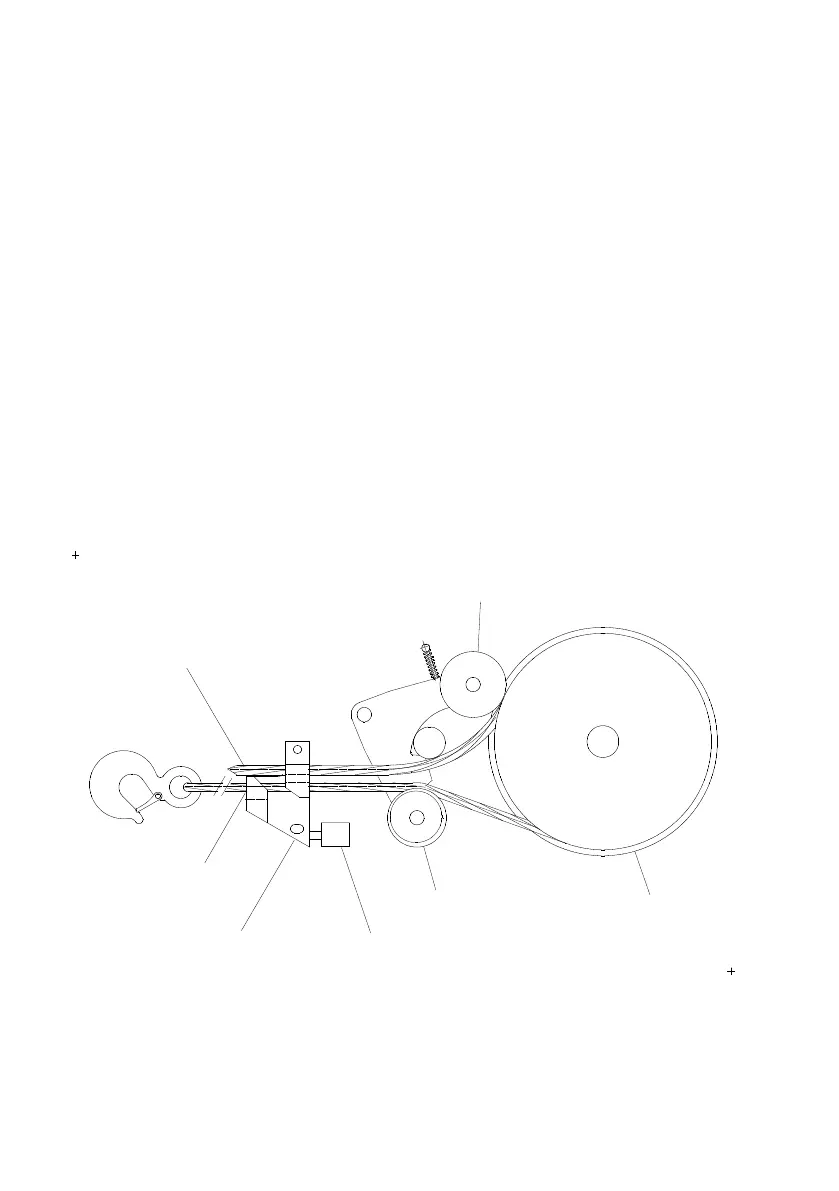

run. The rope is inserted into the driving wheel according to the drawing below:
(see page 78)
1.
Unlock cover (handle) and swing open
2.
Form a loop with the rope, with load hook underneath.
3.
Enter the carrying rope at the bottom in the guiding eyelet.
4.
Place the slack end of the rope on top in the guide eyelet and under the pressure
roller (lift rocker).
5.
Insert the loop in the groove of the driving wheel.
6.
Place the rope with the load hook over the guide roller (push rocker downwards).
7.
Start the motor and slightly tension the rope
11.
Once again check whether the rope is positioned correctly.
12.
Insert and lock (handle) the cover.
Press u re r o ller
Guid e rol l e r
Loos e en d of rope
Pulli n g ro p e
with loa d hoo k
Drivin g w h eel
Limit swi t c h (l i f ting )
Guid e eye l e t
Roc k er
