Hach 2100P ISO - Page 50

50
SECTION 4, continued

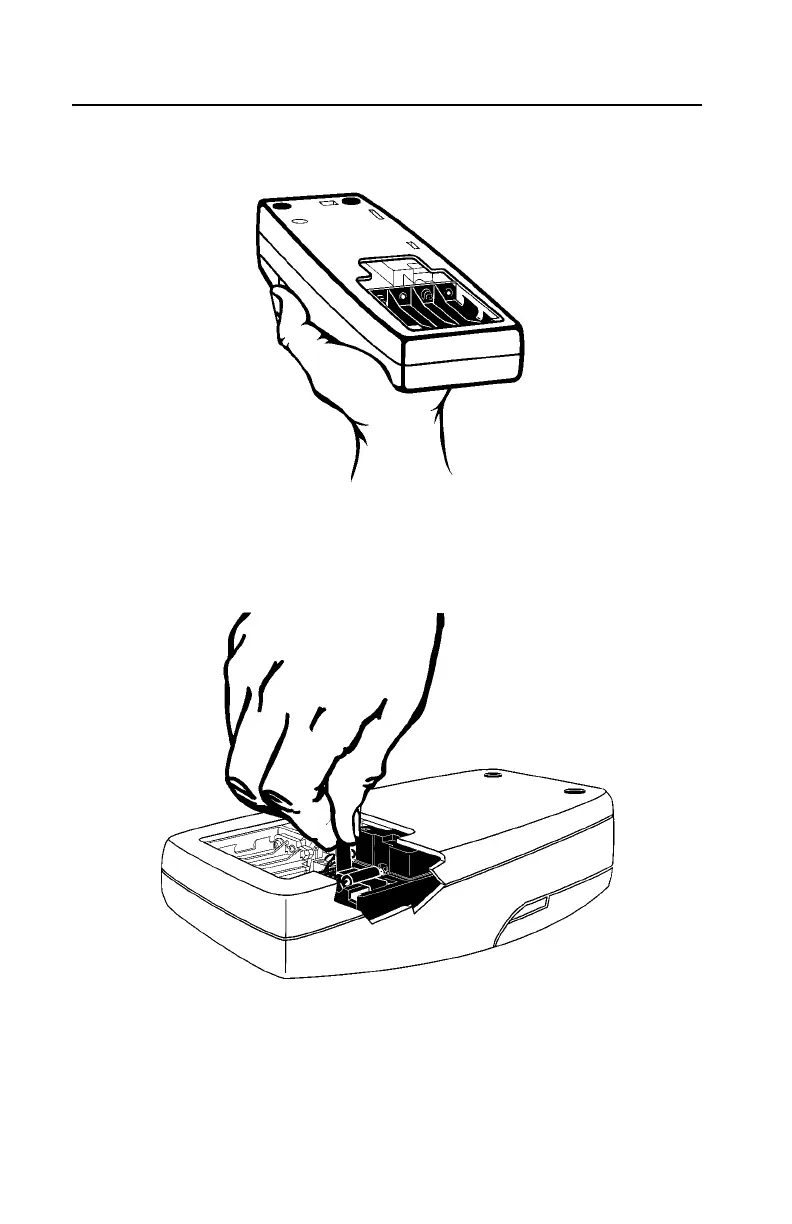

1. Orient the instrument so it is upside down and the top faces away
from you. Remove the battery cover and at least one battery.
2. Remove the lamp assembly by grasping the tab on the left side of
the assembly. Firmly, but gently, slide the assembly towards the rear
of the instrument.
