Install the sensor storage tubes
Put the three sensor storage tubes into the holder that is on the side of the instrument (refer to
Product overview on page 5). Keep the sensor in a storage tube when not in use.

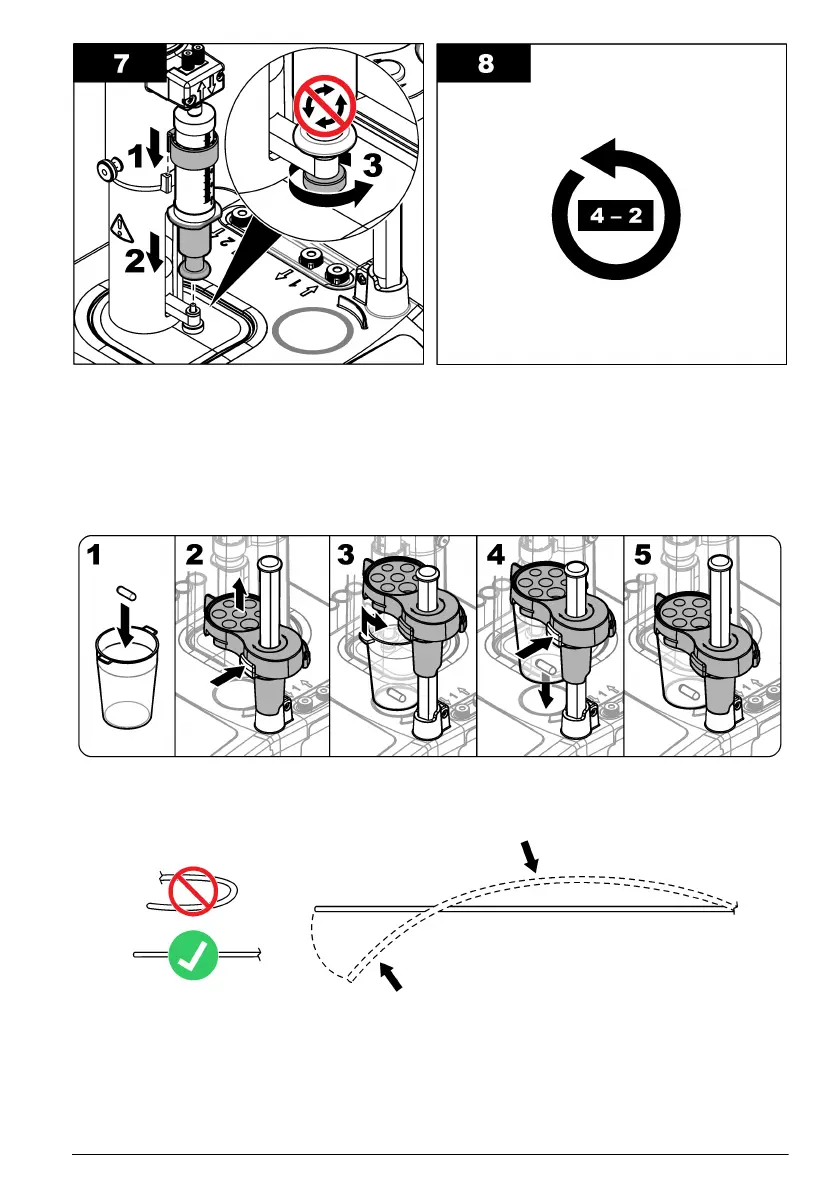

Install the stir bar and the beaker
Add the stir bar to the beaker, and then attach the beaker to the sensor holder.
Prepare the tubes
Remove any bends in the end of the tubes.
Connect the tubes
Arrow symbols identify the inlet and outlet ports for the syringe and the pump connections. The “up”
arrow is the outlet port. The “down” arrow is the inlet port. Turn the tube connectors on the inlet and
outlet ports of the syringe and pump until they click.
English
11
