hager 4501 User Manual

4500/4600 Series Electric Exit Device
Installation Instructions
I-ED00367
Rev 8, Rev Date: 8/27/2018 27390025 Page 3 of 3
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com

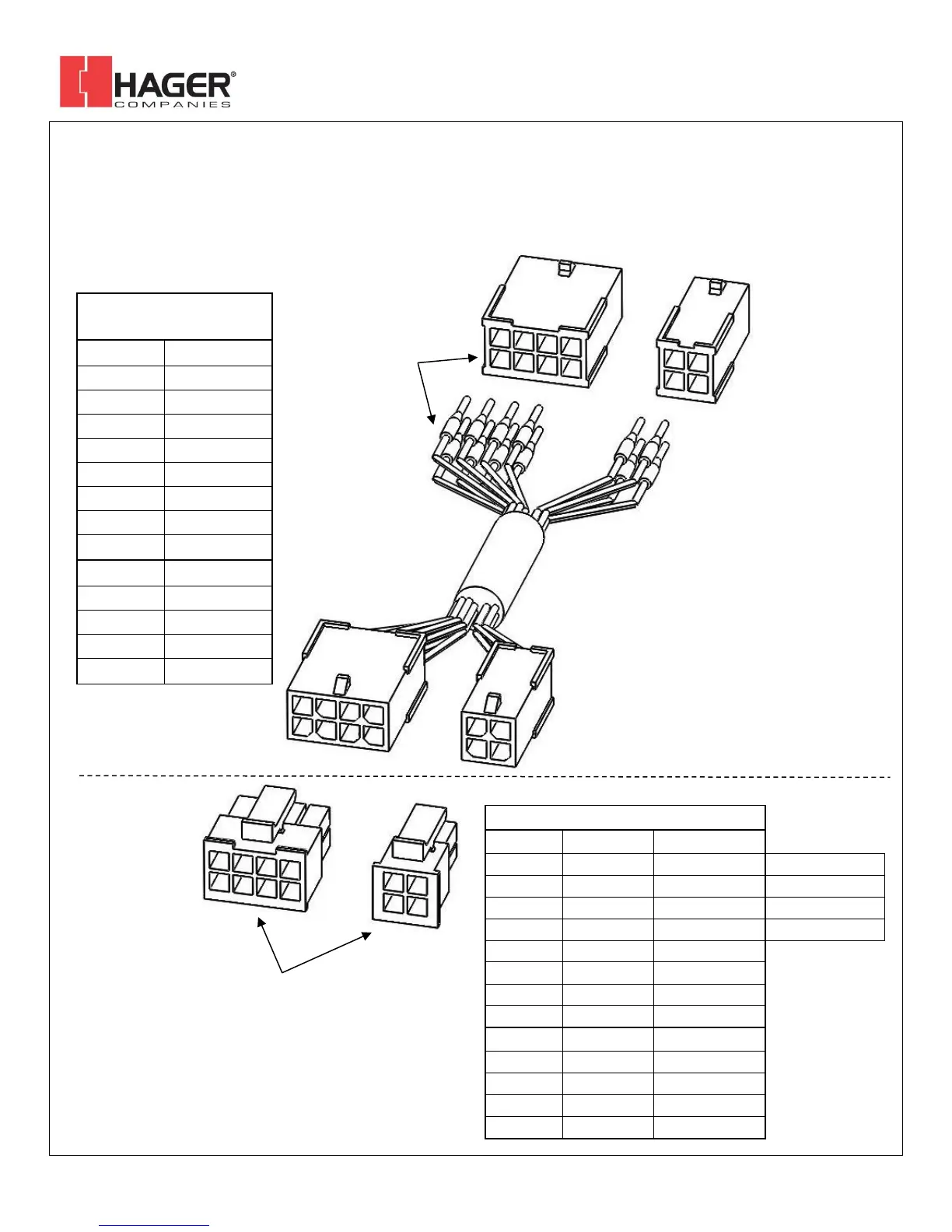

QUICK CONNECTS
- Quick connects are installed on the wires from the exit device electrification options. These quick
connects are compatible with Hager Quick Connect Harness Cable which can be used to plug into
Hager hinges with quick connects to provide quick and accurate wiring of the door.
Quick Connect
Harness Cable Pinning
8 Pin
Wire Color
Pin # 1
Black
Pin # 2
Red
Pin # 3
White
Pin # 4
Green
Pin # 5
Orange
Pin # 6
Blue
Pin # 7
Brown
Pin # 8
Yellow
4 Pin
Color
Pin # 1
Violet
Pin # 2
Gray
Pin # 3
Pink
Pin # 4
Tan
1
4
3
2
2
1
8
7
6
5
4
3
2
1
4
3
2
2
1
8
7
6
5
4
3
2
4501/4601 Quick Connect Pinning
8 Pin
Function
Wire Color
Pin # 1
Power*
Color*
*Color (Power)
Pin # 2
Power*
Color*
• Black (ED)
Pin # 3
RX (Com)
Yellow
• White (MLR)
Pin # 4
RX (N/O)
Red
• Blue (ELR)
Pin # 5
RX (N/C)
Gray
Pin # 6
AI (Com)
Black
Pin # 7
AI (N/O)
Orange
Pin # 8
AI (N/C)
Purple
4 Pin
Function
Color
Pin # 1
Blank
Blank
Pin # 2
LM (Com)
Black
Pin # 3
LM (N/O)
White
Pin # 4
LM (N/C)
Red
NOTE: Pin harness
as needed.
Hager Quick Connect
Harness Cable
(Sold Separately)
Hager Exit Quick
Connect Terminals
