On the home screen, tap the device icon and then
device settings.
The time switch implements the "AND" logical operator between all steps in the same program.

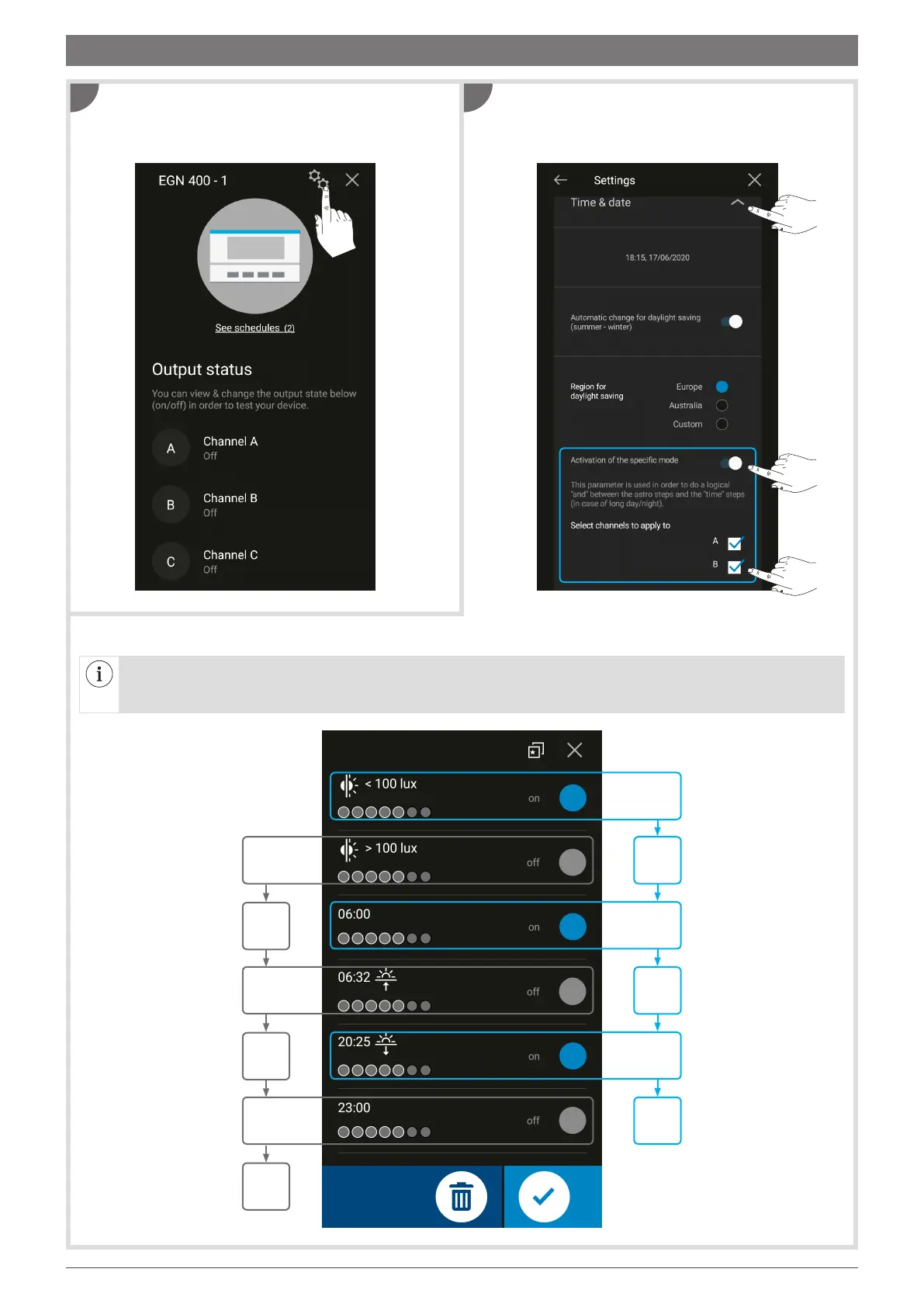

1 Tap to open the Date and Time drop-down menu.
2 Slide the Activate special mode button to the
"on" position.
3 Select the output(s) concerned.
1 2
7. The "AND" logical operator (EGN100/200/400)
For example, on the screen below we want to:
• switch on the light when the brightness is below 100 lux, at 6 am, AND at sunset (8:25 pm) = ON
and
• switch o the light when the brightness is above 100 lux, at sunrise (6:32 am) AND at 11:00 pm = OFF
AND
AND
AND
AND
=
ON
=
OFF

hager EGN100 Specifications

General

Type	Time switch
Product color	Gray
Wire size range	0.2 - 4 mm²
Built-in display	No
Housing material	Plastic
Number of modules	1
Protection features	Scratch resistant
Compatible load types	Single-phase AC motor
Connectivity technology	Wired
International Protection (IP) code	IP20
AC input voltage	230 V
AC voltage range	230 - 254 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	62.5 mm
Width	17.8 mm
