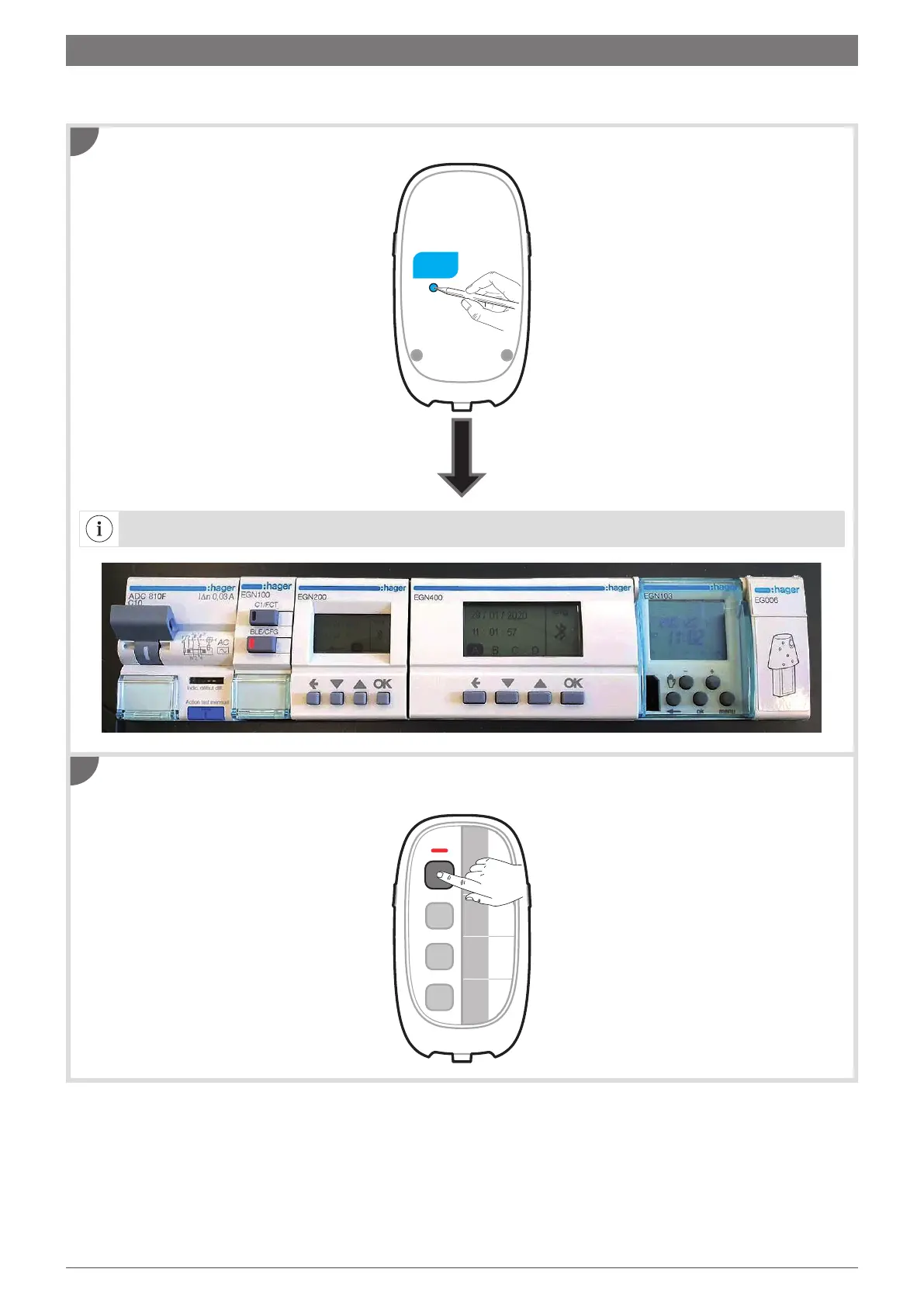

Enter configuration mode by pressing and releasing the cfg pushbutton on the input device.
Tap the input which will control the time switch (output), then continue as required for the device concerned
(EGN100 or EGN200/400) (1).
(1) For more information on inputs, scan the QR Code of one of the time switches at the end of the manual for details on conguration.
The RF link allows the output(s) (A..D) of the time switch (receiver) to be associated with one or more
Quicklink radio comfort devices (input(s)/transmitter).
1
2
9. RF-Quicklink connection
All time switches (output) enter configuration mode.
cfg

hager EGN100 Specifications

General

Type	Time switch
Product color	Gray
Wire size range	0.2 - 4 mm²
Built-in display	No
Housing material	Plastic
Number of modules	1
Protection features	Scratch resistant
Compatible load types	Single-phase AC motor
Connectivity technology	Wired
International Protection (IP) code	IP20
AC input voltage	230 V
AC voltage range	230 - 254 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	62.5 mm
Width	17.8 mm
