hager EGN100 User Manual

14

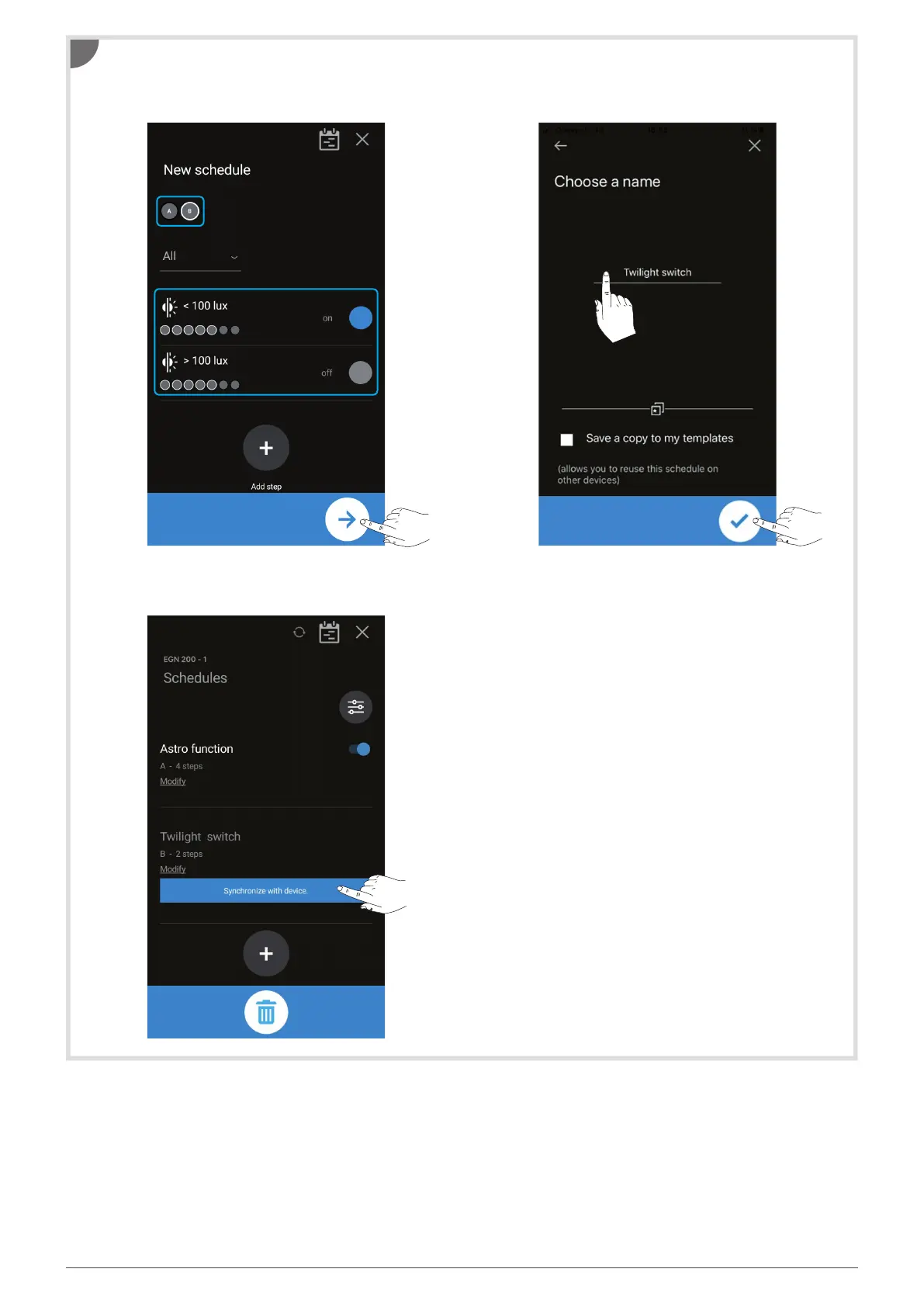

1 Check the 2 steps of the new program created on
output B then tap the arrow to move to the next
page.
3 Tap Synchronize device to save the new program to the time switch (to return to the home screen,
double-tap X).
Synchronizing the program with the device:
2 Give a name to the program then confi rm your
choice.
4

hager EGN100 Specifications

General

Type	Time switch
Product color	Gray
Wire size range	0.2 - 4 mm²
Built-in display	No
Housing material	Plastic
Number of modules	1
Protection features	Scratch resistant
Compatible load types	Single-phase AC motor
Connectivity technology	Wired
International Protection (IP) code	IP20
AC input voltage	230 V
AC voltage range	230 - 254 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	62.5 mm
Width	17.8 mm
