hager EGN100 User Manual

6

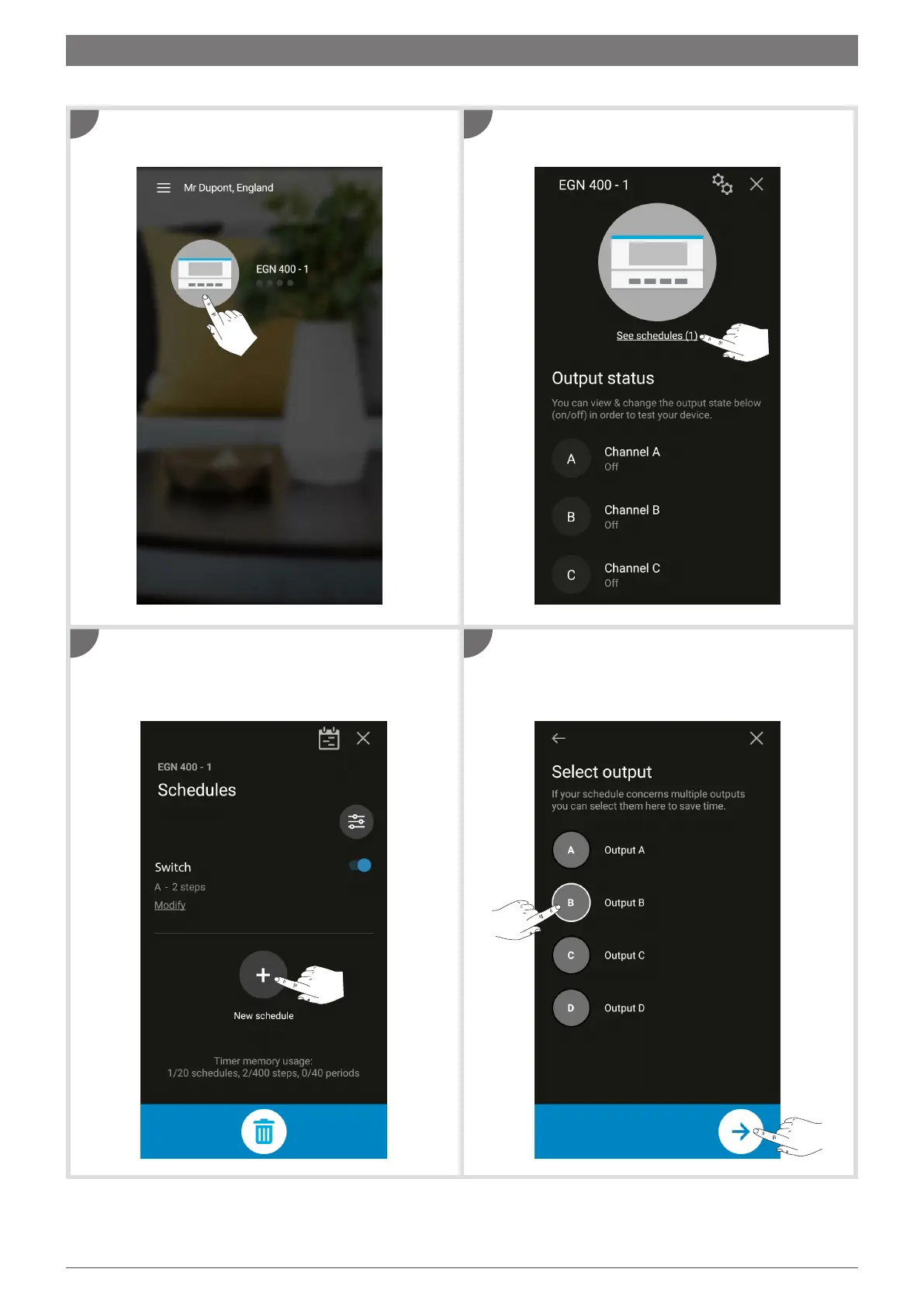

On the home screen, tap the icon of the device you
wish to programme.
Tap
+ to add a new program. You can now choose
whether to enter the program settings one by one, or
select a template. Then confirm.
Tap View programs.
Select the output(s) available for programming and
then tap the arrow (to add program steps, see section 6).
To create a new program (custom or template):
1
3
2
4
4. Create a new program

hager EGN100 Specifications

General

Type	Time switch
Product color	Gray
Wire size range	0.2 - 4 mm²
Built-in display	No
Housing material	Plastic
Number of modules	1
Protection features	Scratch resistant
Compatible load types	Single-phase AC motor
Connectivity technology	Wired
International Protection (IP) code	IP20
AC input voltage	230 V
AC voltage range	230 - 254 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	62.5 mm
Width	17.8 mm
