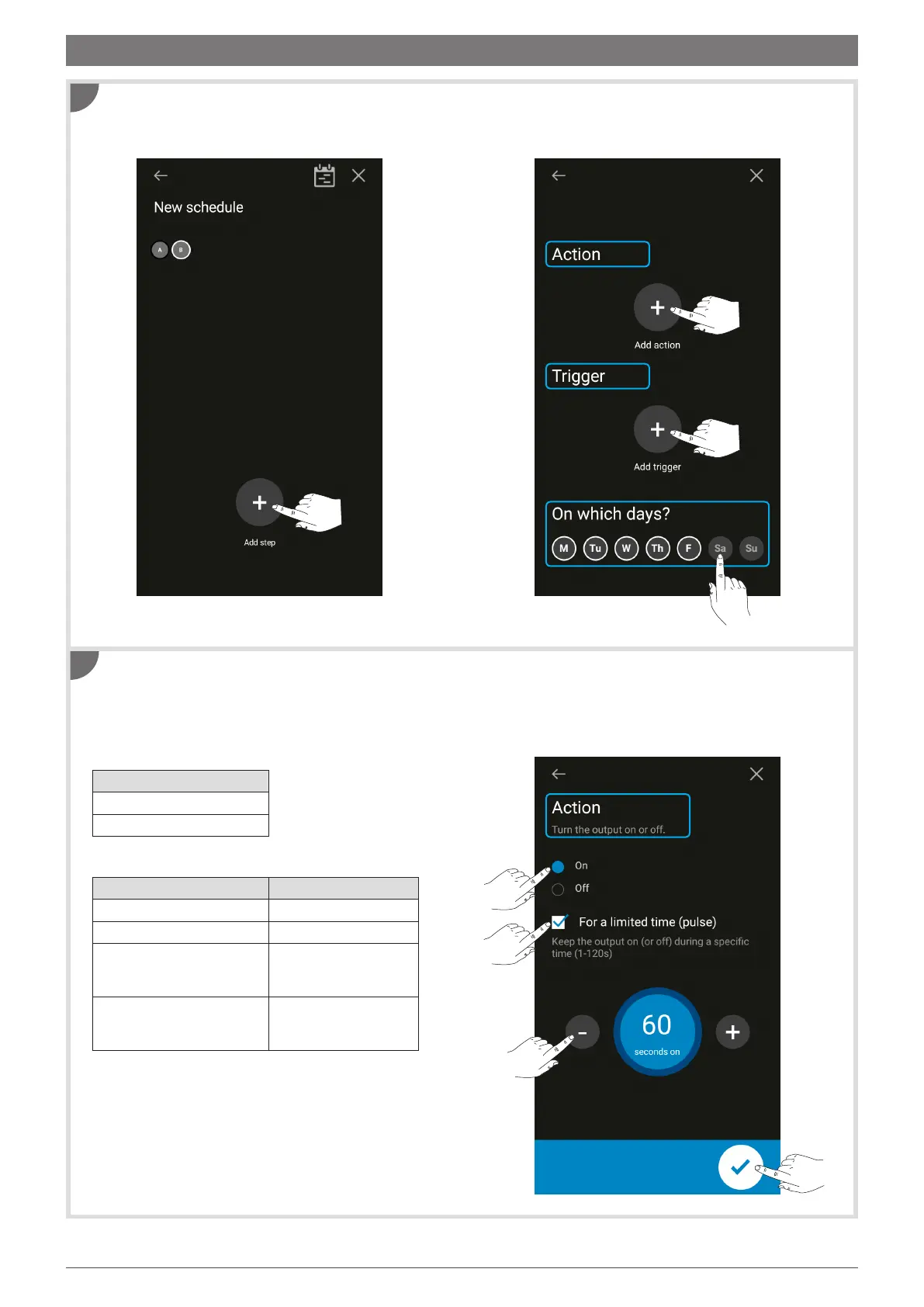

1 Create a new program (see section 4).
2 Click on + to add a program step.
To select an action:
1 tap
+ to add an action
2 select one of the actions below, adjust its setting as required, then tap the confirm button.
Actions available per device and setting:
• EGN003
Example: Pulse On for 60 seconds
• EGN100/200/400
For each new step, you must define a an action plus a
trigger, and the days you want the step to be executed,
as applicable:
1
2
6. Adding program steps
Action Setting
On
O
On
For a limited time
(pulse)
1 to 60 seconds
O
For a limited time
(pulse)
1 to 60 seconds
Action
On
O

hager EGN100 Specifications

General

Type	Time switch
Product color	Gray
Wire size range	0.2 - 4 mm²
Built-in display	No
Housing material	Plastic
Number of modules	1
Protection features	Scratch resistant
Compatible load types	Single-phase AC motor
Connectivity technology	Wired
International Protection (IP) code	IP20
AC input voltage	230 V
AC voltage range	230 - 254 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	62.5 mm
Width	17.8 mm
