hager EGN100 User Manual

5

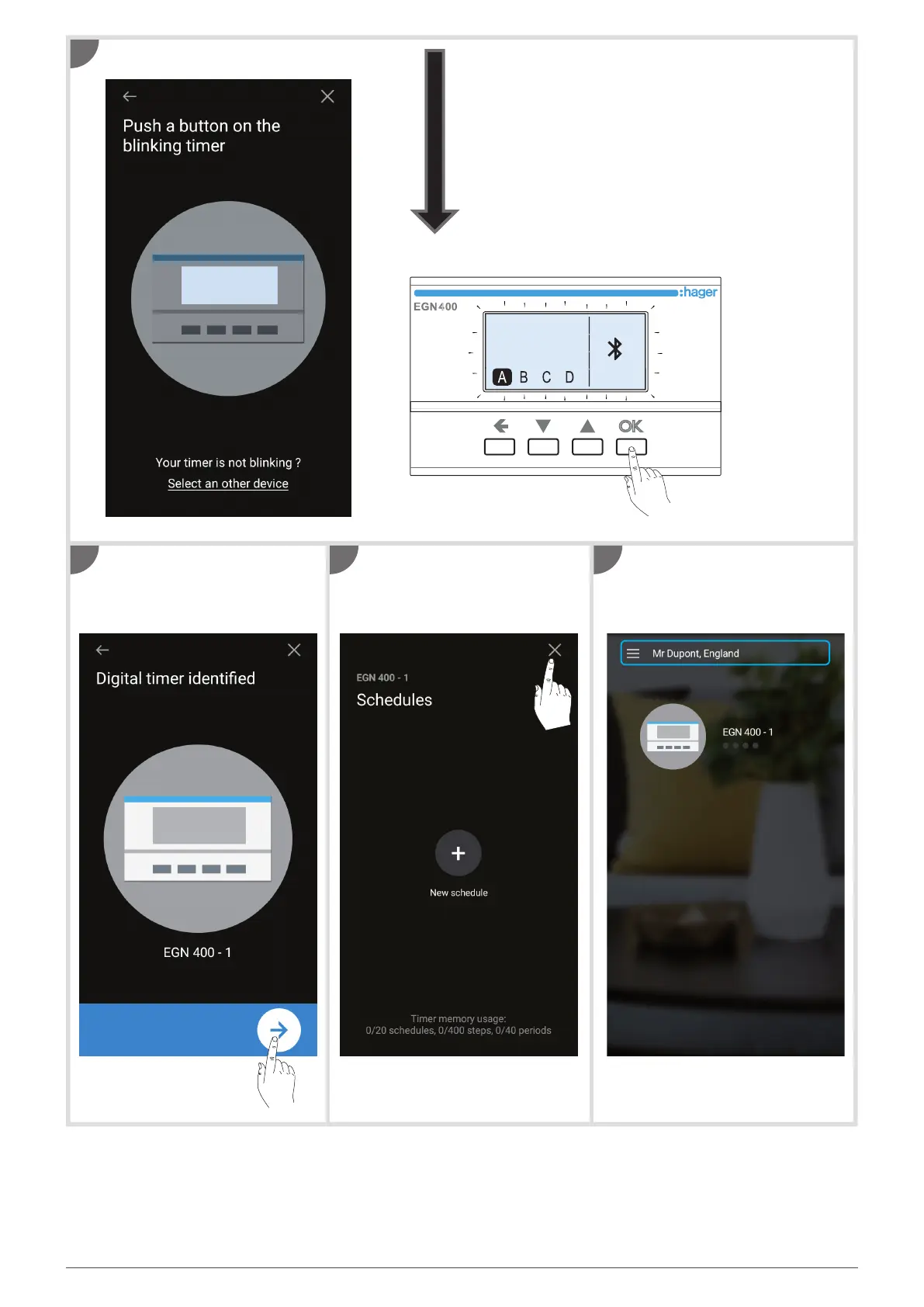

Press any button on the time switch.
The device has been identifi ed.
Touch the arrow key, give a
name to the product if necessary,
and then confi rm.
To return to the home screen,
double-tap the X key (or tap the
+ key to create a new program: see
next section).
The device has now been added
to the home screen.
4
5 6 7
4
O
K
28 / 03 / 2020
15 : 18 : 04

hager EGN100 Specifications

General

Type	Time switch
Product color	Gray
Wire size range	0.2 - 4 mm²
Built-in display	No
Housing material	Plastic
Number of modules	1
Protection features	Scratch resistant
Compatible load types	Single-phase AC motor
Connectivity technology	Wired
International Protection (IP) code	IP20
AC input voltage	230 V
AC voltage range	230 - 254 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	62.5 mm
Width	17.8 mm
