hager EGN100 User Manual

20

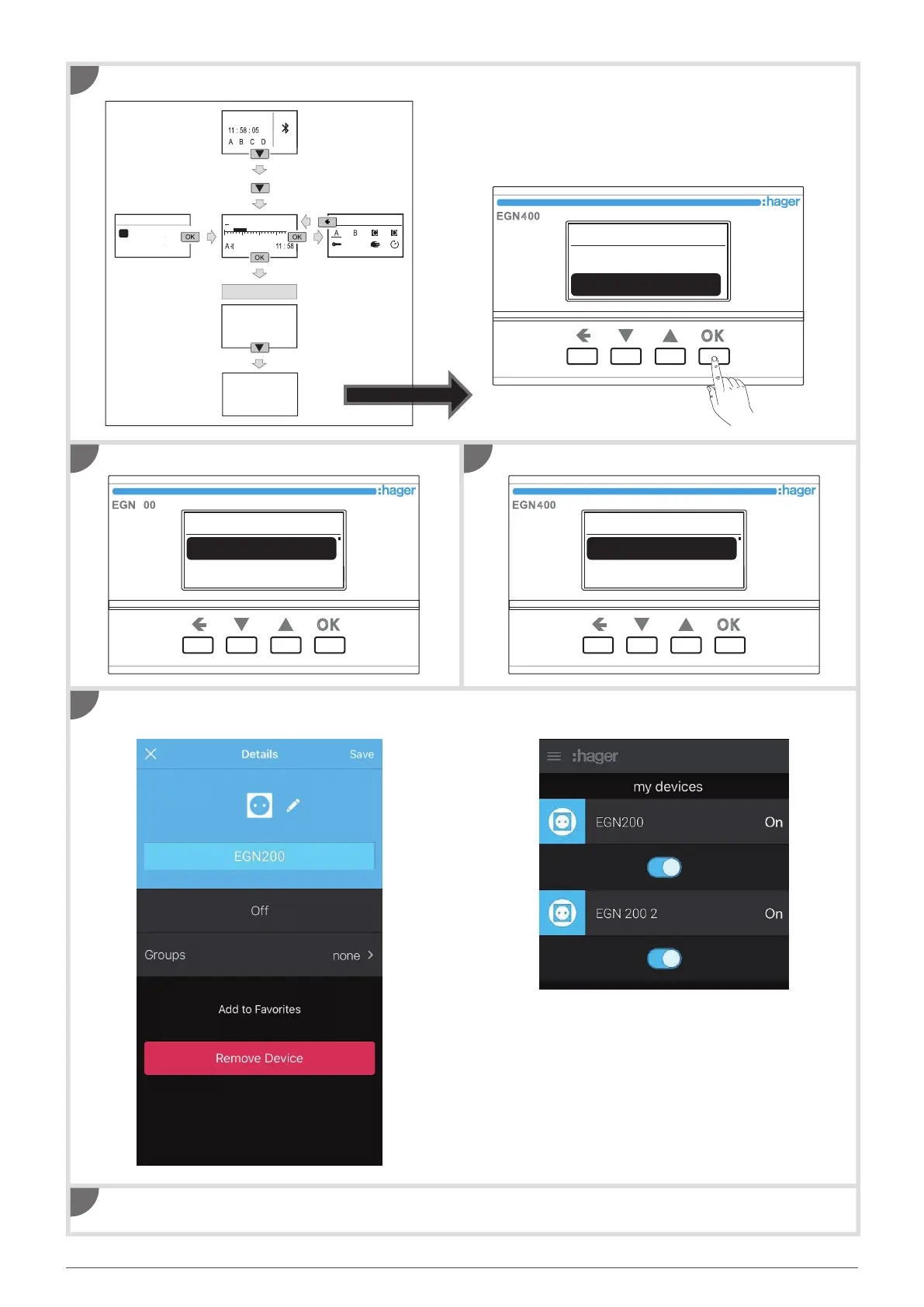

1 Open the MENU, 2 select Settings then 3 press OK to confi rm.
Select RF links.
Once the device is recognized, its ID appears on the screen. Select the output function on the time switch.
Perform the same operation for all EGN200 and EGN400 outputs.
For EGN200 and EGN400:
Select the output.
3
4
6
7
5
Press a key twice
Press
and hold
Programs
Settings
HOME
SCREEN
SCREEN
SAVER
MENU
DATE / TIME
28 / 03 / 2020
24h 11 : 58
cfg
0
6
12
18
L M M J V S D
MANUAL COMMANDS
x fois
28 / 03 / 2020
4
O
K
Settings
MENU
Programs
1
2
3
4
O
K
Bluetooth
SETTINGS
RF links
4
O
K
Output B
OUTPUTS
Output A

hager EGN100 Specifications

General

Type	Time switch
Product color	Gray
Wire size range	0.2 - 4 mm²
Built-in display	No
Housing material	Plastic
Number of modules	1
Protection features	Scratch resistant
Compatible load types	Single-phase AC motor
Connectivity technology	Wired
International Protection (IP) code	IP20
AC input voltage	230 V
AC voltage range	230 - 254 V
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-25 - 70 °C
Operating temperature (T-T)	-5 - 45 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Depth	62.5 mm
Width	17.8 mm
