24
Installation and Maintenance Manual, Compact CA
Note 1 Uncoated screws greased with MoS
2
.
Note 2 There is a metallic sign on every coupling with a tightening torque stamped on it.
This torque is always to be used.
Note 3 Tightening torque value is critical. Use calibrated torque wrench.
1
12
11
10
9
8
2
3
4
5
6
7

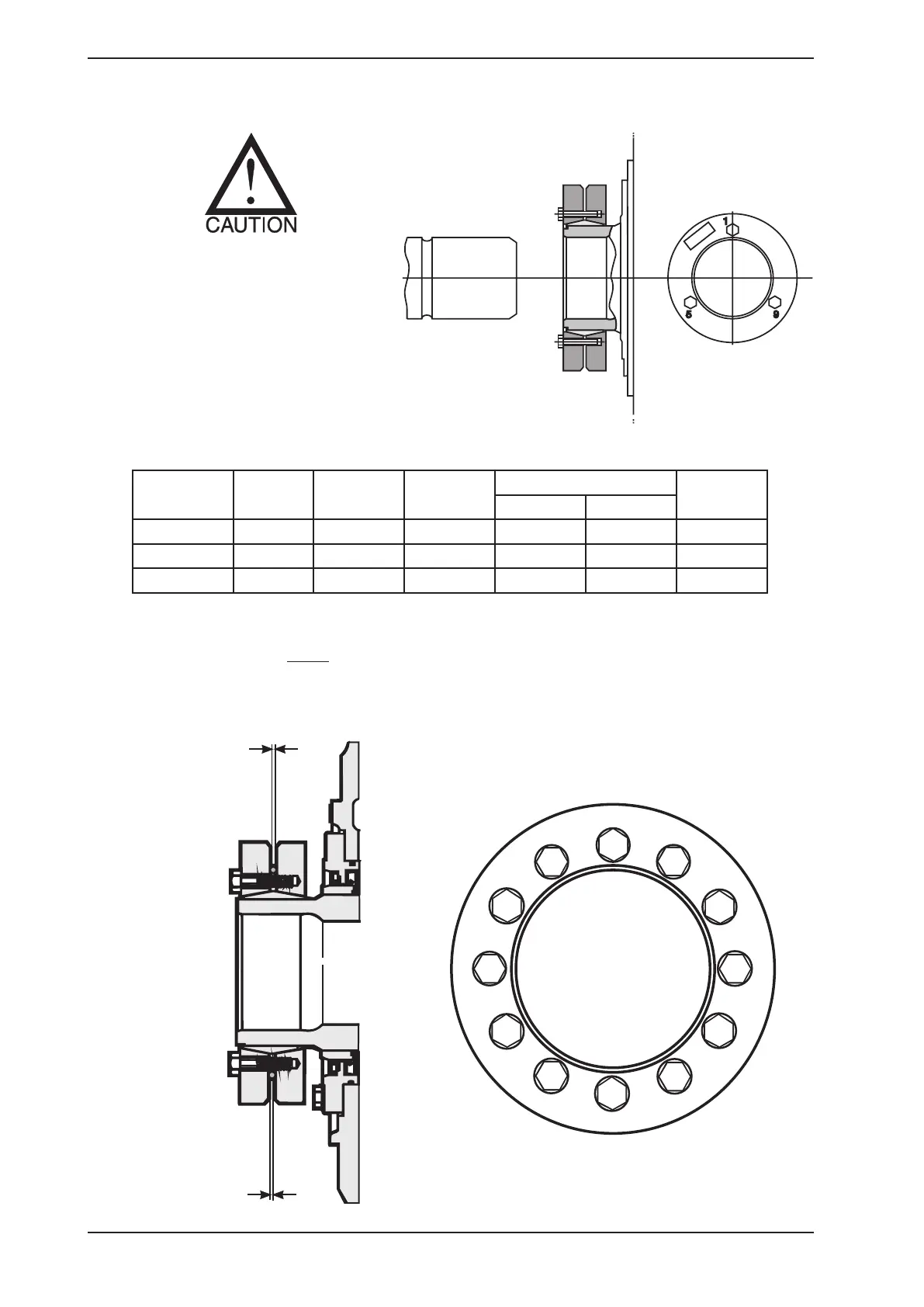

Figure 3.14 Figure 3.14a
Clean the driven shaft and
the inside of the motor
hollow shaft.
9
1
5
Figure 3.13
Installation
Table 3.9
Motor type
No of
screws
Screw dim
Strength
class
Tightening torque
Type of
head
Nm lbf·ft
CA 50/70
8 M16 x 55 10.9 250 185 Hexagon
CA 100/140
12 M16 x 65 10.9 250 185 Hexagon
CA 210
15 M16 x 80 10.9 250 185 Hexagon
