Hägglunds Compact CA - Lifting Methods

15
Installation and Maintenance Manual, Compact CA

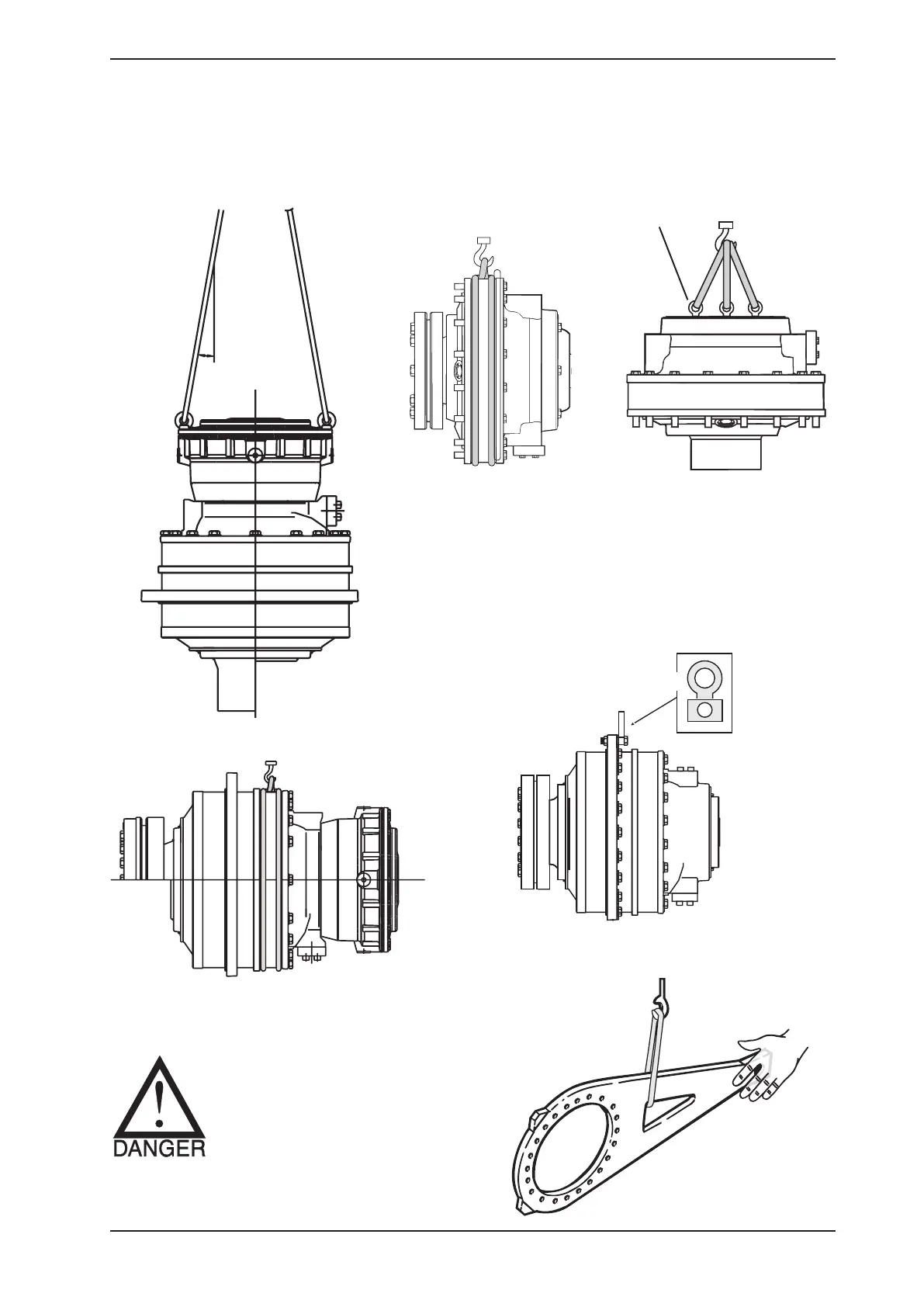

3.1.1 Lifting methods
Lifting the torque arm
Figure 3.5
Figure 3.4a
Always make sure where the centre of gravity
is before any lifting.
Installation
Always make sure where
the centre of gravity is
before any lifting. Never
stand below a hanging mo-
tor or torque arm.
1
Fig 3.4d (CA 210)
Steel eye
with bolt.
Steel eye bolts.
(3 x M12)
Figure 3.4c
Note: The end cover and screws
must be removed before mounting
the steel eye bolts. After the lift;
refit the end cover and screws with
torque 81 Nm (59 lbf
.
ft).
Note: Motor lifted without coupling
fitted, danger of slipping off.
1
Max. 10°
Figure 3.4b
