Hägglunds Compact CA - Mounting the Reaction Point

28
Installation and Maintenance Manual, Compact CA
x
10
± °25
3.1.6 Mounting the reaction point
Make sure that the foundation
can withstand the forces from
the torque arm.

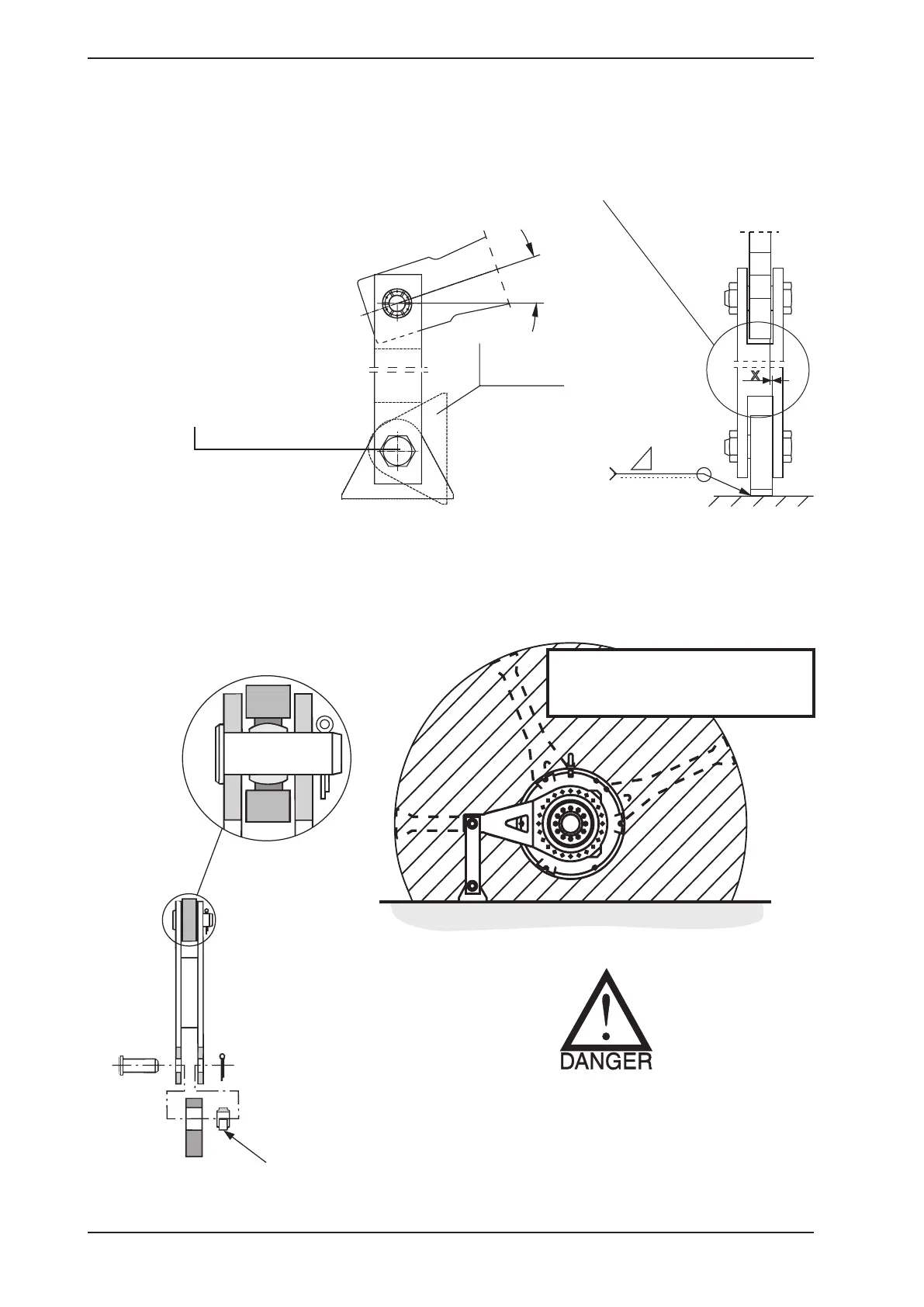

Figure 3.21
Figure 3.20 Mounting of pivoted attachment
x = ±2 mm (0.079) misalignment in installation.
x ≤ ±15 mm (0.59) movement when in use.
Bearing fitted
with Loctite 601
Installation
Figure 3.22
Alternative
position
Steel:
EN 10113S355N
DIN St E39
BS 4360 Grade 50 C
DANGER ZONE
In case of failure of
torque arm installation
Note: The toggle bearing must
be dismounted during welding.
Protected against corrosion, after welding.
