Installation and Maintenance Manual, Compact CA
Table 3.5
Lifting straps must be
chosen with reliable
safety margin over the
total weight of the lifted
object.
Table 3.6a
Figure 3.6
Figure 3.7

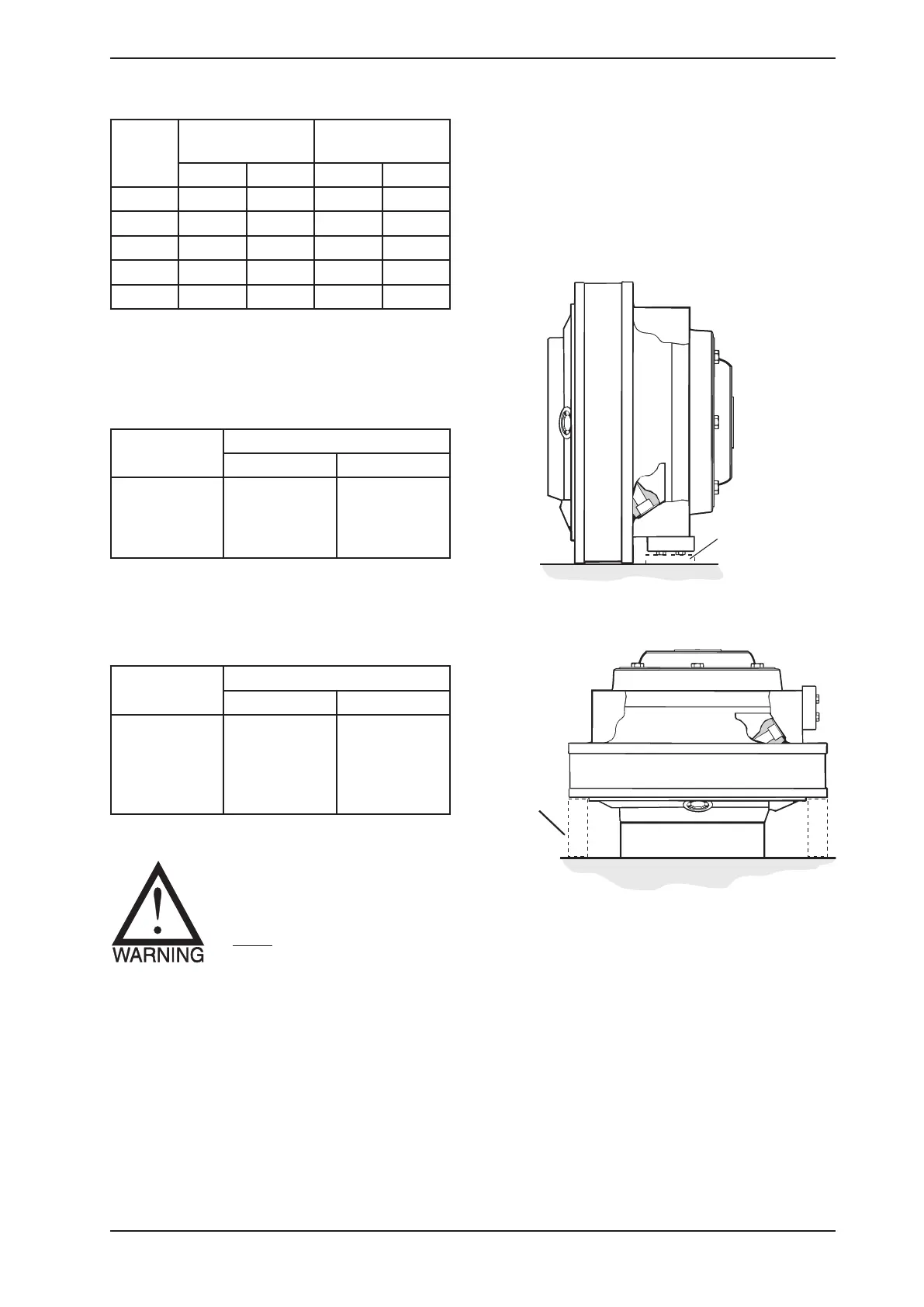

When the motor is placed on a flat surface
such as a floor, it must stand either on its outer
diameter or on the suitably protected end face
of the hollow shaft (see figure 3.6 and 3.7).
NOTE:
Standing the motor on a flat surface
Installation
The motor must not be placed on the end face
of the hollow shaft when the coupling is fitted,
since this may cause damage to the coupling.
When in storage, the motor must always be
placed on the end face to the hollow shaft. It
is also advisable to provide supports at the
mounting surface of the motor; see figure 3.7.
Support
Support
Motor
Motor with shaft
coupling
Motor with
splines
kg lb kg lb
CA 50
203 447 175 385
CA 70
232 510 205 451
CA 100
310 682 265 583
CA 140
347 763 305 671
CA 210
456 1003 395 869
Torque arm
Weight
kg lb
TCA 5
TCA 7
TCA 10
TCA 14
21
24
75
65
46
53
165
143
Brake
Weight
kg lb
MDA 5-10
MDA 14-21
BICA 13
BICA 24
BICA 37
100
230
87
175
210
220
506
191
385
462
Table 3.6b
