36
Installation and Maintenance Manual, Compact CA

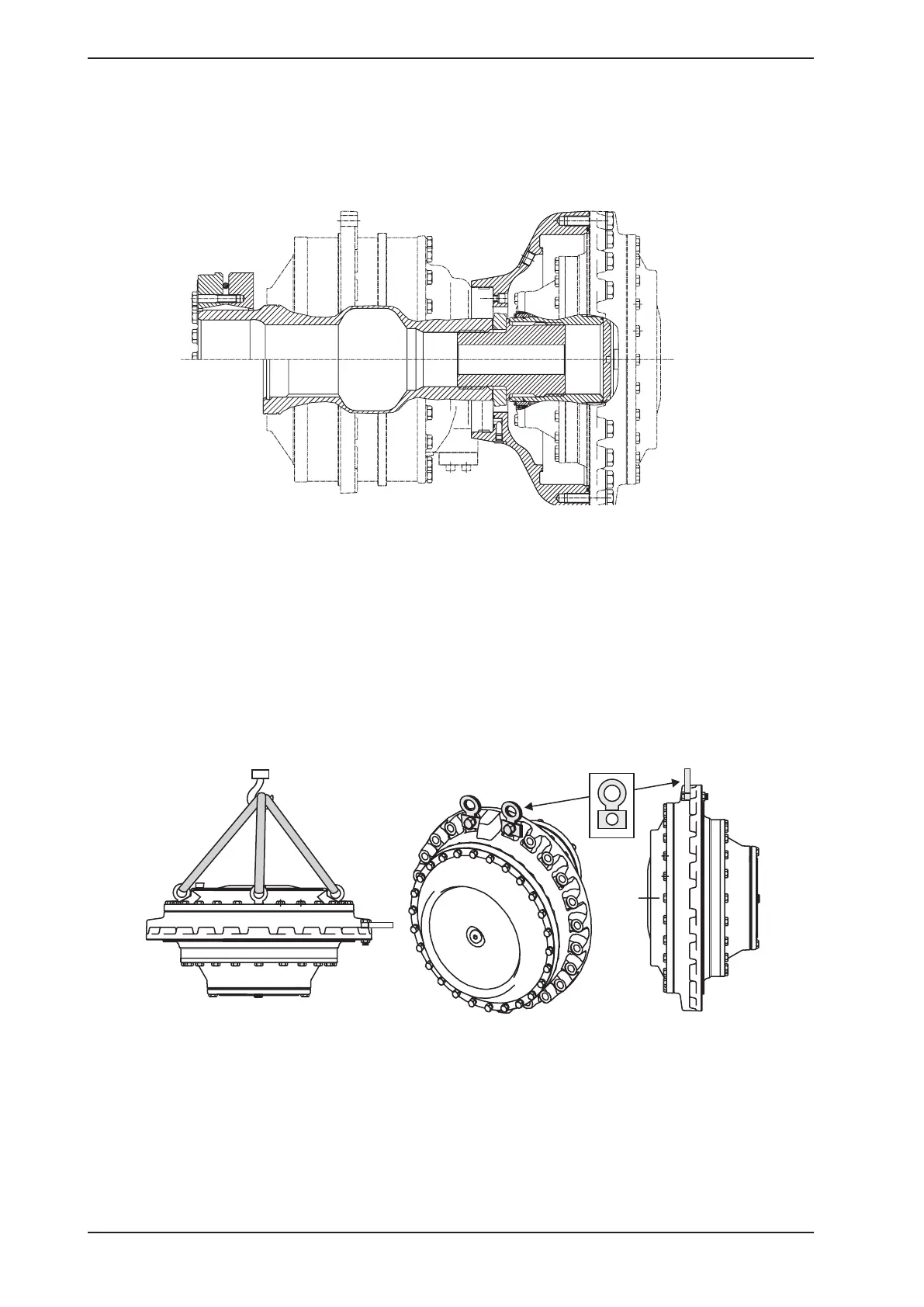

Lifting the MDA 14 & 21 brake
Steel eye (x2)
with bolt
Steel eye
bolts (x3)
Figure 3.33
Figure 3.32c
CA motor type B and tandem kit 278 2339-606 must be used.
Fill splines and shaft with hydraulic oil.
Tandem mounting of motor CA and brake MDA 14
Installation
