Step 3 - Installation of the Outdoor Unit (Cont.)
Step 4 - Final Check

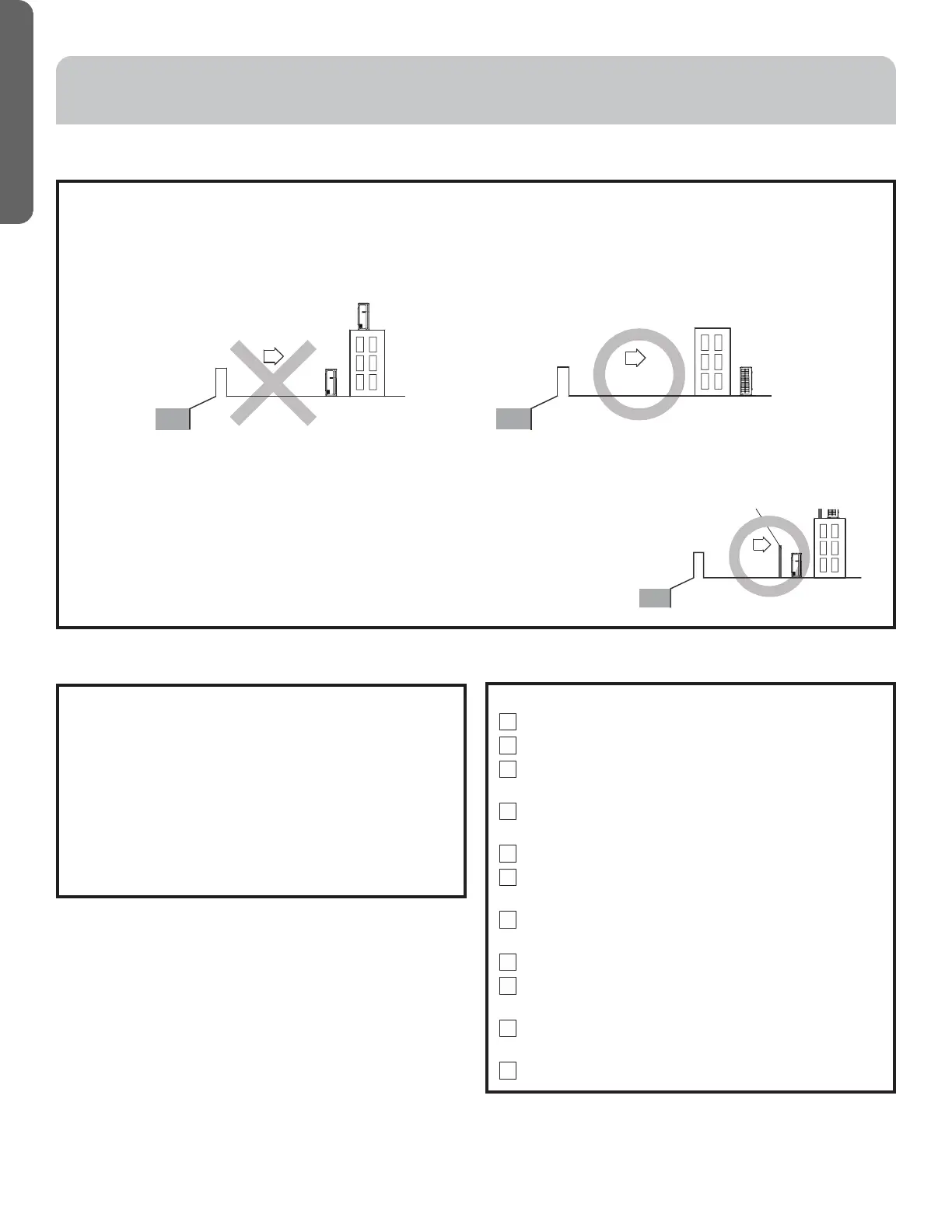

• The outdoor unit should be installed at least ½ mile away from the salt water, including seacoasts and inland
waterways. If the unit installed from ½ mile to 5 miles away from the salt water, including seacoasts and inland
waterways, please follow the installation instruction below.
• Install the outdoor unit in a place (such as near buildings etc.) where it can be protected from sea breeze which can
damage the outdoor unit.
• If you cannot avoid installing the outdoor unit by the seashore, construct a protection wall around it to block the sea
breeze.
• A protection wall should be constructed with a solid material to block the sea
breeze. The height and the width of the wall should be 1.5 times larger than the
size of the outdoor unit. Also, allow at least 28“ (700mm) between the protection
wall and the outdoor unit for air circulation to ventilate.
• Install the outdoor unit in a place where water can drain freely.
• If the above conditions cannot be met, contact Haier for assistance.
Check Items for Test Run
No gas leak from linesets?
Are the linesets insulated properly?
Are the connecting wirings of indoor and outdoor
firmly inserted to the terminal block?
Is the connecting wiring of indoor and outdoor
fixed?
Is condensate draining correctly?
Is the ground wire securely connected? Is the
indoor unit securely fixed?
Is power source voltage correct according to local
code?
Is there any odd noise?
Does the cooling temperature drop between
20-30°F?
Does the heating temperature raise between
35-40°F?
Is the room temperature display accurate?
Explaining Operation To the End User
• Using the User Manual, explain to the user how to
use the air conditioner/heat pump, (the remote
controller, adding/removing the air filters, placing
or removing the remote controller from the remote
control holder, cleaning methods, precautions for
operation, etc.)
• Review precautions for operation.
• Recommend that the user read the Operating
Instructions carefully.
ODU
ODU
Sea breeze
Sea
ODU
Sea breeze
Sea
Sea breeze
Sea
ODU
INSTALLATION INSTRUCTIONS
