Haier HSU-18HEA03/R2(DB)-I User Manual

HSU-18HEA03/R2(DB)-I Removal Procedure
Domestic Air Conditioner
89

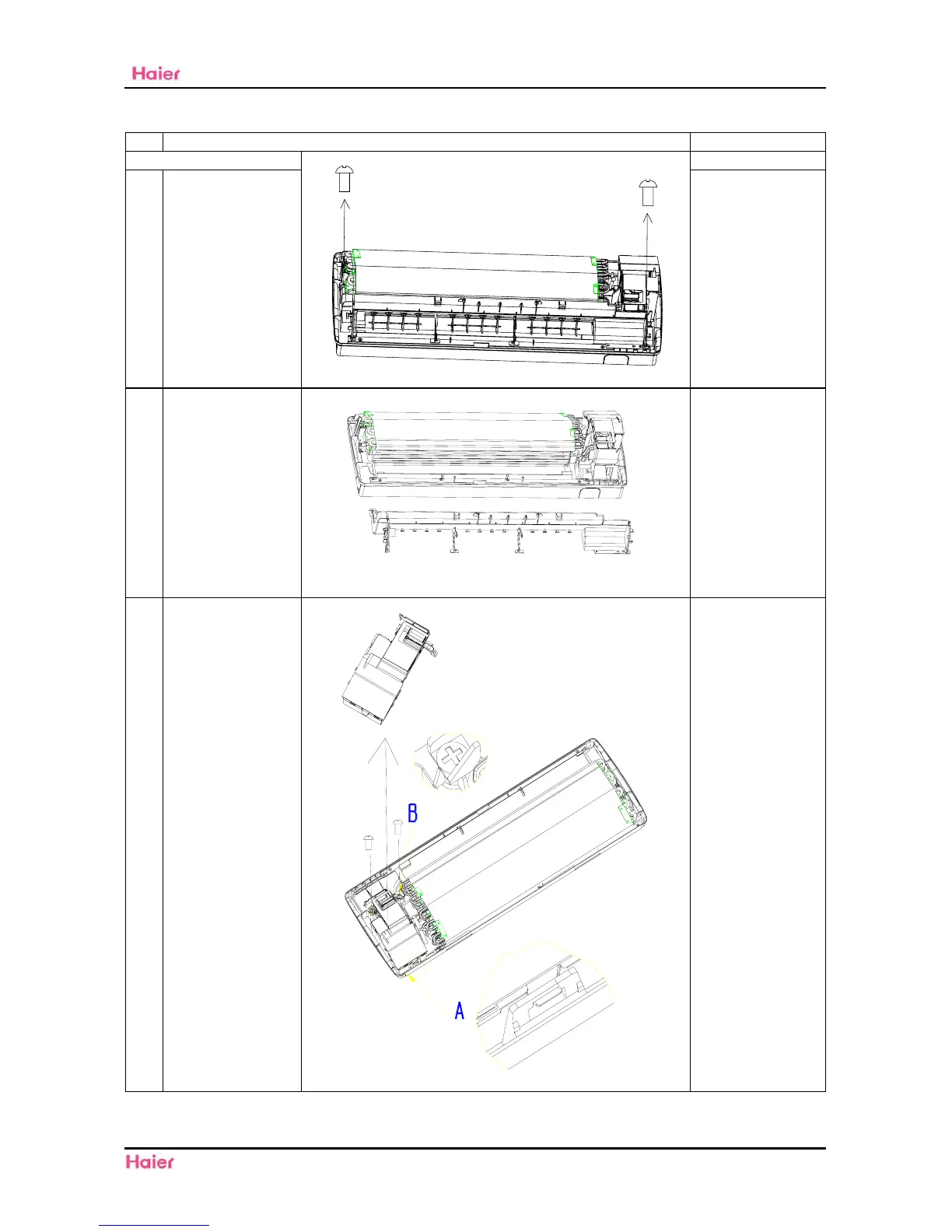

9.1.6 Removal of Fan Drain pan and Electrical Box
Step Procedure Points
1
Loosen the
2 screws.
2
Pull out the
drain pan.
3
Loosen the screw of
the drip proof plate.
Lift and remove
the electrical box.

Discharge the
static electricity
from your body
before touching the
electrical parts like
signal receiver PCB.

It may cause the
malfunction of PCB.
