HSU-18HEA03/R2(DB)-I Removal Procedure
Domestic Air Conditioner
90

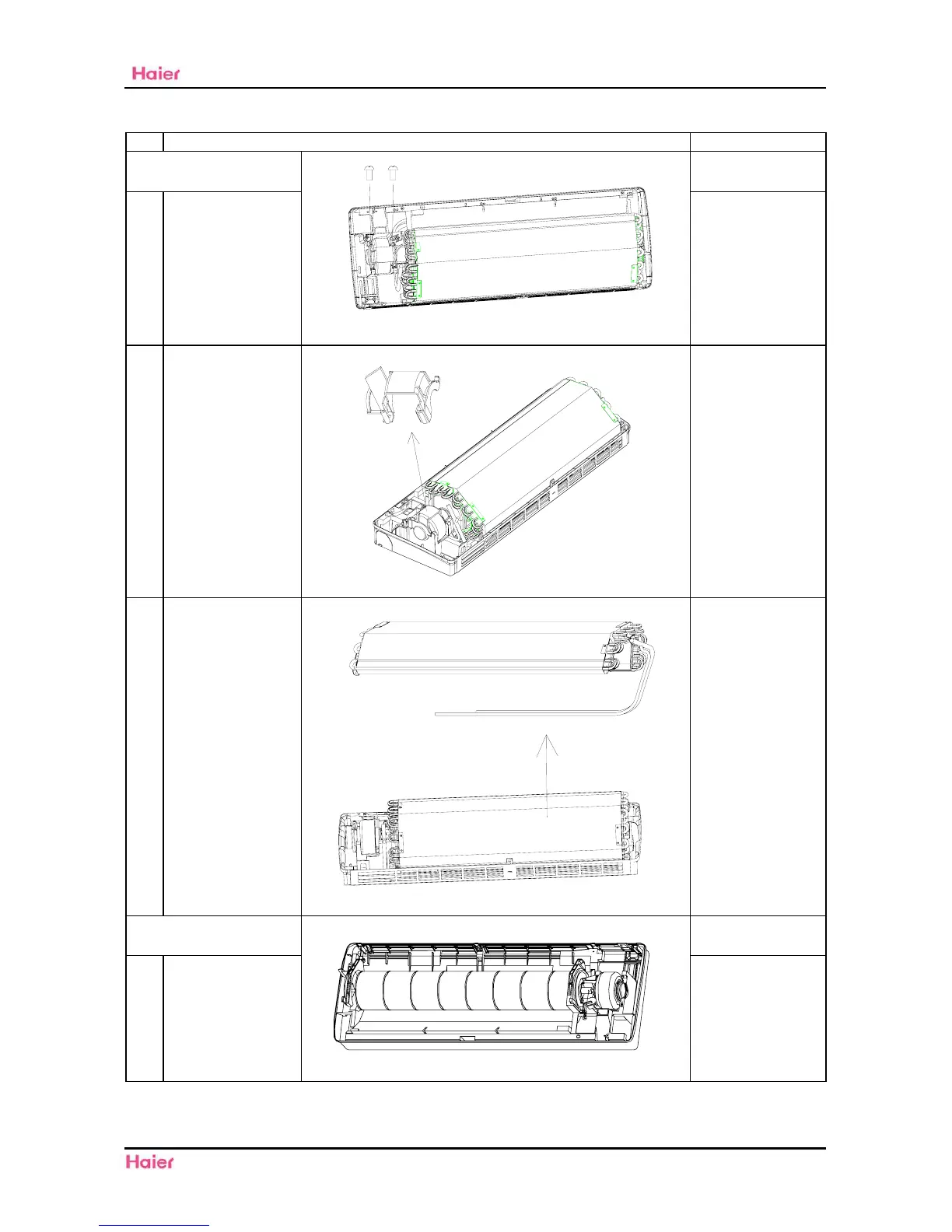

9.1.7 Removal of Fan Motor and Heat Exchanger
Step Procedure Points
1. Remove the
right side plate.
1 Loosen the
2 screws.
2 Remove the
¿[LQJSODWH
3 Lift up the
evaporator
Be careful not to
FXW\RXU¿QJHU
E\WKH¿QVRIWKH
evaporator.
3. Remove the fan.
1 Loosen the
2 screws.
