Haier HSU12 - 9. Removal Procedure; 9.1 Indoor Unit Removal

Removal Procedure
9. Removal Procedure

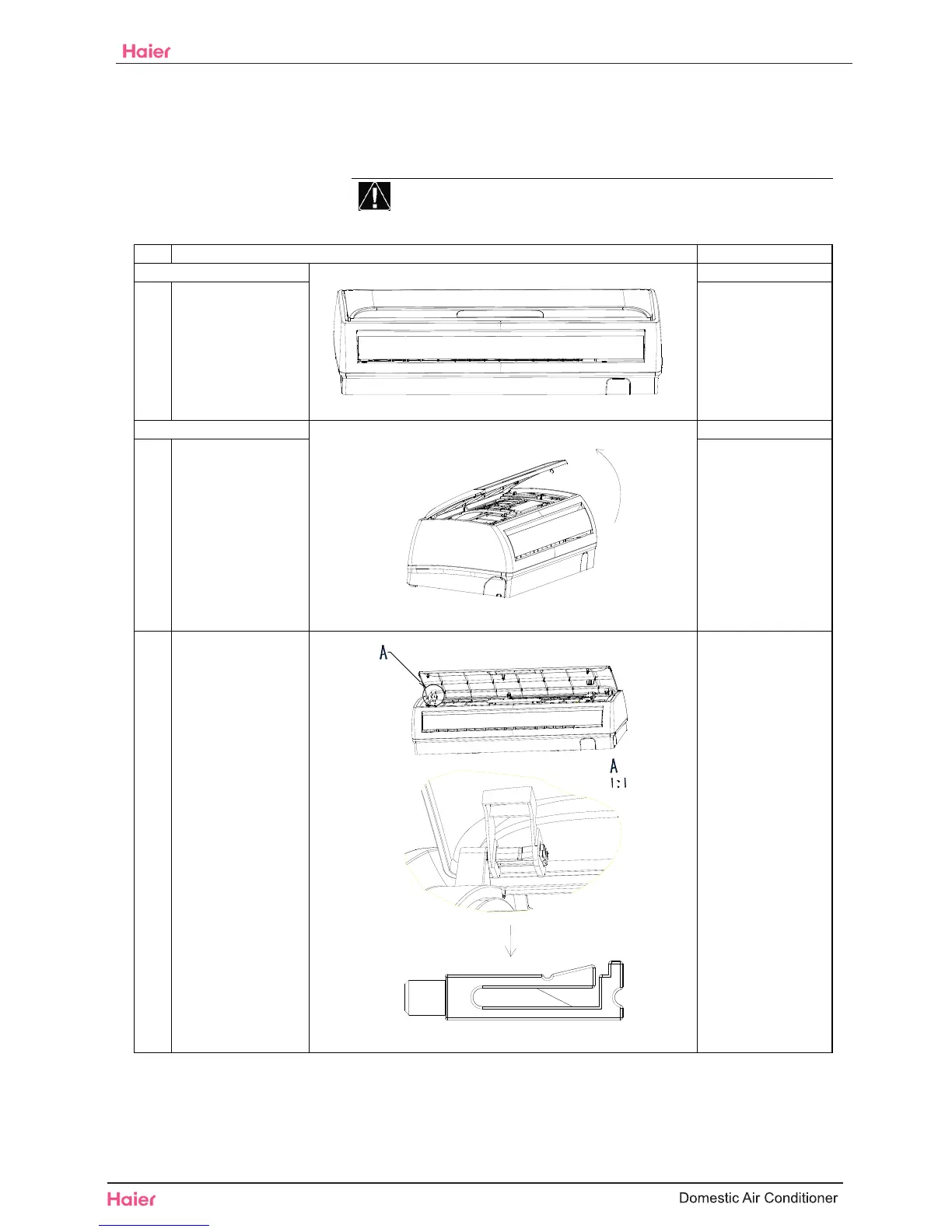

9.1.1 Removal of Front Panel
Procedure Warning Be sure to wait 10 minutes or more after turning off all
power supplies before disassembling work.
stnioPerudecorPpetS
1. Features
2. Remove the front panel
1 Hold the front
panel by the tabs
on the both sides
and lift it until it
stops with a click.
2 Open the front
panel to the
horizontal position.
Release the
both sides pivots
and remove the
front panel.
When assembling,
align the right
and left axes with
grooves in turn
and insert them
to the end.
9.1 For 12K Indoor unit
HSU12/18VHJ(DB)
