21.5″&23.6″ LCD TV Haier LE22D3380&LE24D33800
21

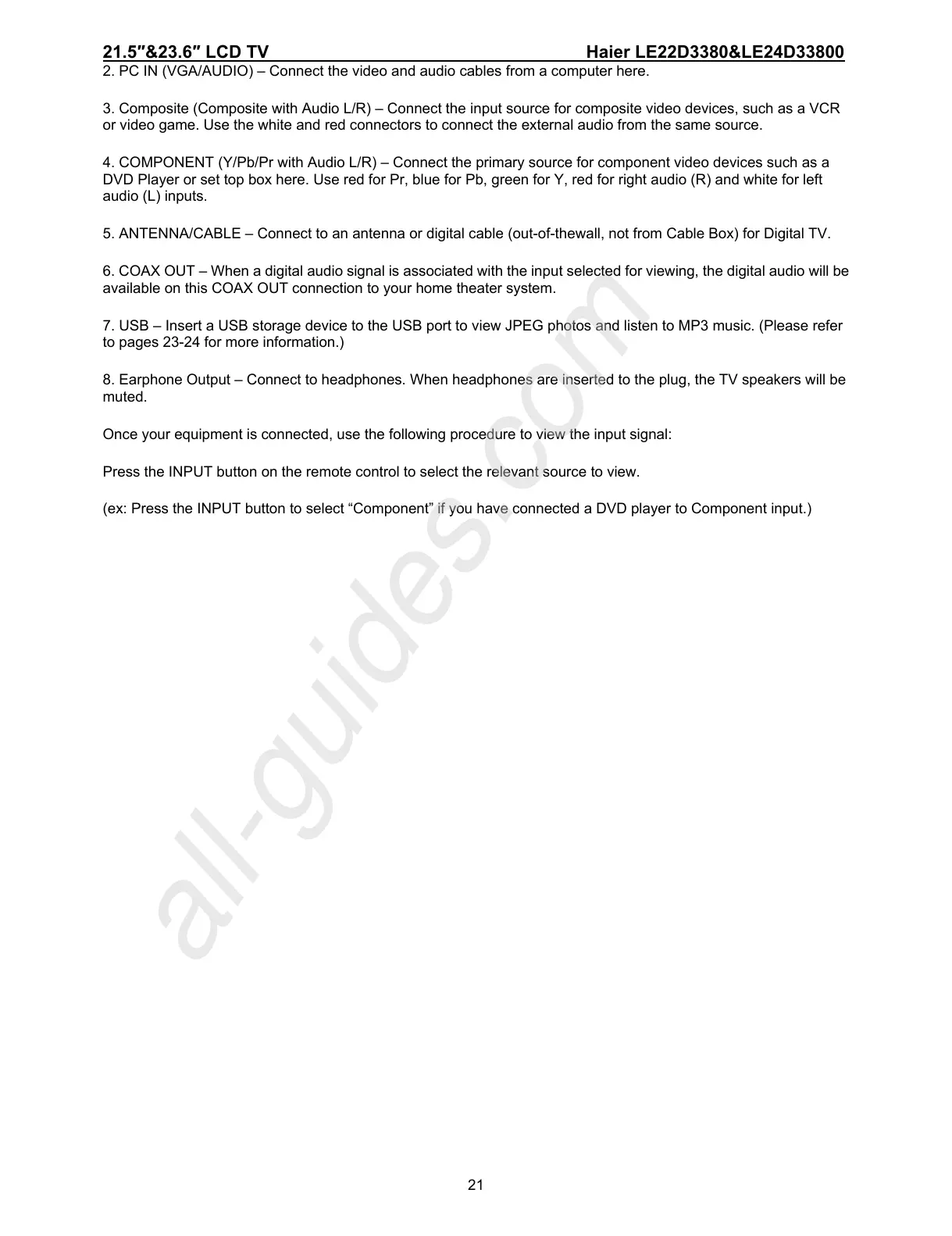

2. PC IN (VGA/AUDIO) – Connect the video and audio cables from a computer here.
3. Composite (Composite with Audio L/R) – Connect the input source for composite video devices, such as a VCR
or video game. Use the white and red connectors to connect the external audio from the same source.
4. COMPONENT (Y/Pb/Pr with Audio L/R) – Connect the primary source for component video devices such as a
DVD Player or set top box here. Use red for Pr, blue for Pb, green for Y, red for right audio (R) and white for left
audio (L) inputs.
5. ANTENNA/CABLE – Connect to an antenna or digital cable (out-of-thewall, not from Cable Box) for Digital TV.
6. COAX OUT – When a digital audio signal is associated with the input selected for viewing, the digital audio will be
available on this COAX OUT connection to your home theater system.
7. USB – Insert a USB storage device to the USB port to view JPEG photos and listen to MP3 music. (Please refer
to pages 23-24 for more information.)
8. Earphone Output – Connect to headphones. When headphones are inserted to the plug, the TV speakers will be
muted.
Once your equipment is connected, use the following procedure to view the input signal:
Press the INPUT button on the remote control to select the relevant source to view.
(ex: Press the INPUT button to select “Component” if you have connected a DVD player to Component input.)
To Next Page
