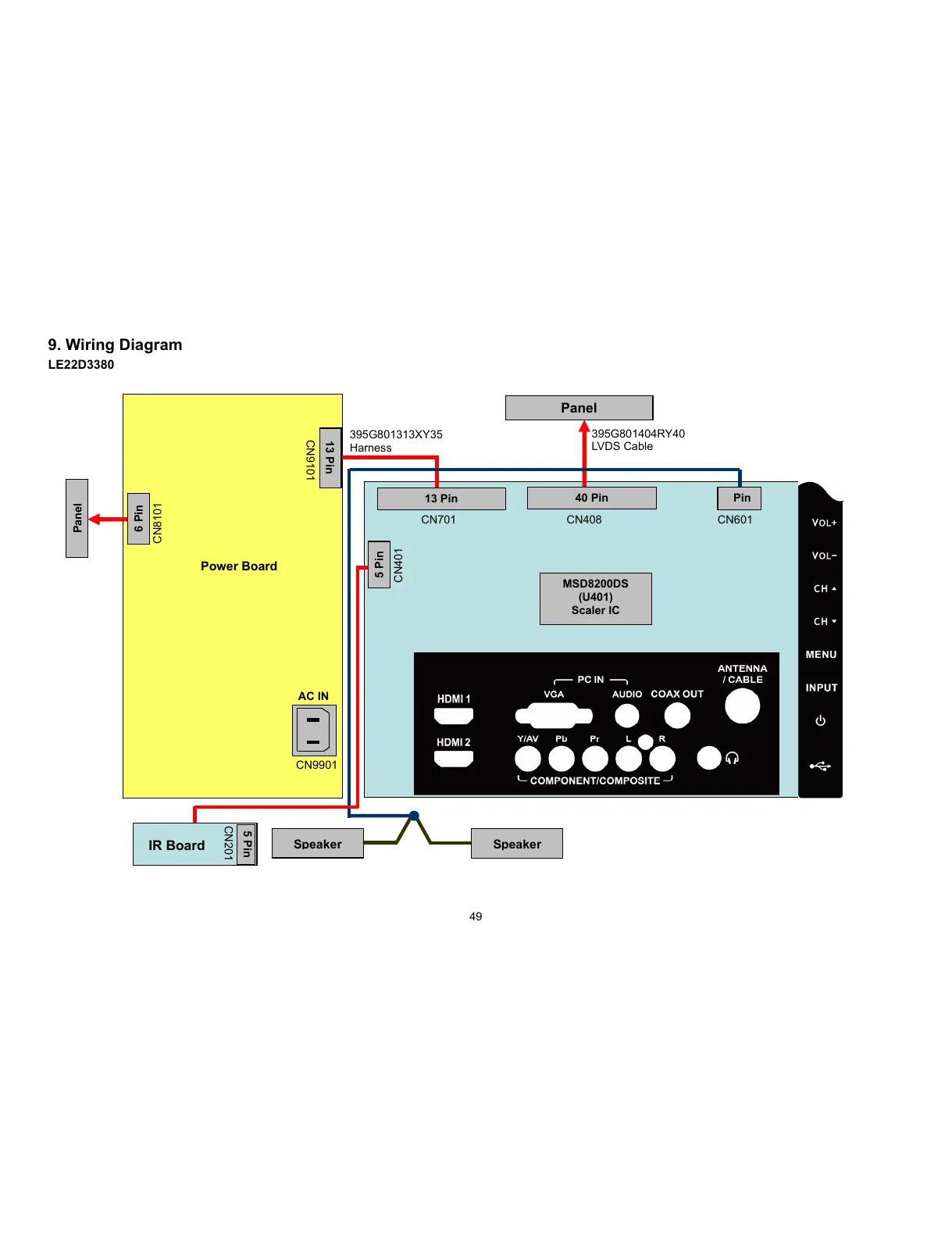

9. Wiring Diagram
LE22D3380
S
p
eake
r
S
p
eake
r
395G801404RY40
LVDS Cable
Panel
40 Pin
395G801313XY35
Harness
Power Board
IR Board
5 Pin
5 Pin
MSD8200DS
(U401)
Scaler IC
CN401
AC IN
CN9901
CN701
CN9101
6 Pin
CN601 CN408
Pin
CN8101
13 Pin
CN201
13 Pin
Panel
