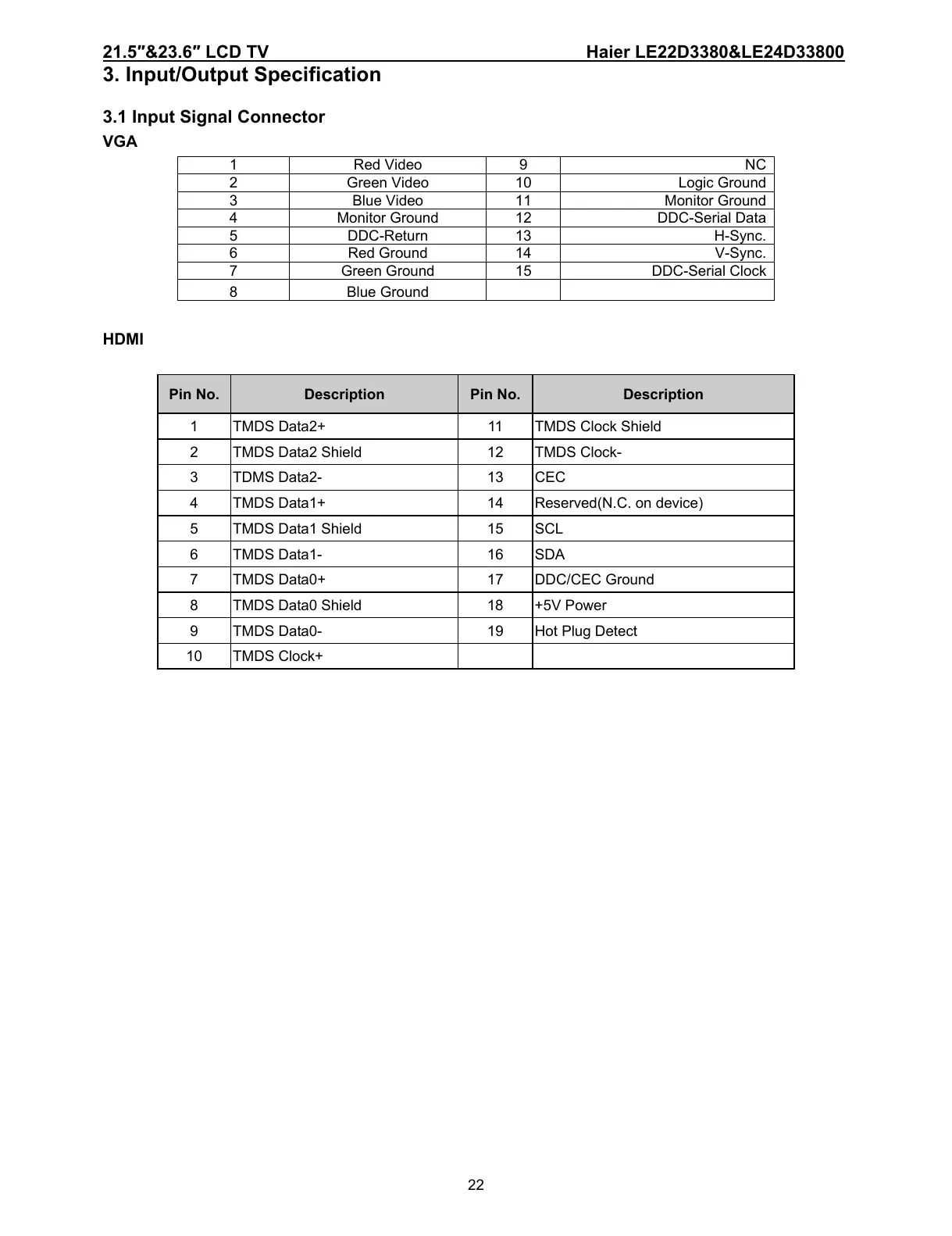

21.5&23.6 LCD TV Haier LE22D3380&LE24D33800
22
3. Input/Output Specification
3.1 Input Signal Connector
VGA
1 Red Video 9 NC
2 Green Video 10 Logic Ground
3 Blue Video 11 Monitor Ground
4 Monitor Ground 12 DDC-Serial Data
5 DDC-Return 13 H-Sync.
6 Red Ground 14 V-Sync.
7 Green Ground 15 DDC-Serial Clock
8 Blue Ground
HDMI
Pin No. Description Pin No. Description
1 TMDS Data2+ 11 TMDS Clock Shield
2 TMDS Data2 Shield 12 TMDS Clock-
3 TDMS Data2- 13 CEC
4 TMDS Data1+ 14 Reserved(N.C. on device)
5 TMDS Data1 Shield 15 SCL
6 TMDS Data1- 16 SDA
7 TMDS Data0+ 17 DDC/CEC Ground
8 TMDS Data0 Shield 18 +5V Power
9 TMDS Data0- 19 Hot Plug Detect
10 TMDS Clock+
