21.5″&23.6″ LCD TV Haier LE22D3380&LE24D33800
33

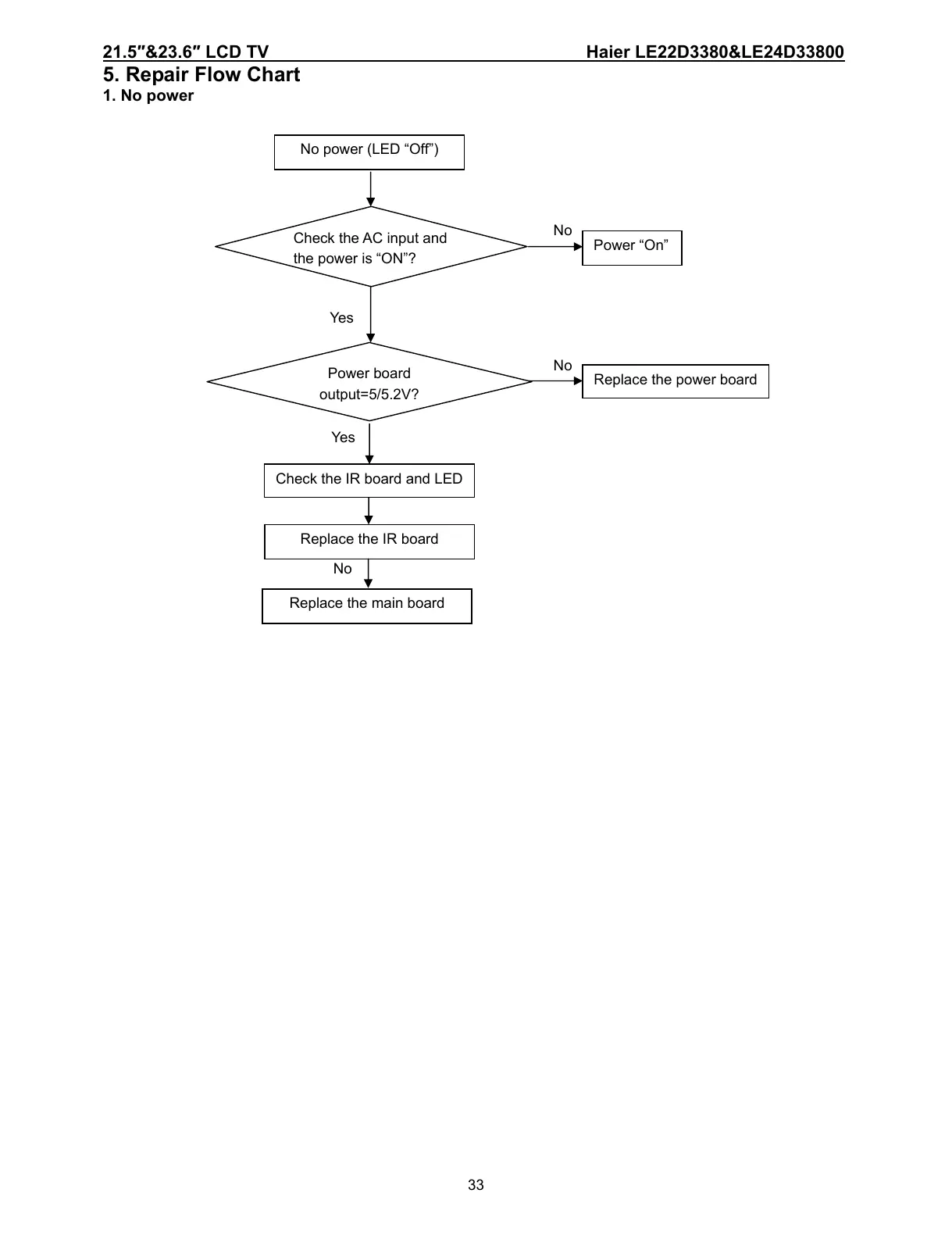

5. Repair Flow Chart
1. No power
No power (LED “Off”)
Check the AC input and
the
p
ower is “ON”?
Power “On”
Check the IR board and LED
Replace the IR board
Replace the main board
Power board
out
p
ut=5/5.2V?
Replace the power board
No
Yes
No
Yes
No
