21.5″&23.6″ LCD TV Haier LE22D3380&LE24D33800
34

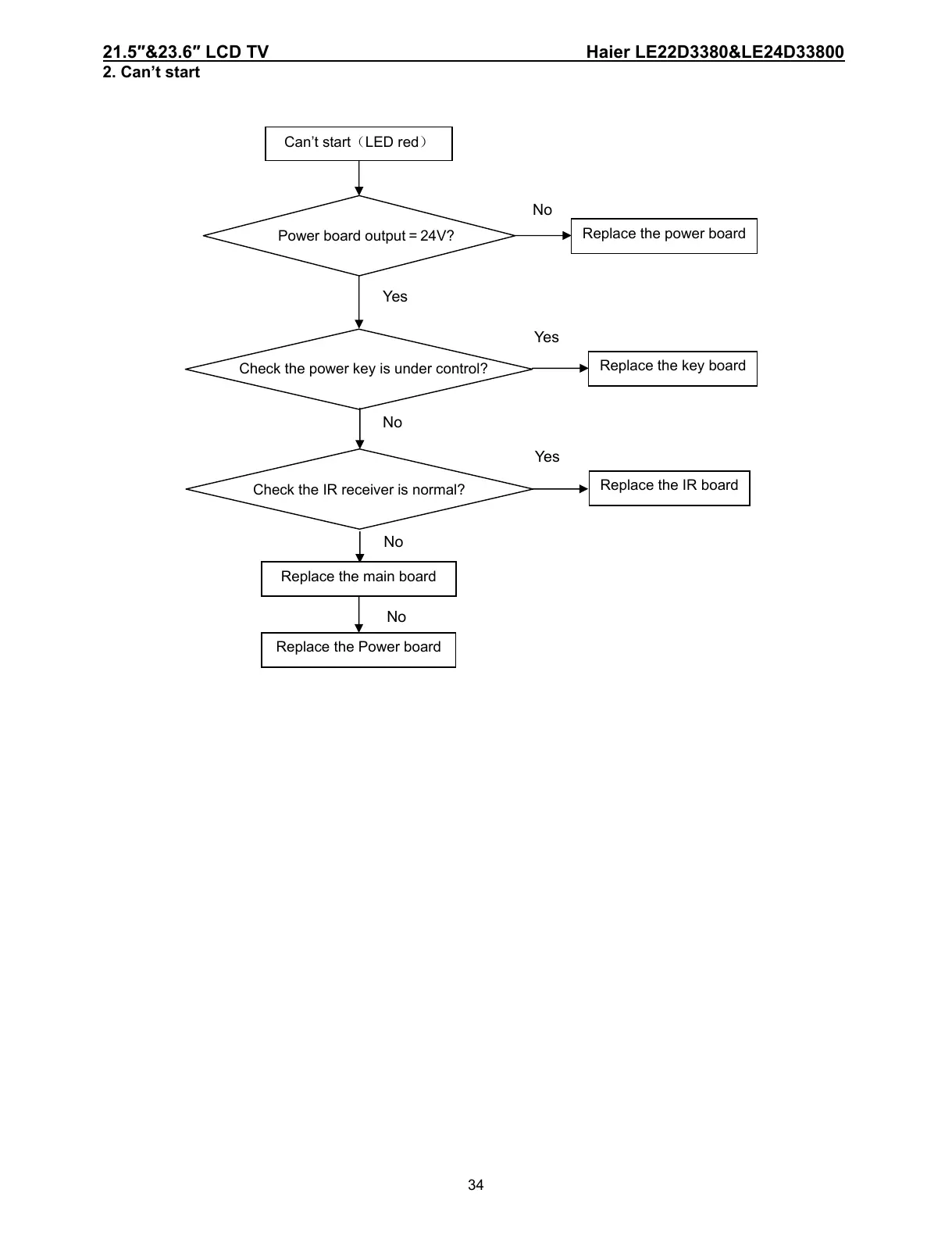

2. Can’t start
Can’t start（LED red）
Replace the main board
Replace the Power board
No
Yes
No
Yes
No
No
Power board output＝24V?
Check the power key is under control?
Check the IR receiver is normal?
Replace the power board
Replace the key board
Yes
Replace the IR board
