21.5″&23.6″ LCD TV Haier LE22D3380&LE24D33800
35

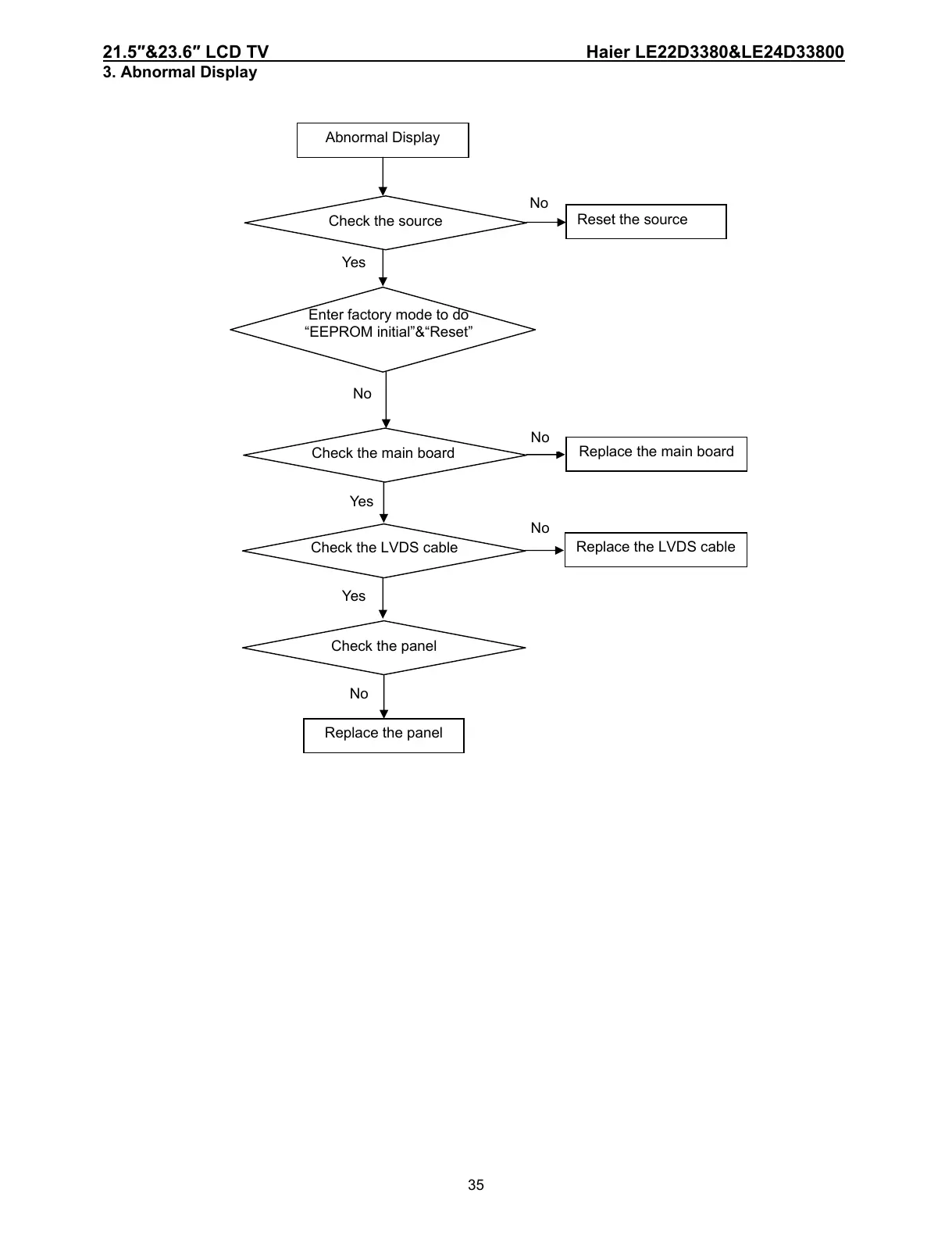

3. Abnormal Display
Abnormal Display
Reset the source
Check the source
Check the panel
Replace the main board
Replace the LVDS cable
Replace the panel
No
No
No
Yes
Yes
Yes
No
No
Check the main board
Enter factory mode to do
“EEPROM initial”&“Reset”
Check the LVDS cable
