21.5″&23.6″ LCD TV Haier LE22D3380&LE24D33800
4

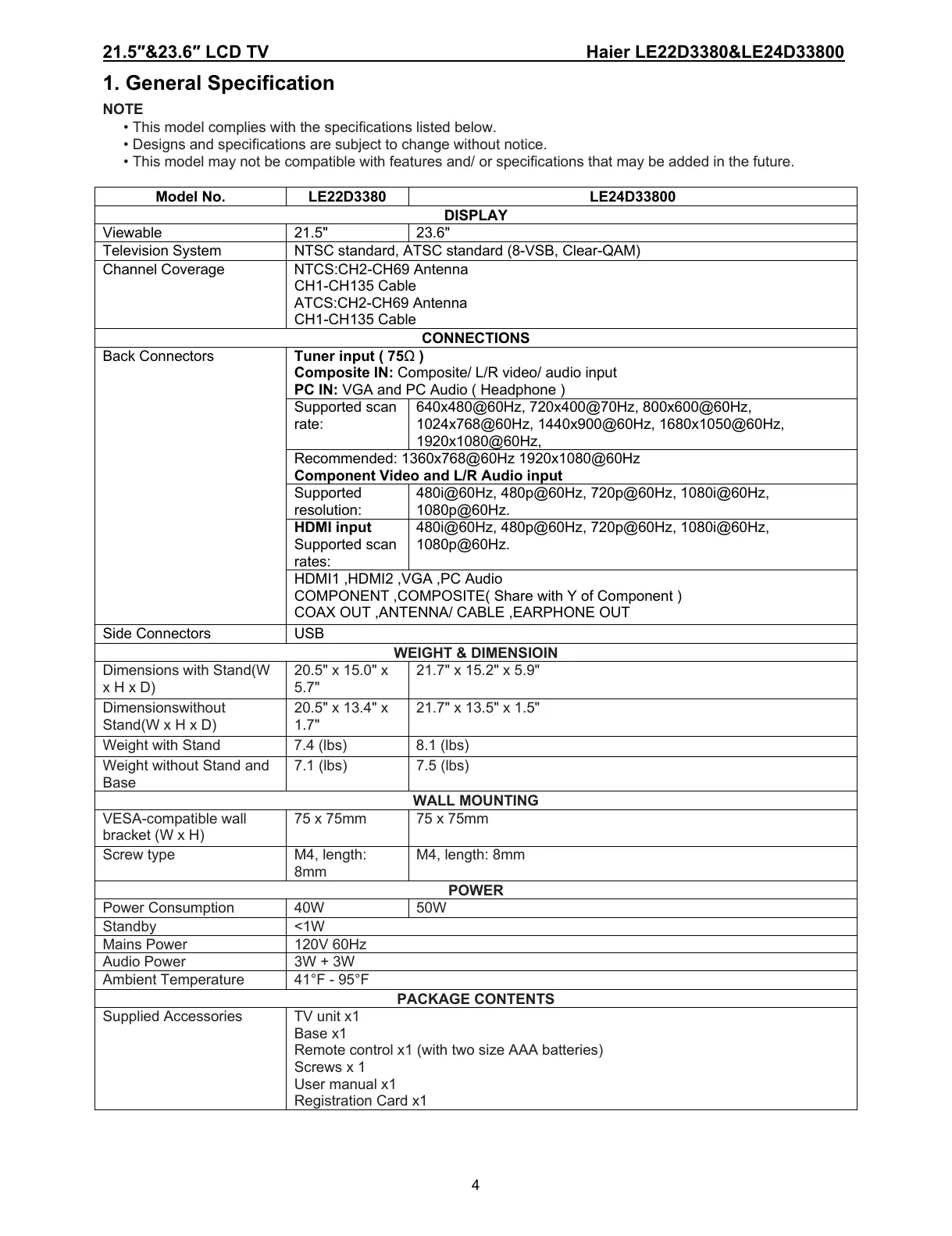

1. General Specification
NOTE
• This model complies with the specifications listed below.
• Designs and specifications are subject to change without notice.
• This model may not be compatible with features and/ or specifications that may be added in the future.
Model No. LE22D3380 LE24D33800
DISPLAY
Viewable 21.5" 23.6"
Television System NTSC standard, ATSC standard (8-VSB, Clear-QAM)
Channel Coverage NTCS:CH2-CH69 Antenna
CH1-CH135 Cable
ATCS:CH2-CH69 Antenna
CH1-CH135 Cable
CONNECTIONS
Back Connectors Tuner input ( 75Ω )
Composite IN: Composite/ L/R video/ audio input
PC IN: VGA and PC Audio ( Headphone )
Supported scan
rate:
640x480@60Hz, 720x400@70Hz, 800x600@60Hz,
1024x768@60Hz, 1440x900@60Hz, 1680x1050@60Hz,
1920x1080@60Hz,
Recommended: 1360x768@60Hz 1920x1080@60Hz
Component Video and L/R Audio input
Supported
resolution:
480i@60Hz, 480p@60Hz, 720p@60Hz, 1080i@60Hz,
1080p@60Hz.
HDMI input
Supported scan
rates:
480i@60Hz, 480p@60Hz, 720p@60Hz, 1080i@60Hz,
1080p@60Hz.
HDMI1 ,HDMI2 ,VGA ,PC Audio
COMPONENT ,COMPOSITE( Share with Y of Component )
COAX OUT ,ANTENNA/ CABLE ,EARPHONE OUT
Side Connectors USB
WEIGHT & DIMENSIOIN
Dimensions with Stand(W
x H x D)
20.5" x 15.0" x
5.7"
21.7" x 15.2" x 5.9"
Dimensionswithout
Stand(W x H x D)
20.5" x 13.4" x
1.7"
21.7" x 13.5" x 1.5"
Weight with Stand 7.4 (lbs) 8.1 (lbs)
Weight without Stand and
Base
7.1 (lbs) 7.5 (lbs)
WALL MOUNTING
VESA-compatible wall
bracket (W x H)
75 x 75mm 75 x 75mm
Screw type M4, length:
8mm
M4, length: 8mm
POWER
Power Consumption 40W 50W
Standby <1W
Mains Power 120V 60Hz
Audio Power 3W + 3W
Ambient Temperature 41°F - 95°F
PACKAGE CONTENTS
Supplied Accessories TV unit x1
Base x1
Remote control x1 (with two size AAA batteries)
Screws x 1
User manual x1
Registration Card x1
