21.5″&23.6″ LCD TV Haier LE22D3380&LE24D33800
23

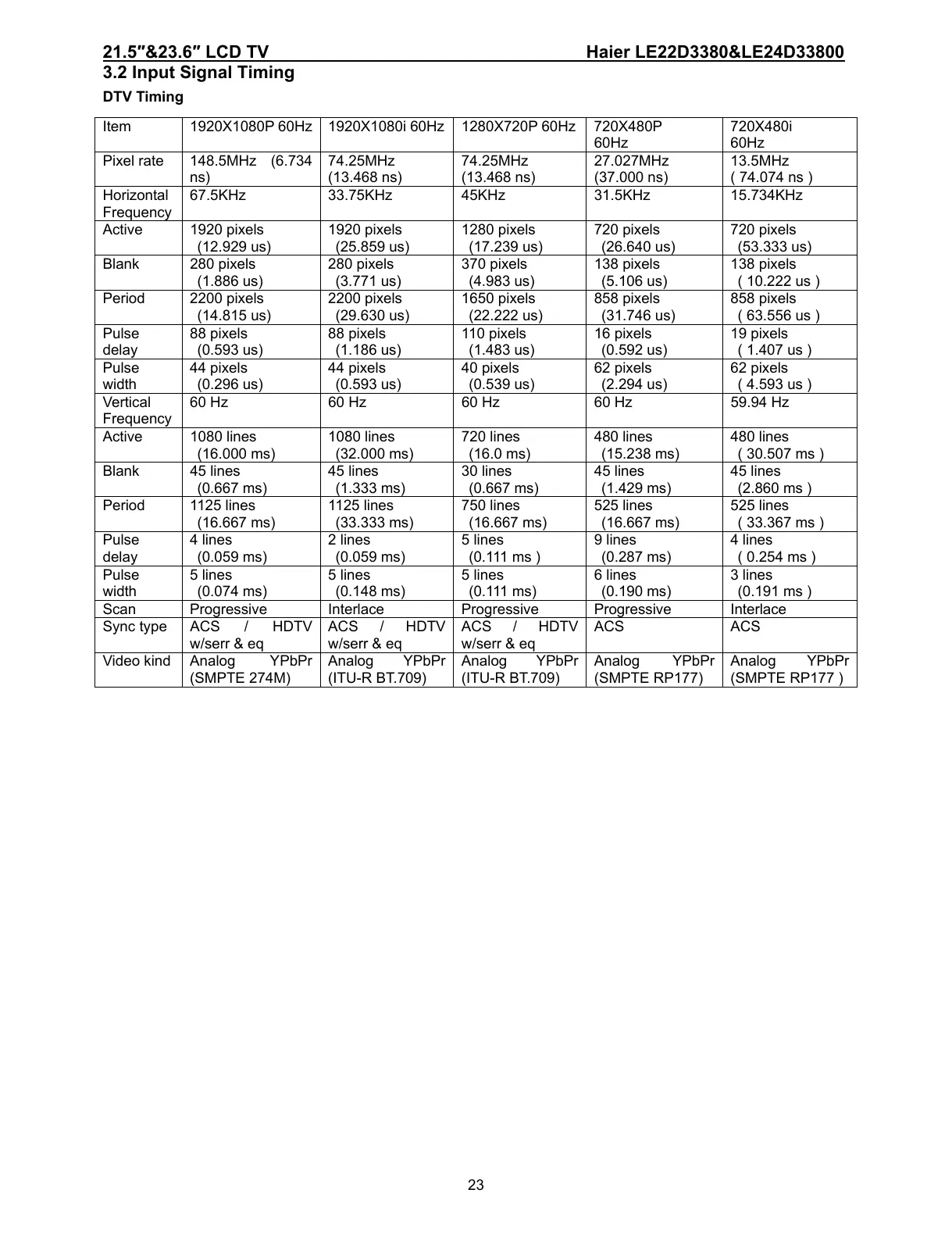

3.2 Input Signal Timing
DTV Timing
Item 1920X1080P 60Hz 1920X1080i 60Hz 1280X720P 60Hz 720X480P
60Hz
720X480i
60Hz
Pixel rate 148.5MHz (6.734
ns)
74.25MHz
(13.468 ns)
74.25MHz
(13.468 ns)
27.027MHz
(37.000 ns)
13.5MHz
( 74.074 ns )
Horizontal
Frequency
67.5KHz 33.75KHz 45KHz 31.5KHz 15.734KHz
Active 1920 pixels
(12.929 us)
1920 pixels
(25.859 us)
1280 pixels
(17.239 us)
720 pixels
(26.640 us)
720 pixels
(53.333 us)
Blank 280 pixels
(1.886 us)
280 pixels
(3.771 us)
370 pixels
(4.983 us)
138 pixels
(5.106 us)
138 pixels
( 10.222 us )
Period 2200 pixels
(14.815 us)
2200 pixels
(29.630 us)
1650 pixels
(22.222 us)
858 pixels
(31.746 us)
858 pixels
( 63.556 us )
Pulse
delay
88 pixels
(0.593 us)
88 pixels
(1.186 us)
110 pixels
(1.483 us)
16 pixels
(0.592 us)
19 pixels
( 1.407 us )
Pulse
width
44 pixels
(0.296 us)
44 pixels
(0.593 us)
40 pixels
(0.539 us)
62 pixels
(2.294 us)
62 pixels
( 4.593 us )
Vertical
Frequency
60 Hz 60 Hz 60 Hz 60 Hz 59.94 Hz
Active 1080 lines
(16.000 ms)
1080 lines
(32.000 ms)
720 lines
(16.0 ms)
480 lines
(15.238 ms)
480 lines
( 30.507 ms )
Blank 45 lines
(0.667 ms)
45 lines
(1.333 ms)
30 lines
(0.667 ms)
45 lines
(1.429 ms)
45 lines
(2.860 ms )
Period 1125 lines
(16.667 ms)
1125 lines
(33.333 ms)
750 lines
(16.667 ms)
525 lines
(16.667 ms)
525 lines
( 33.367 ms )
Pulse
delay
4 lines
(0.059 ms)
2 lines
(0.059 ms)
5 lines
(0.111 ms )
9 lines
(0.287 ms)
4 lines
( 0.254 ms )
Pulse
width
5 lines
(0.074 ms)
5 lines
(0.148 ms)
5 lines
(0.111 ms)
6 lines
(0.190 ms)
3 lines
(0.191 ms )
Scan Progressive Interlace Progressive Progressive Interlace
Sync type ACS / HDTV
w/serr & eq
ACS / HDTV
w/serr & eq
ACS / HDTV
w/serr & eq
ACS ACS
Video kind Analog YPbPr
(SMPTE 274M)
Analog YPbPr
(ITU-R BT.709)
Analog YPbPr
(ITU-R BT.709)
Analog YPbPr
(SMPTE RP177)
Analog YPbPr
(SMPTE RP177 )
