Haier LE40D3281 - Chapter 3. Disassemble and Assemble; 3-1. LE40 D3281

Service Manual
Model No.: LE40D3281
Chapter 3. Disassemble and Assemble
3-1. LE40D3281

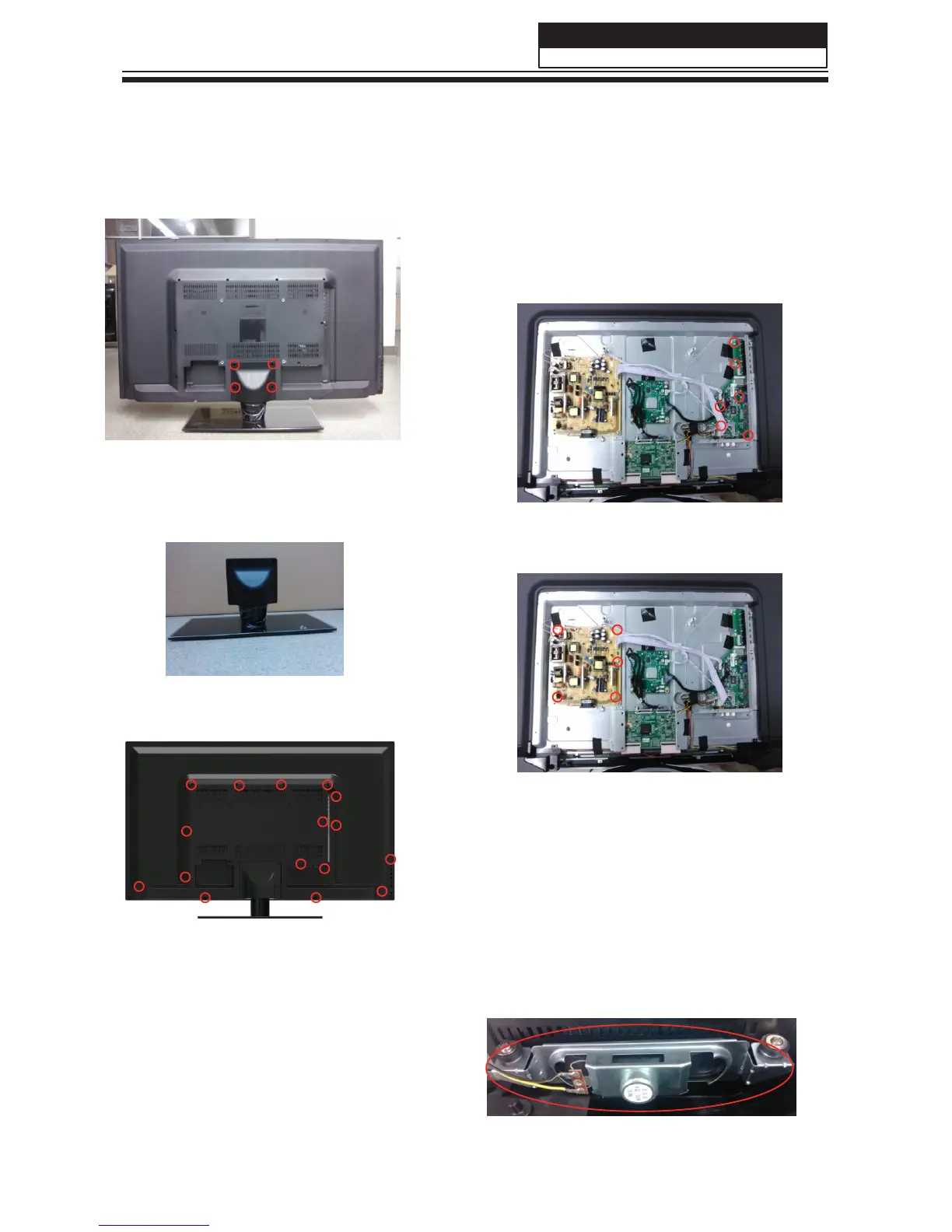

3-1-1. Remove the Stand 3-1-3. Remove the Mainboard
1. Remove the six screws indicated with red
circles.
2. Remove the Mainbord.
1. Lay down the TV set .
2. Remove the four screws from the stand which
in the picture above.
3. Remove the stand.
3-1-4. Remove the Power Supply Module
3-1-2. Remove the Back Cabinet
1. Remove the five screws indicated with
red circles in below picture.
2. Remove the Power Supply Module.
3-1-5. Remove the Speaker
Remove the Speaker indicated by red circle in
below picture.
1.Remove the sixteen screws indicated with red
circles.
2.Flip machine, panel side up.
3.Carefully raise the Front shell from
bottom.
