HAIMA M3 Series User Manual

Dimensions
II-2

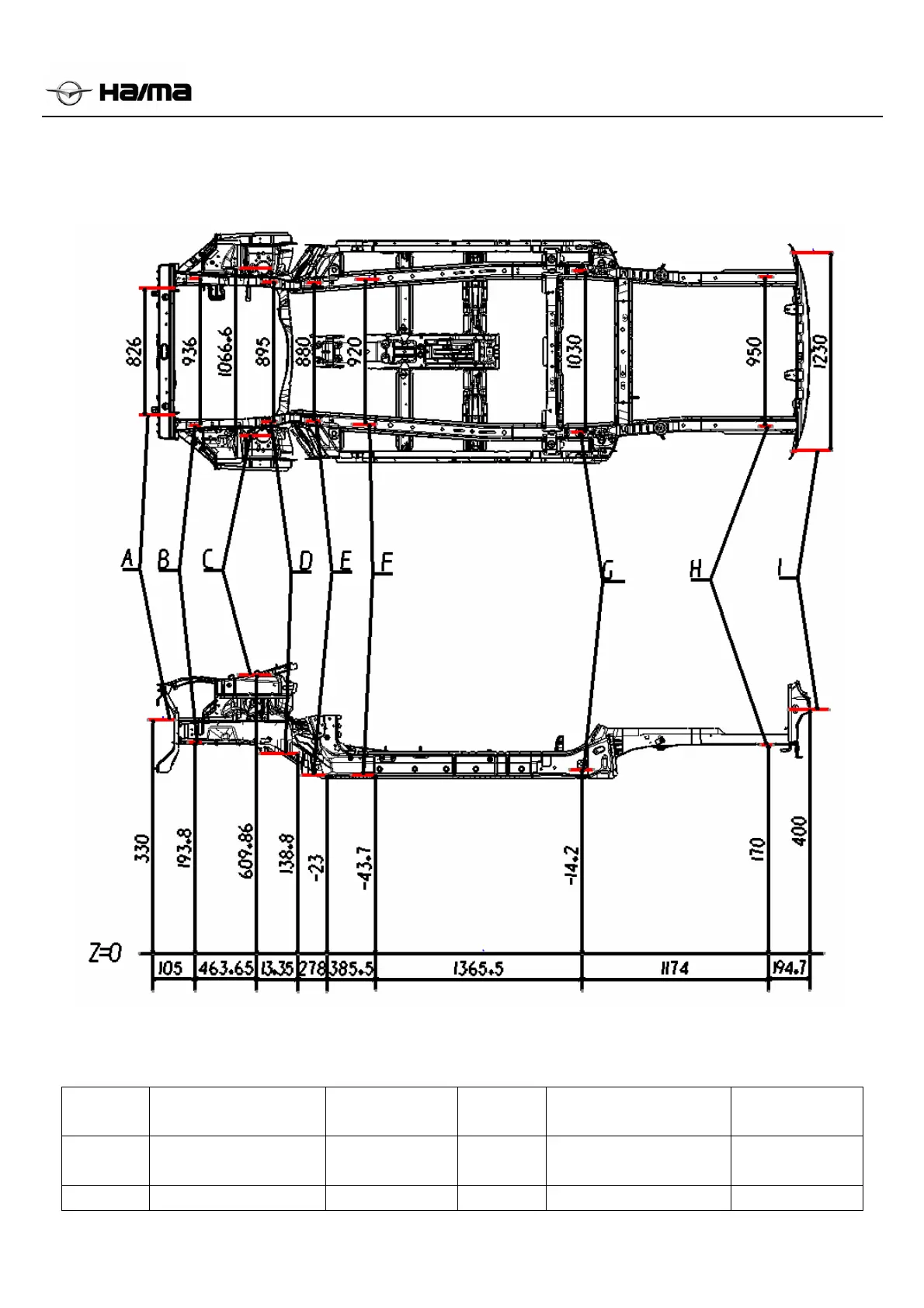

Plane Dimensions
Car Underbody
Z=0, the plane is the lower plane of the parallel longitudinal floor beam, which goes through the rotation
center of rear suspension torsion beam (no-load)
Point
symbol
Name Dimension Point
symbol
Name Dimension
A Datum hole of front
anti-collision beam
Φ9 F Auxiliary datum hole
of front car body
Φ18
B Main datum hole of Φ16 H Main datum hole of Φ16
