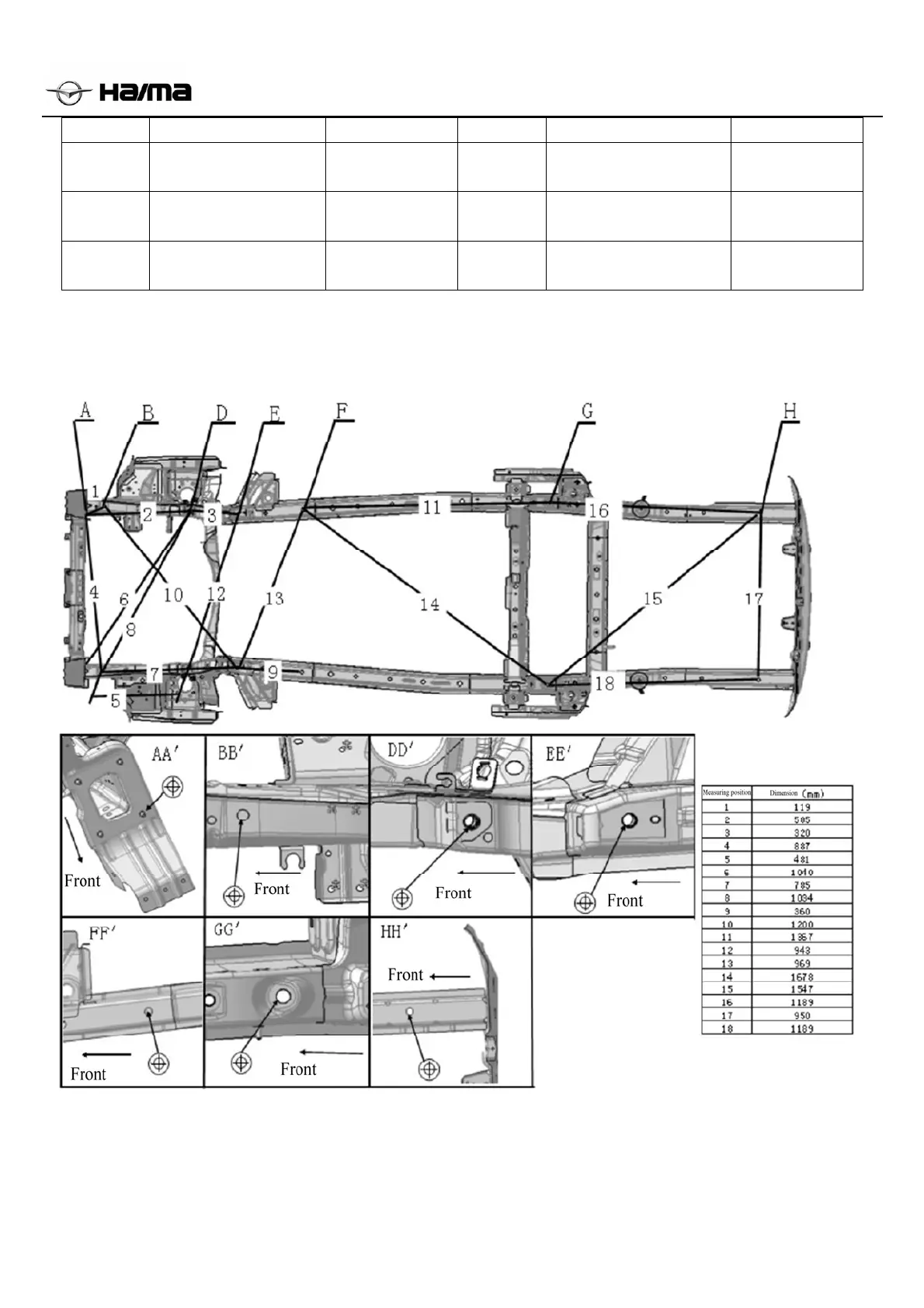

Dimensions
II-3
front car body
rear floor assemb
ly
C Mounting
hole
of
front suspension
Φ
82
I
Auxiliary datum hole
of rear floor assembly
Φ
18
D Mounting
hole
of
front frame
M14
J
Datum hole of rear
tail board
Φ
16
E Mounting
hole
of
front frame
M14
Linear
Dimensions
Car
Underbody
14
16
Table of Contents
Table of Contents
24
Upper Beam Assembly of Water Tank
25
Lower Beam Assembly of Water Tank
26
Upper Beam Edge Beam Assembly of Water Tank
28
Upper Edge Beam Inner Plate Assembly of Wheel Guard
30
Side Front Connecting Plate
32
Front Lower Plate Assembly of Ventilation Hood
33
Front Anti-Collision Beam Assembly
34
Ventilation Hood Assembly
35
Wheel Guard Assembly
36
Front Longitudinal Beam Assembly (Front Segment
40
Front Longitudinal Beam Assembly
42
Rear Extension Beam Assembly of Front Longitudinal Beam
46
A Pillar
48
B Pillar
50
C Pillar
52
Lower Part of Side Panel
56
Interior of C Pillar
58
Roof Panel
60
Roof Panel (with Sunroof
62
Rear Tail Board Assembly
64
Trunk Floor
65
5
Based on 1 rating
Ask a question
Give review
