Overview I-2
Chapter 1 Overview

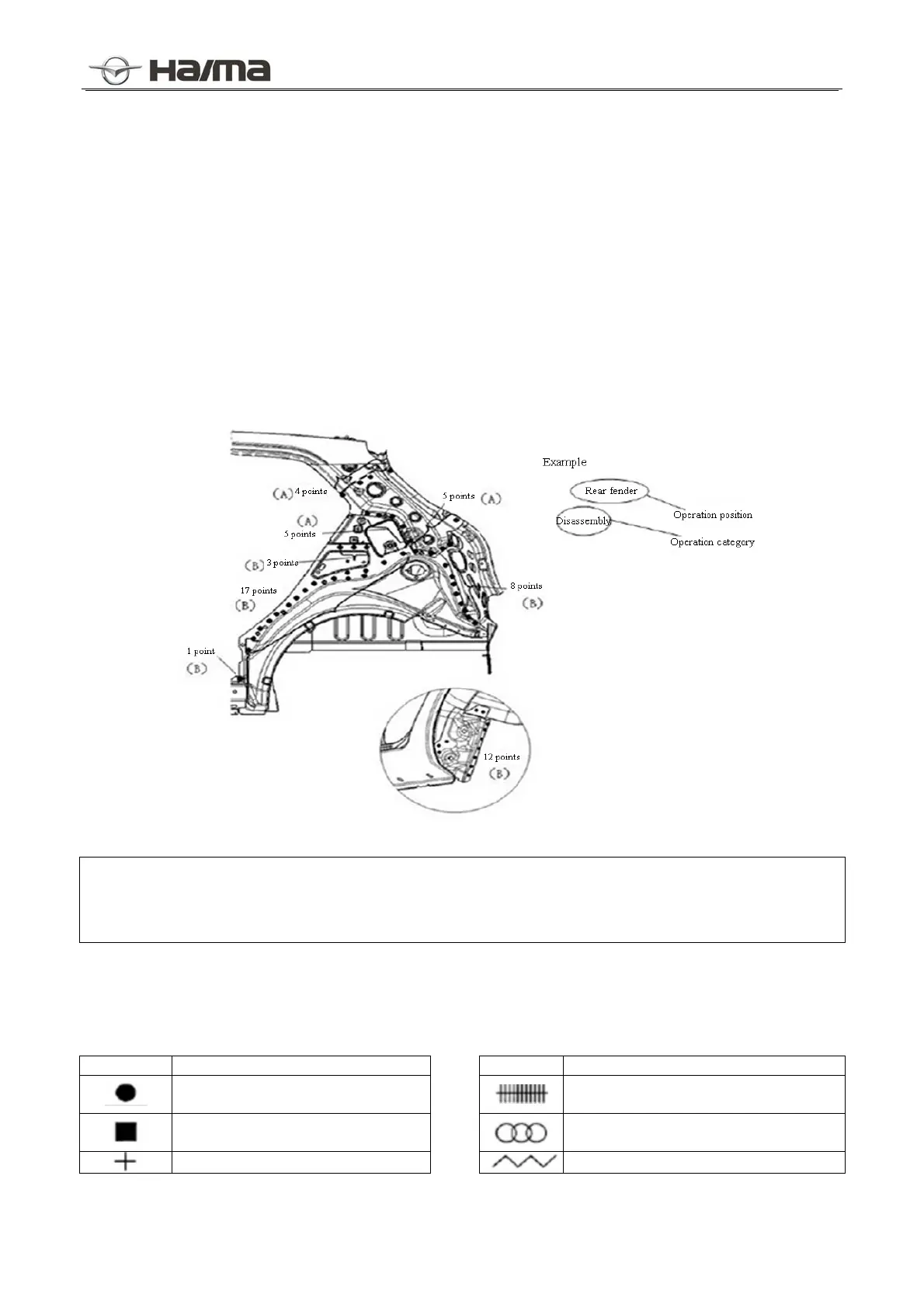

How to use this manual
Effective replacement of body sheet metal parts
The contents of this chapter include the welding
type, number of welds, and shearing-cutting
locations for the body sheet metal parts. This
information is of great importance for the
disassembly and installation of the sheet metal
parts.
The welding types and locations are indicated by
symbols.
The relevant operation precautions are given in
some sections. Please carefully read and
understand these precautions before any operation
procedure.
Note
The number of welds at asterisk (A) varies depending on different shearing-connecting locations.
When the drilling is required during the installation of new parts, take cautions not to completely drill
through the sheet metal parts.
Symbol
The following 6 symbols are used to indicate the welding types during the replacement of body sheet metal
parts.
Symbol Meaning Symbol Meaning
Spot welding
Continuous MIG welding
(shearing-connecting location)
CO2 gas shielded arc welding (plug
welding)
Braze welding
CO2 spot welding
Rough shearing location
