HAIMA M3 Series User Manual

Overview I-2
Body sizes

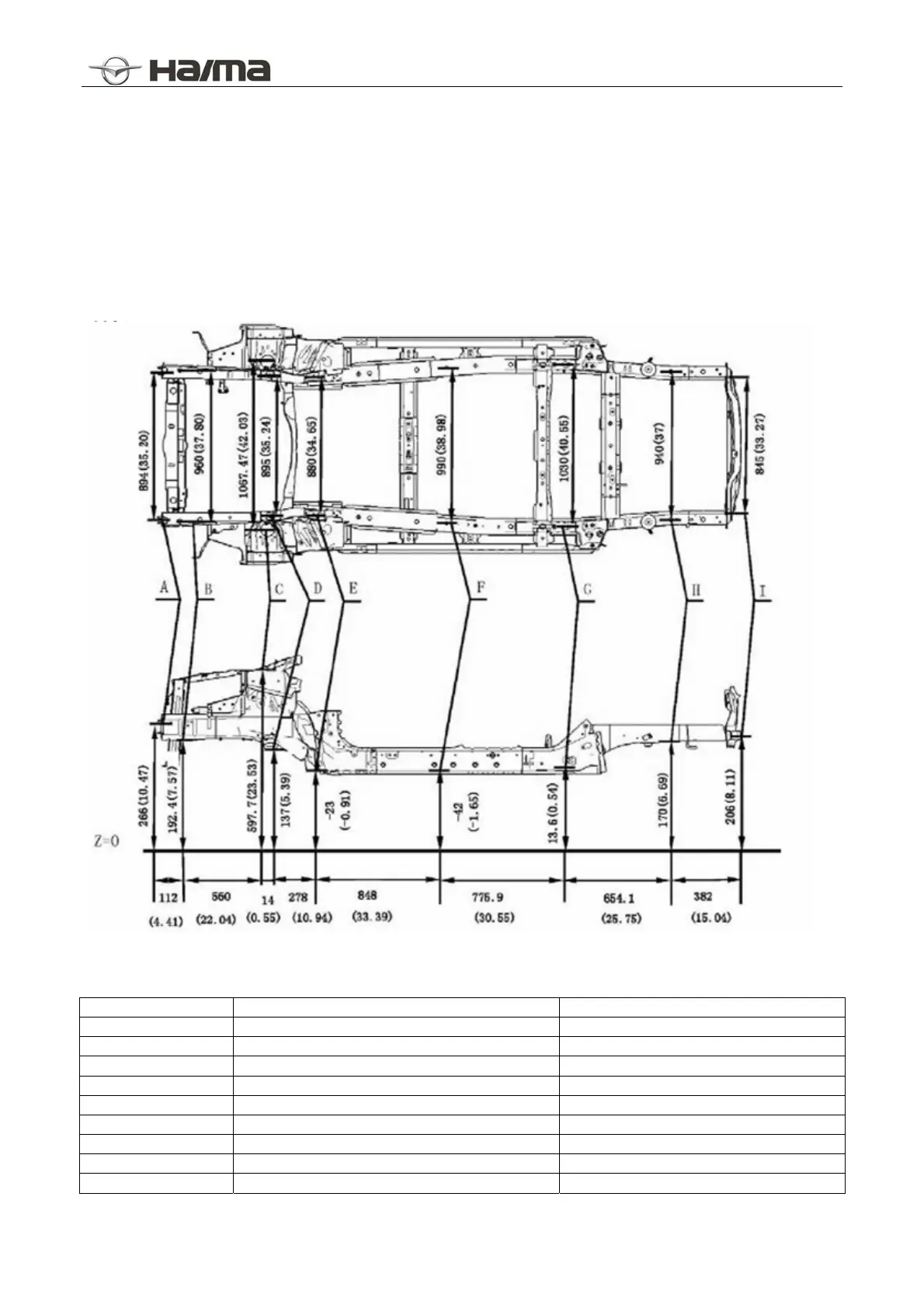

Planar sizes
 The planer sizes refer to the sizes measured from certain reference points projected onto certain plane.
 The standard points and sizes are symmetric with respect to the body center, unless otherwise explicitly
specified.
 The imaginary lines are different for different vehicle models.
Example:
Z=0 plane is the plane that passes through the rotation center of rear suspension torsion beam (under no-load
condition) and parallels with the lower plane of floor longitudinal beam.
Point symbol Name Hole diameter or nut size mm (in)
A Front anti-collision beam datum hole Ø15(0.59)
B Front body main datum hole Ø25(0.98)
C Front suspension mounting hole Ø86.6(3.41)
D Front beam mounting hole M14(0.55)
E Front beam mounting hole M14(0.55)
F Front body secondary datum hole Ø20(0.79)
G Rear longitudinal beam main datum hole Ø13(0.51)
H Rear longitudinal beam secondary datum hole Ø25(0.98)
I Rear beam datum hole Ø20(0.79)
