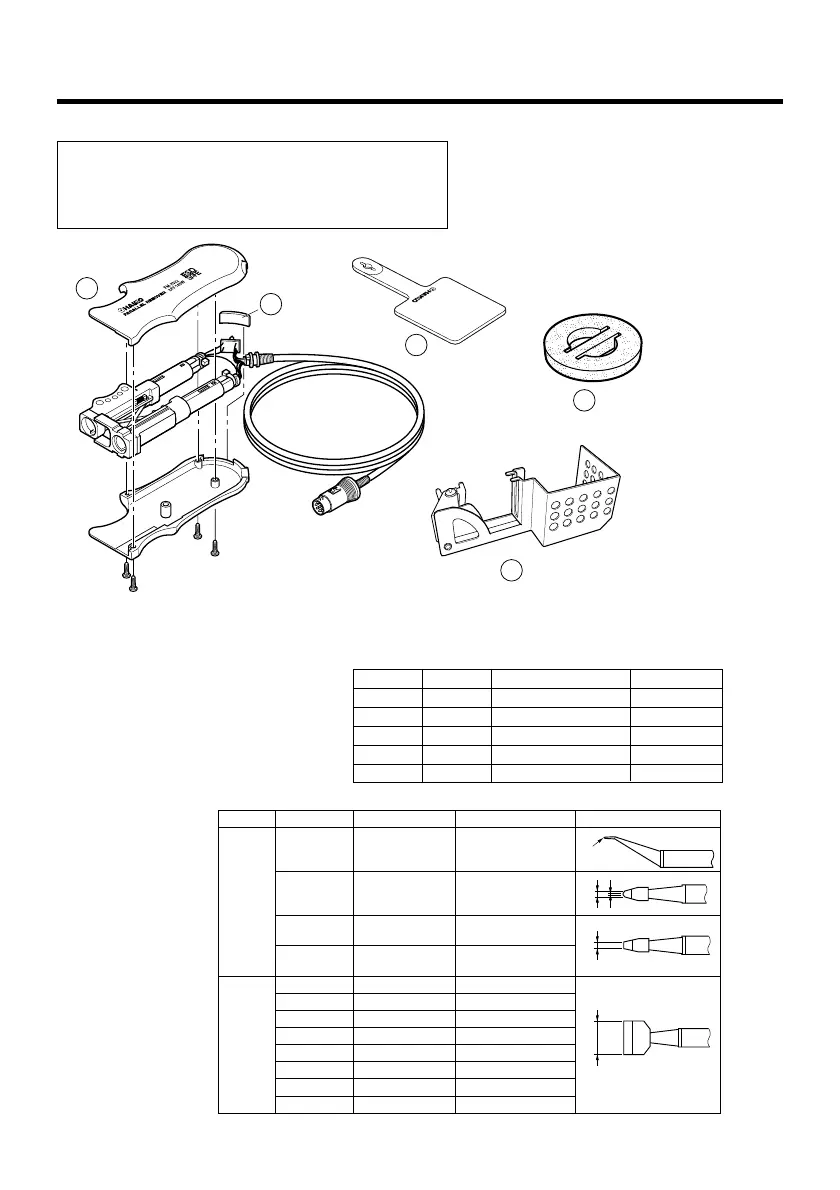

10. PARTS LIST
1
●
Tips
● Parallel remover
Item No.
1
2
3
4
5
Part No.
B2783
B2784
B2300
A1495
B2850
Part Name
Handle A & B
LED Holder
Heat resistant pad
Cleaning sponge
Holder clip
Specifications
with screws
with screw
CHIP
SOP
Part No.
T8-1001
T8-1002
T8-1003
T8-1004
T8-1005
T8-1006
T8-1007
T8-1008
T8-1009
T8-1010
T8-1011
T8-1012
Part Name
Tip/CHIP 0.5I
Tip/CHIP 0.5C
Tip/CHIP 1L
Tip/CHIP 2L
Tip/SOP 6L
Tip/SOP 8L
Tip/SOP 10L
Tip/SOP 13L
Tip/SOP 16L
Tip/SOP 20L
Tip/SOP 25L
Tip/SOP 18L
Size A [a]
R0.2 mm
(0.008 in.)
1.5 [0.5] mm
(0.06 [0.02] in.)
1 mm (0.04 in.)
2 mm (0.08 in.)
6 mm (0.24 in.)
8 mm (0.31 in.)
10 mm (0.39 in.)
13 mm (0.51 in.)
16 mm (0.63 in.)
20 mm (0.79 in.)
25 mm (0.98 in.)
18 mm (0.71 in.)
Shape
A
A
A
A
a
A
B
3
2
4
5
NOTE:
Replacement parts do not include mounting screws if
they are not listed on the description. Screws must be
ordered separately.
