Height Adjustment
The height adjustment is set to 3 mm
at the factory. If streaks are produced,
despite an optimum angle adjustment,
the clearance between the rollers and
floor must be adjusted by changing
the number of washers on the holder.
In the case of very smooth floors, e.g.
finished floors, PVC, linoleum, etc.
Number of washers = 2. This corre-
sponds to a clearance of approx. 2
mm.
In the case of very uneven floors, e.g.
poorly laid tiles (water does not run
off) Number of washers = 4. This cor-
responds to a clearance of approx. 4
mm.
The Squeegee 110 cm is
equipped with two additio-
nal rollers which are adju-
sted at the factory to a di-
stance of 10 mm to the floor by
means of spacers.

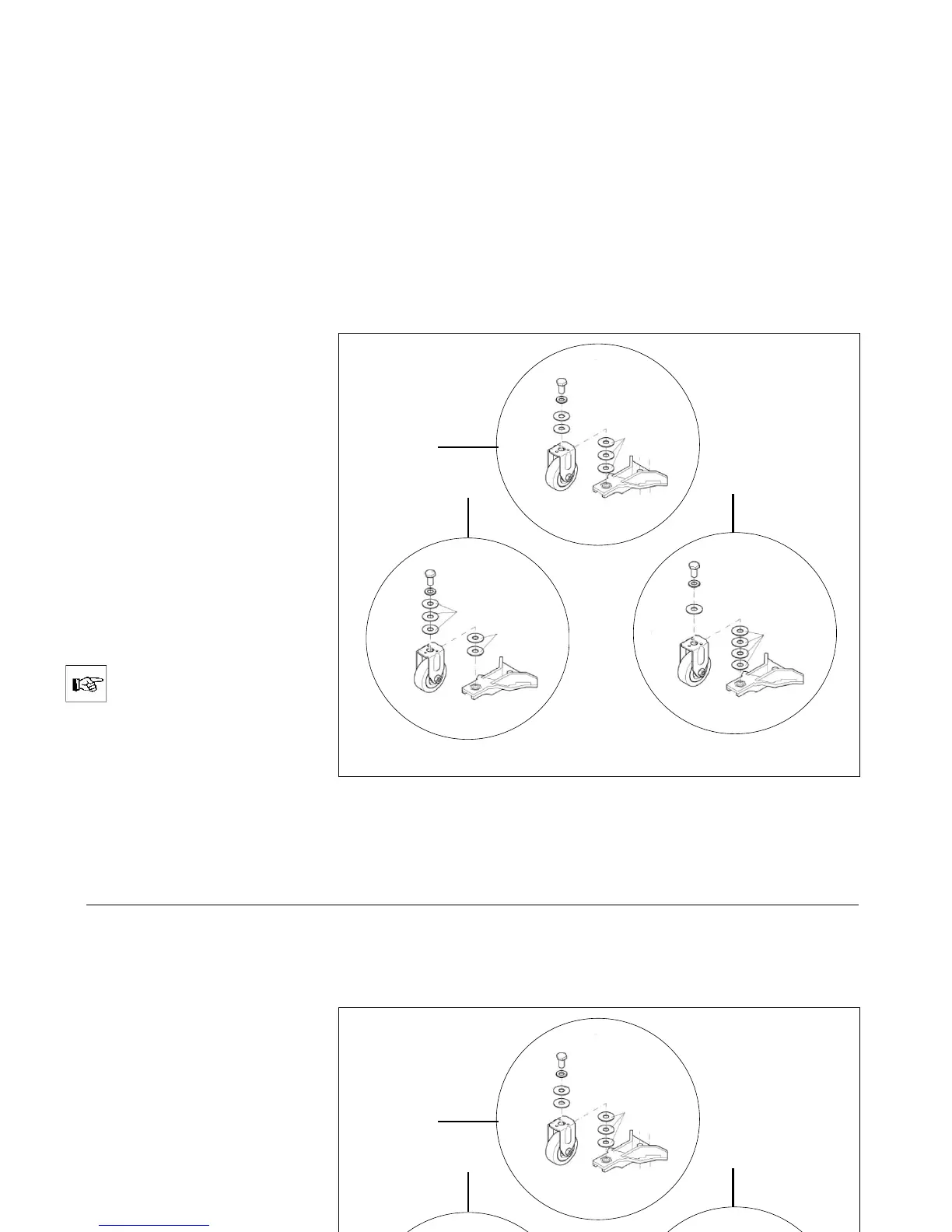

Fig. 3
3 mm
2 mm
4 mm
