HAKO Sweepmaster B500 - Battery System

26
Maintenance and Service
5.4 Battery system
1 Battery indicator for charger
2
Charge control indicator
3 Charger
4 Flap for charger mains power cable
5 Connection cable
6 Lashing straps
7 Batteries
8Hood
9 Connection plan
Batteries may only be handled
and changed by properly
skill
ed maintenance person-
nel.
The charge control indicator
(Fig. 7/2) indicates the charge
status of the batteries during
operation. When the batteries
are discharged, the red LED
flashes. The machine func-
tions are restricted. Charge the
ba
tteries immediately!

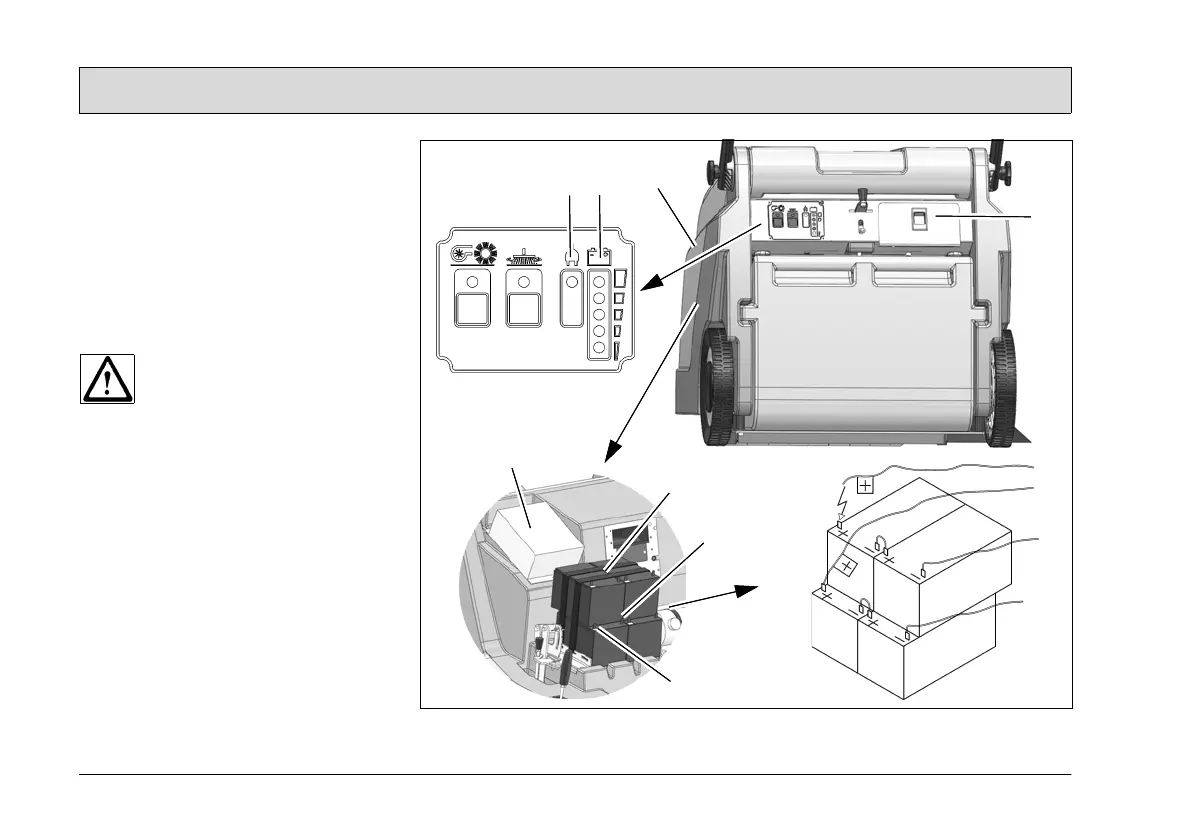

Fig.7
