Parts Lists
Booster
Sec VI-13
TACHOMETER OPTION
Connected to the pump shaft at the gearbox, the tachometer take off provides for an actual RPM of
the pump when connected to a tachometer. The ratio adapter is a 10:1 reduction of the actual
rotation of the shaft. The drawing and parts list below illustrate the standard installation of the
assembly.
Tachometer Drive Part List
Item Part Number Description
1 008-0150-02-0 Bearing Cover (Tachometer)
2 007-0070-00-0 2388d Adapter
3 007-0940-00-0 2385 Ratio Adapter
4 013-0010-00-0 Zsf-741f-54 Flex Shaft
5 048-0090-00-0 Zsf-426 Panel Adapter
6 008-0070-00-0 Zsf-666 Adapter Cap

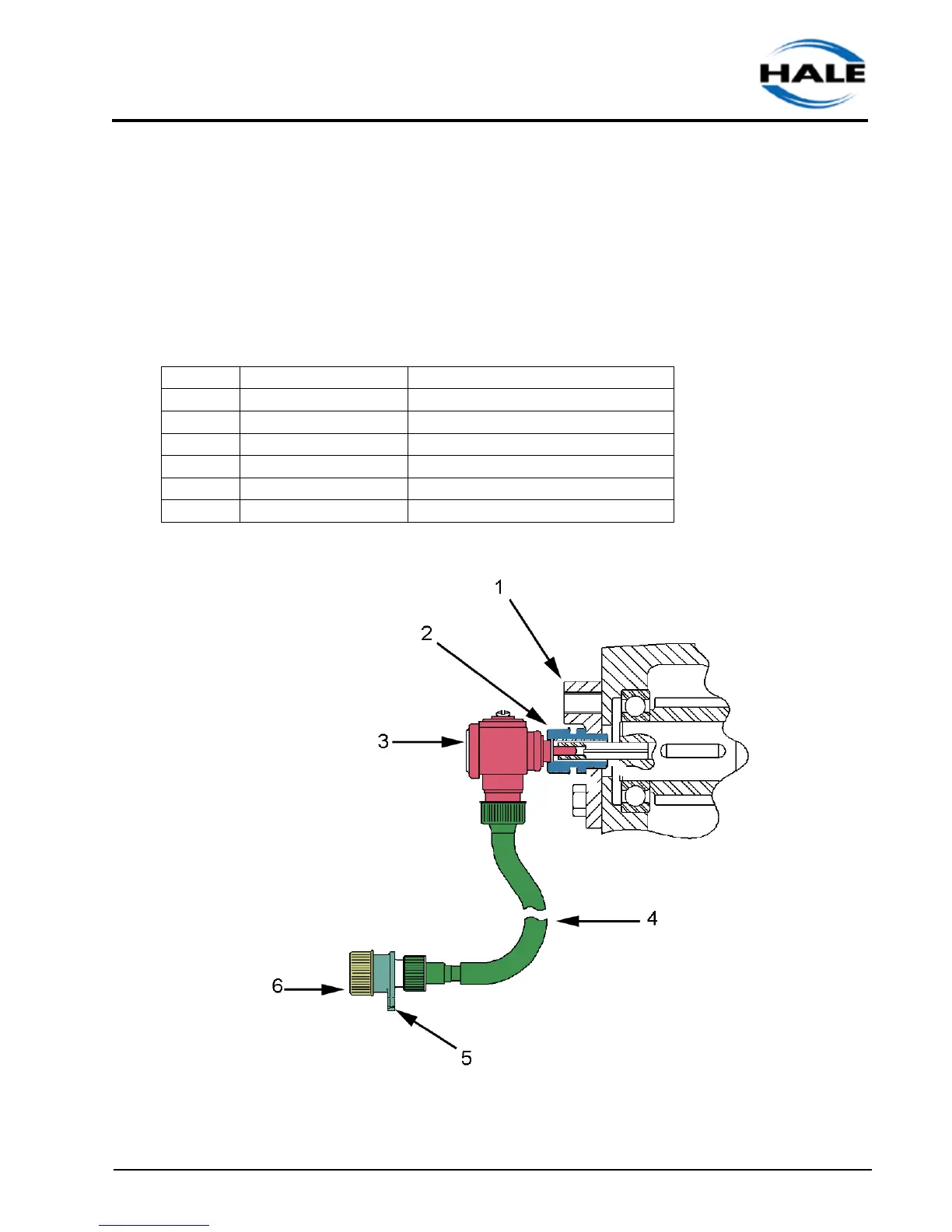

Figure 6-5 Tachometer Assembly
