Owner’s Manual
8

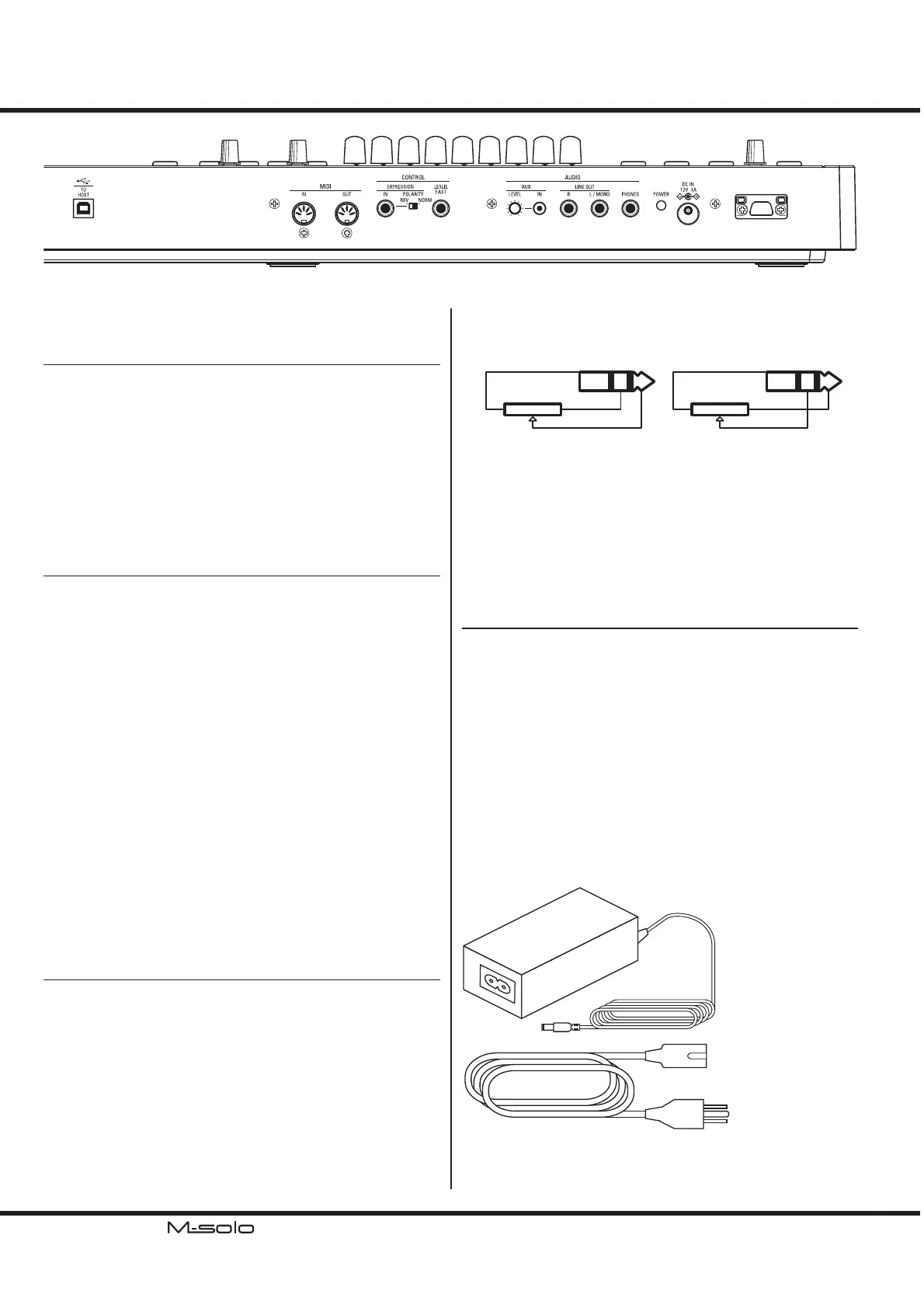

REAR PANEL
 POWER SUPPLY
❶ CORD HOOK (P. 9)
Fix the DC cord of the AC power adaptor by attach it into this
hook for avoid the disconnect unexpectedly.
❷ DC IN jack (P. 9)
Connect the AC power adaptor to supply the power.
Use only GQ36-120300-E2.
❸ POWER button (P. 12)
Turns ON and OFF this instrument.
 AUDIO
❹ PHONES jack (P. 9)
Use this jack to connect a set of stereo headphones.
NOTE: Connecting Headphones does NOT mute the LINE OUT. If you
wish the sound to go through the Headphones only, discon-
nect all other audio outputs.
❺ LINE OUT L/MONO jack (P. 9)
❻ LINE OUT R jack
Use these jacks to connect external audio equipment.
If the connected mixer or monitor speaker is stereophonic,
connect both the L and R jacks. If it is monaural, connect only
to the L/MONO jack.
❼ AUX IN jack (P. 10)
Use this jack to connect an external audio source. When con-
nected, the sound will be mixed with this instrument’s sounds
and sent out to the LINE OUT jacks and the PHONES jack.
❽ AUX LEVEL knob (P. 10)
Adjusts the volume of the sound coming in from the AUX IN
jack.
 CONTROL
❾ LESLIE FAST jack (P. 14)
Switches the Leslie “FAST” or not which instead of the Leslie
[FAST] button (P. 6).
Connect the “momentary” type Foot Switch.  e recommend-
ed Foot Switches are listed below:
HAMMOND ... FS-9H, VFP1
BOSS ................ FS-5U
YAMAHA ......... FC4A, FC5
NAMES AND FUNCTIONS - continued
❿ EXPRESSION POLARITY switch
Selects the polarity of the connected Expression Pedal.
MIN MAX
Potentiometer
NORMAL
MIN MAX
Potentiometer
REVERSE
⓫ EXPRESSION jack (P. 14)
Use this jack to connect an Expression Pedal to control volume
while playing.
 e recommended Expression Pedals and corresponded setting
of the
❿ are listed below:
HAMMOND ...EXP-50J, EXP-20, V-20H, V-20R; NORM
KORG ................ XVP-10, XVP-20; REV
ROLAND ......... EV-5; NORM
YAMAHA ......... FC7; REV
 MIDI/USB
⓬ MIDI OUT port (P. 11)
Transmits MIDI data to a connected MIDI device.
⓭ MIDI IN port (P. 11)
Receives MIDI date from a connected MIDI device.
⓮ USB TO HOST port (P. 11)
Use to connect to a computer to transmit MIDI messages or
Update  les.
ACCESSORIES
❶ AC Adaptor GQ36-120300-E2
❷ AC Cord Set
❶
❶
❷
❷
