HAMPBACK DSP-1201 User Manual

Minimize the volume of this unit and the
connected devices.
Turn off the power to the connected devices.
Hold down the [power] button for a while, until
the screen indicates “POWER OFF”.
Before power on, turn [VOLUME] anticlockwise
to minimize the volume of sound module and do
the same for the connected devices.
Press [POWER] button to turn on the power.
Minimize the volume of connected devices and
turn on the power.
Strike pad and turn [VOLUME] clockwise, adjust
volume slowly.
3
1.3 Getting Ready
1.3.1 Turning the Power On
1.3.2 Turning the Power Off
Note: After turn on the power, do NOT touch any
pads or pedals until the drum kit interface
appear.
POWER
-
1.
2.
3.
4.

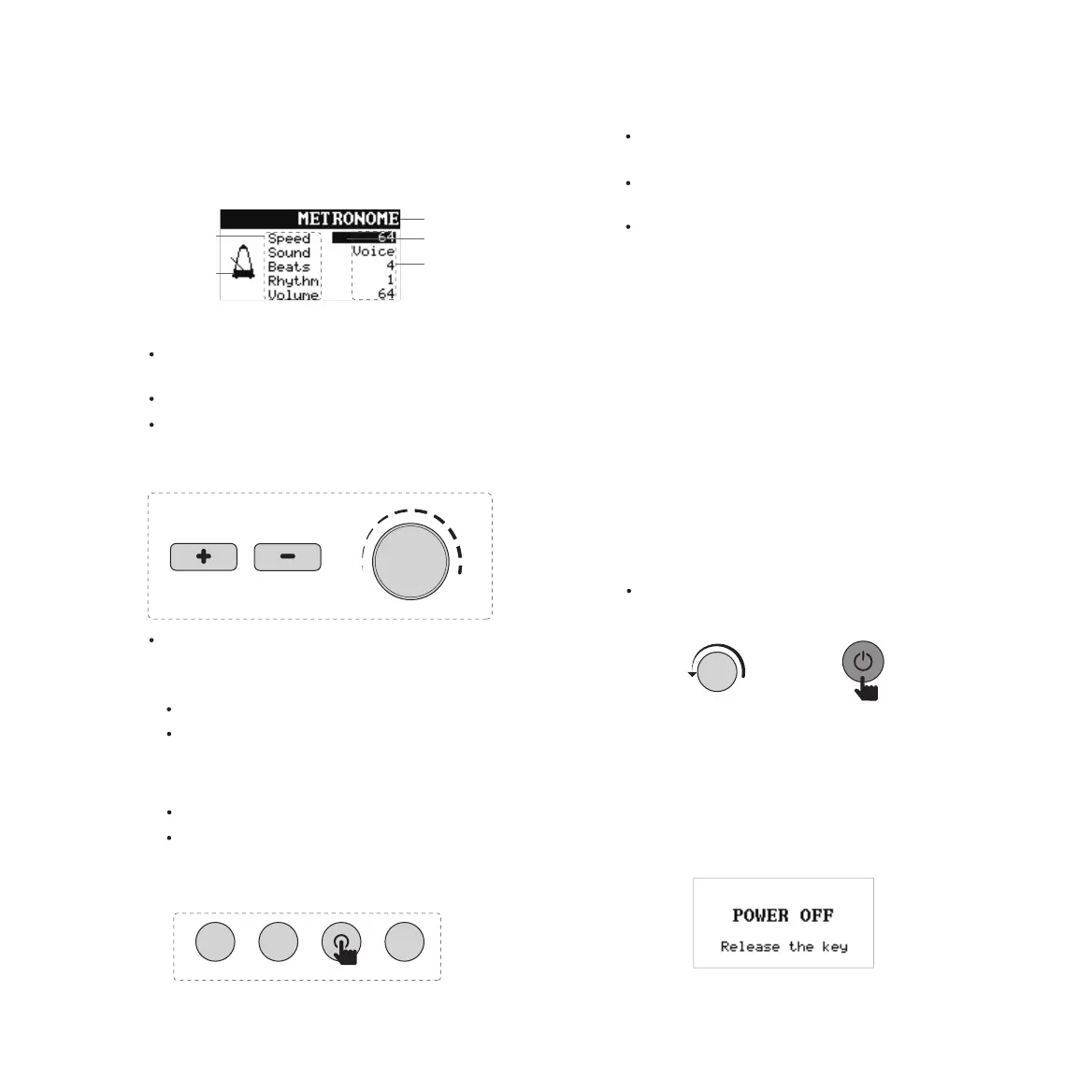

1.2 Sound Module Operating Guide
1.2.1 Viewing the Display
1.2.2 [+][-] Buttons and [EDITOR] Rotary
The [+] [-] buttons and [EDITOR] rotary are both
used to edit settings.
b.[EDITOR] rotary
a.[+][-] buttons
cursor
Current available
functions icon
title bar
Parameter Item
(Take metronome interface for example)
Interface consist of title bar and setting of
parameter item.
Left icon indicte current available function.
Cursor indicate current editing function.
1.2.3 [RETURN] button
Use for accurate value editing.
The value of the setting will increase each time
press [+],and decrease each time press [-].
Edit value in a large steps.
To make a wide range of numeric changes.
[RETURN] button is used to confirm current
adjustment.
Upon cursor on the function option, press
[RETURN] button and confirm it.
Upon cursor on the parameter item, press
[RETURN] button and start specific parameter
setting.
RETURN KITSONG MUTE
value
1.
2.
3.
Then press [RETURN] button again to return
previous interface and choose other parameter
item.
