Finishing the Installation
Step 1. Tuck connections neatly into ceiling
outlet box.

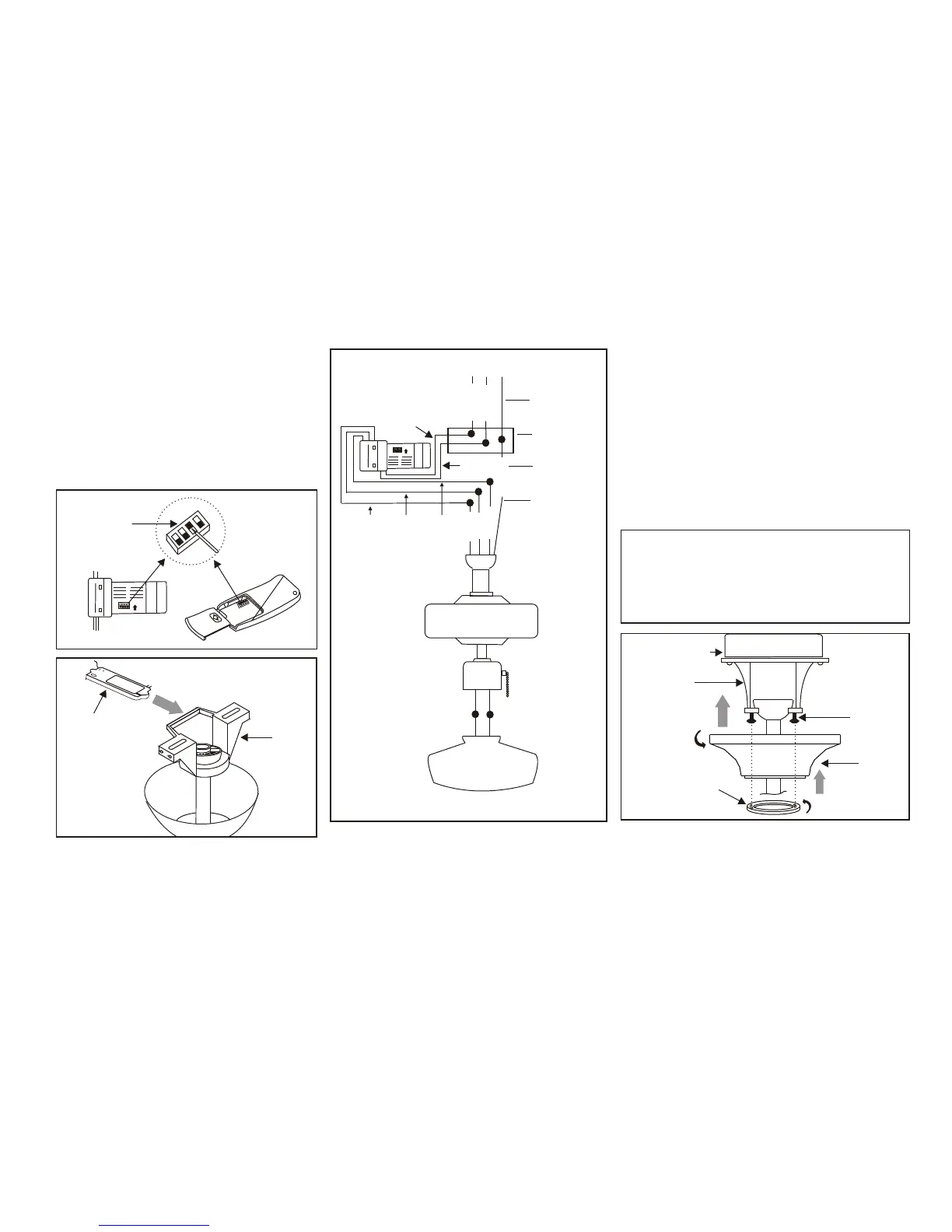

Step 2. Slide the canopy up to ceiling and over
the 2 screws on hanger bracket. Rotate canopy
clockwise, next, while holding the canopy with
one hand, slide the canopy cover over the screws
and rotate clockwise until tight. Note: adjust
the canopy screws as necessary until the canopy
and canopy cover are snug. (Fig. 12)
6.
Figure 12
Outlet box
Hanger
bracket
Canopy
Canopy
cover
Screws
SUPPLY CIRCUIT
Ground
Conductor
Outlet Box
Green
Ground
Lead
Ground to
Downrod
BLACK
WHITE
WHITE
WHITE
WHITE
BLACK
BLACK
BLACK
BLUE
BLUE
GREEN
Figure 11
WHITE
WHITE
BLUE
BLACK
ON ON
Figure 10
Receiver
Hanger
bracket
ON ON
Figure 9
Code switch
WARNING
MAKE SURE TAB AT BOTTOM OF HANGER
BRACKET IS HANGER PROPERLY SEATED IN
GROOVE OF HANGER BALL BEFORE
ATTACHING CANOPY TO BRACKET. FAILURE
TO PROPERLY SEAT TAB IN GROOVE COULD
CAUSE DAMAGE TO ELECTRICAL WIRING.
Step 4. (Figure 11) If your outlet box has a
ground wire (green or bare copper) connect it
To the fan ground wires; otherwise connect
the hanging bracket ground wire to the
mounting bracket. Secured the wire
connection with a plastic nut provided. After
connecting the wires spread them apart so
that the green and white wires are on one side
of the outlet box and black and blue wires are
on the other side. Carefully tuck the wire
connections up into the outlet box.
