Handicare Eva400 - Dimensions Eva450 Low Legs

125
INSTRUCTIONS FOR USE

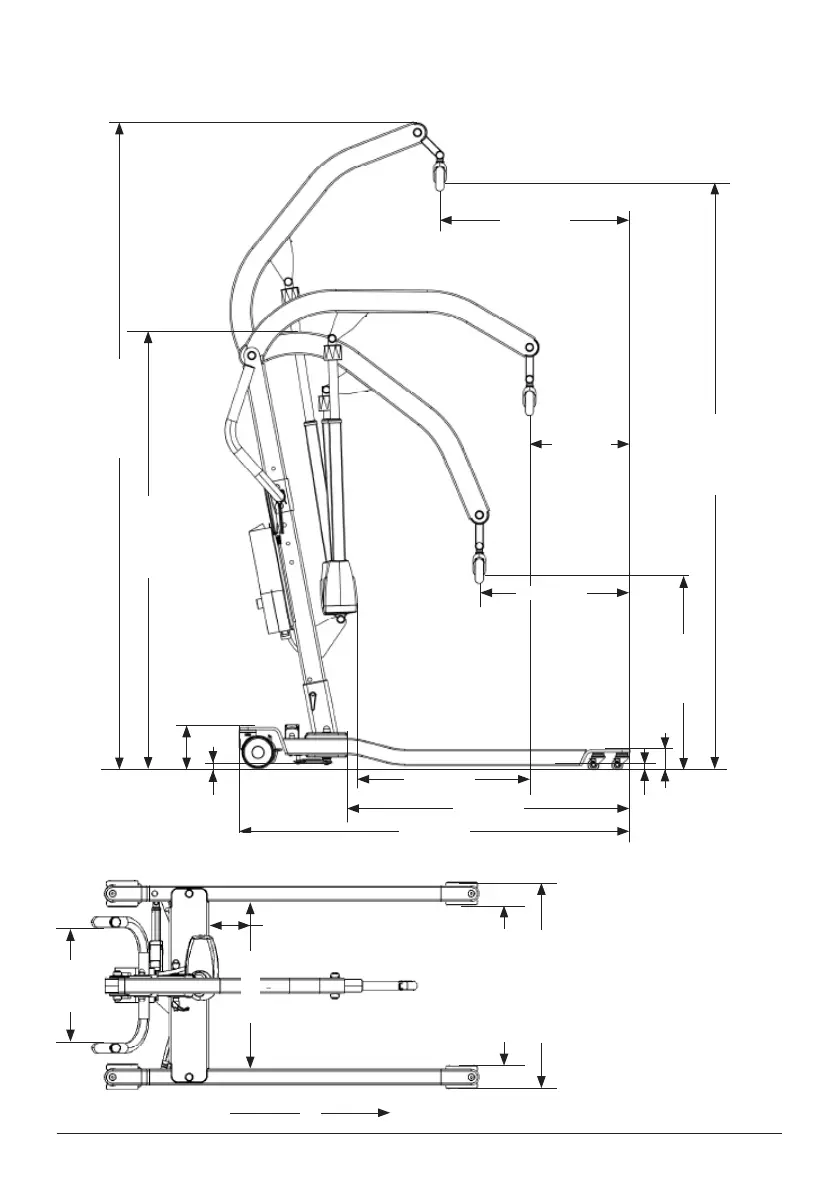

Dimensions Eva450 Low legs
All dimensions are in mm/inch
Tolerance +/- 5 mm/ 0.2”
1330/52.4**
1303/51.3
875/34.4
550/21.6
17/0.6
220/8.6
470/18.5
410/16.1
1790/70.5*
2005/78.9*
500/19.7**
115/4.5
16/0.6
66/2.5
D is movement in forward direction
* can be 50 or 100 mm lower
depending on the placement of the
mast in the base socket
** can be 50 or 100 mm higher
depending on the placement of the
mast in the base socket
*** is reference measure 700 mm
with max legspreading
550/21.6 - 960/37.7
650/25.5-1060/41.7
440/17.3
700/27.5***
270/10.6
D
