1. Black (Ground)
2. Red (Work Lights)
3. Yellow (Left Turn)
4. Not Used
5. Green (Right Turn)
6. Brown (Tail Lights)
7. Not Used
-20-

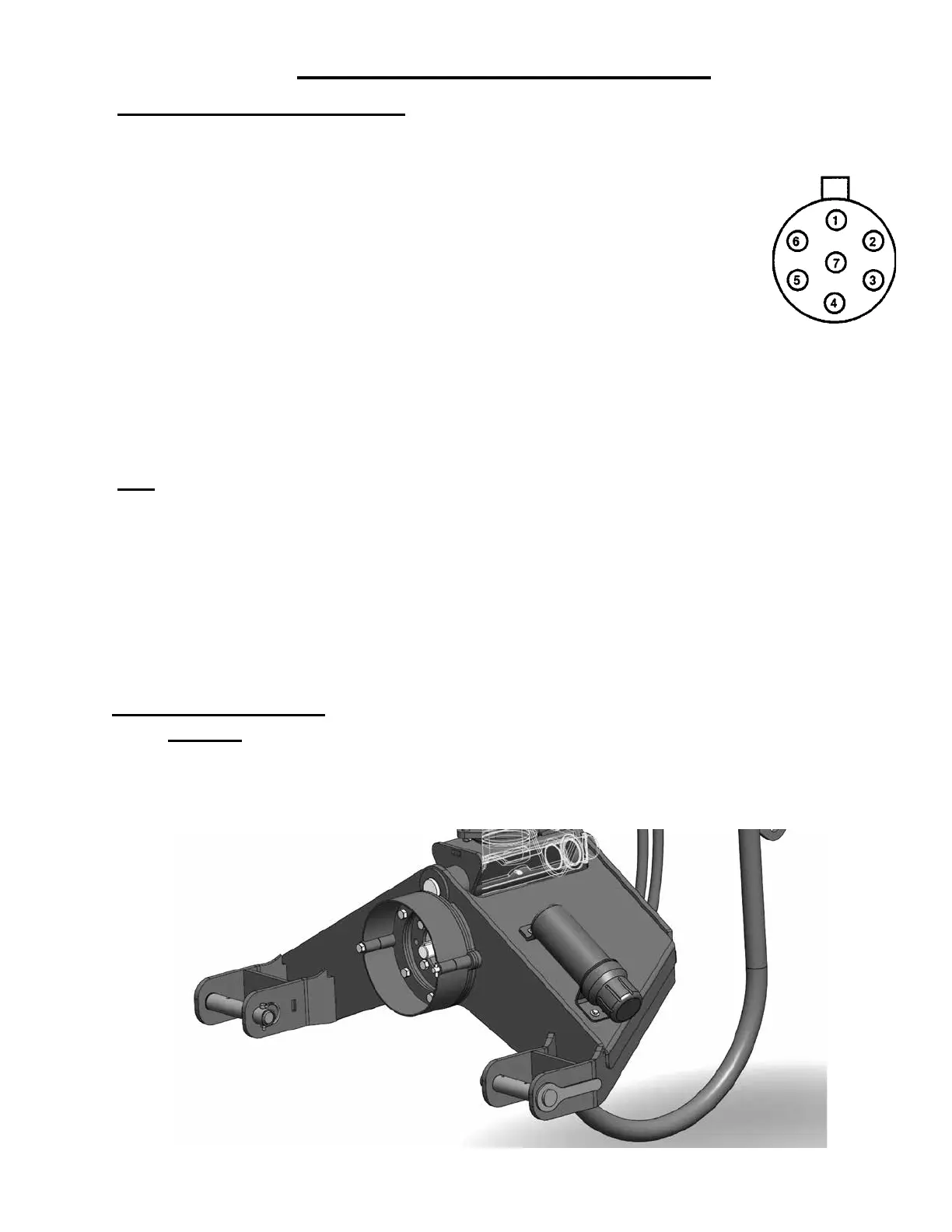

TRACTOR REQUIREMENTS
There are several requirements the tractor must have
to ensure ecient operation of the Merger.
1. The tractor must be equipped with a 7-pin
connector for proper transport and warning light
function.
2. The tractor must be equipped with a 1000 RPM
1-3/8” 21 spline or 1-3/4” 20 spline PTO.
3. The tractor must be equipped with a category 2,
3N2 or 3 three point hitch (Quick Hitch would be most
desirable).
4. The tractor must also be equipped with a 3-pin
convenience outlet that is operated by tractor keyed
power.
5. The Merger requires a minimum 95 H.P. tractor,
AND that has a minimum tractor weight of 8,000 lbs.
6. Hydraulic Requirements
2 - Remotes/SCV’s
12 g.p.m. per SCV
2,750 p.s.i.
MAIN TRACTOR PLUG
Tractor wiring may differ. Check your
tractor manufacturers’ electrical diagram
to match to the Tri-Flex Merger’s wiring.
MACHINE PREP & OPERATION
TRACTOR HOOK UP
3-Point
Connect the merger hitch to the tractor 3-point using the supplied hitch pins and adapter sleeves.
Correct hitch distance from ground to center of pins is 24” to 26”. If the tractor is equipped with a quick
coupler make sure the latches are engaged.
