DOUBLE-SEAT VALVE INOVA (Type 580)

BA 058000.06 EN 15.11.2018

4.1.1 Process Integration, Mechanical

Four standard housing executions are offered for the integration of the double-seat valves

in the piping system (standard execution in bold print). The other housing executions are

available on request.

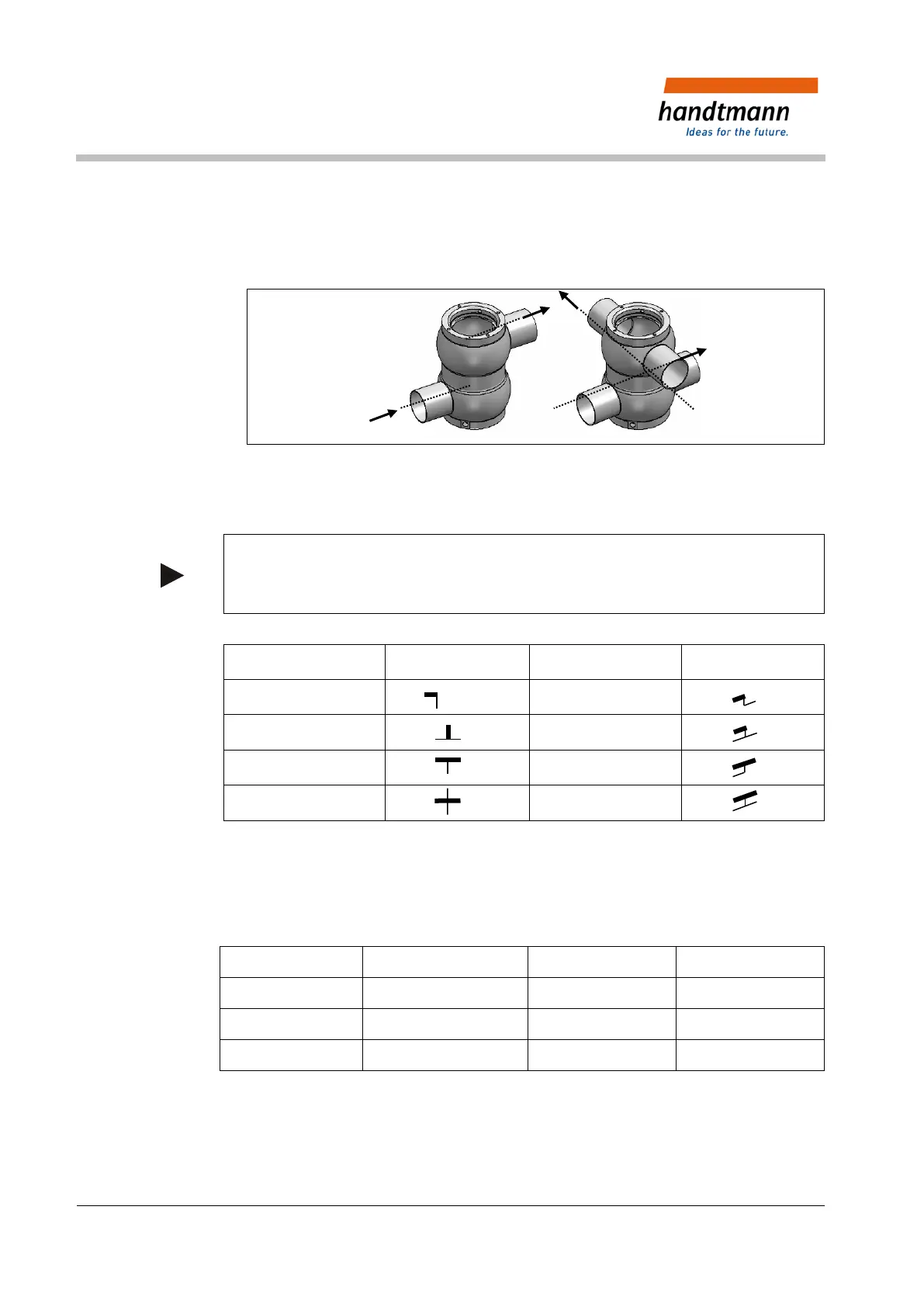

Fig. 2: Form of execution

A Form II (e.g. execution 58001-II)

B Form X (e.g. execution 58004-X)

Note

In the housing form X the line-evens are moved by 90°; in the housing execution II these run

parallel to each other. The broad line in the symbol display indicates the upper line-even.

Order No. Execution X Order No. Execution II

58001 / 58061

58002 / 58062 58002 / 58062

58003 / 58063 58003 / 58063

58004 / 58864 58004 / 58864

4.1.2 Process Integration, Electrical

There are various control units available for the integration of the double-seat valves in the

automated production CIP process:

Types Valve position Control valves BUS system

S 1/2 --

S0 / S0-A 1/2 0/3 ASI

S3 / S3-A 2 3 ASI

• Proximity switch for position (S)

• Control unit for position and function check (SO)

• Control unit for switching, position and function check (S3)
