8

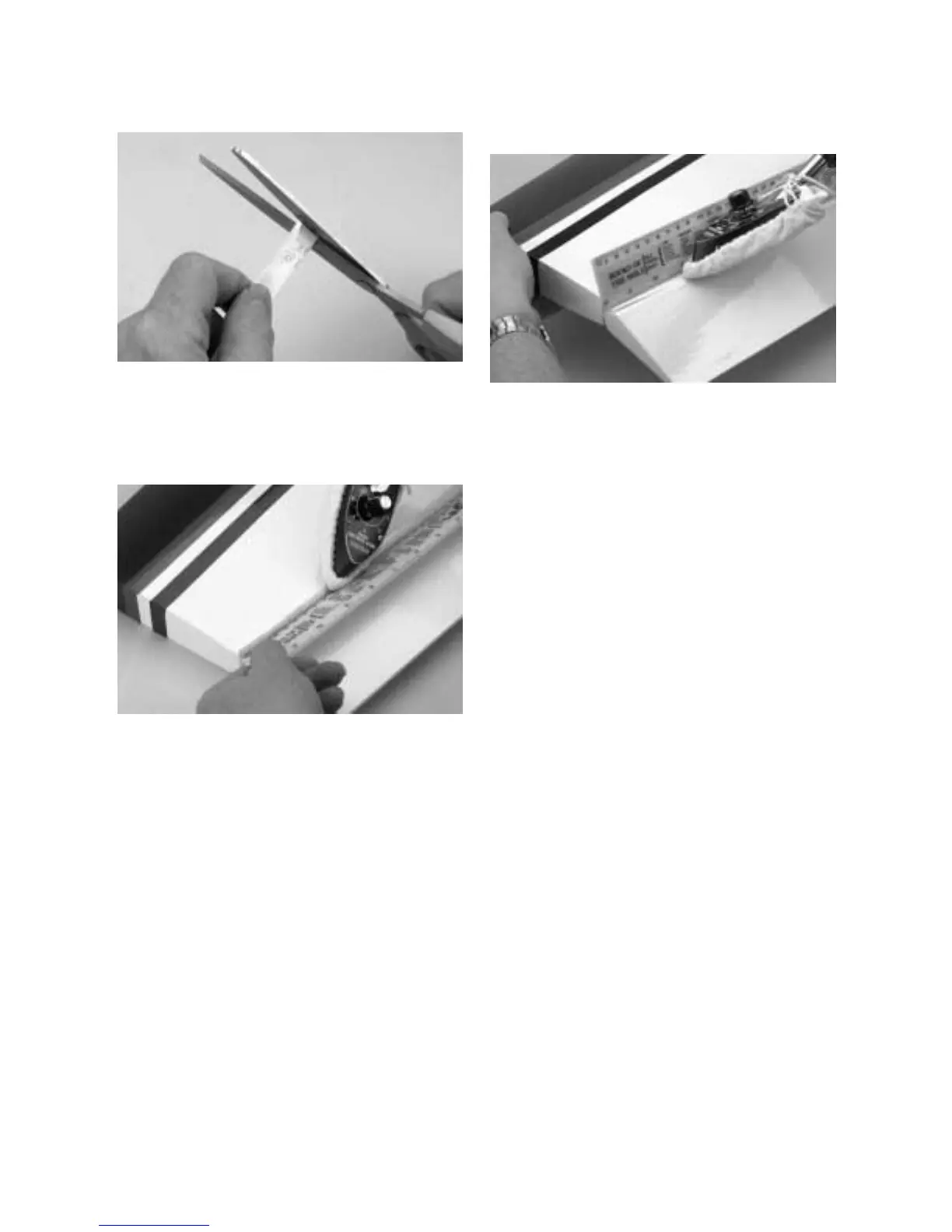

Step 12. Mark and cut both folded coverings to an overall
length of 1
1
/2". These pieces will be inserted and ironed down
into the hinge bevel on the bottom of the ailerons.
Step 13. Remove the backing from the UltraCote
®
. Place the
folded crease side to the center of the hinge line on the bottom
of one wing half. Using a straight edge as shown, hold one side
of the covering in place while ironing down the opposite side
with a sealing iron.
Step 14. Fully deflect the aileron in the up position. Place the
straight edge over the hinge line covering that you just ironed
down in Step 13 with the edge of the straight edge placed firmly
at the bottom of the hinge line as shown. Iron down this side of
the covering, making sure the aileron is full deflected.
Step 15. Repeat the process for the other aileron.
