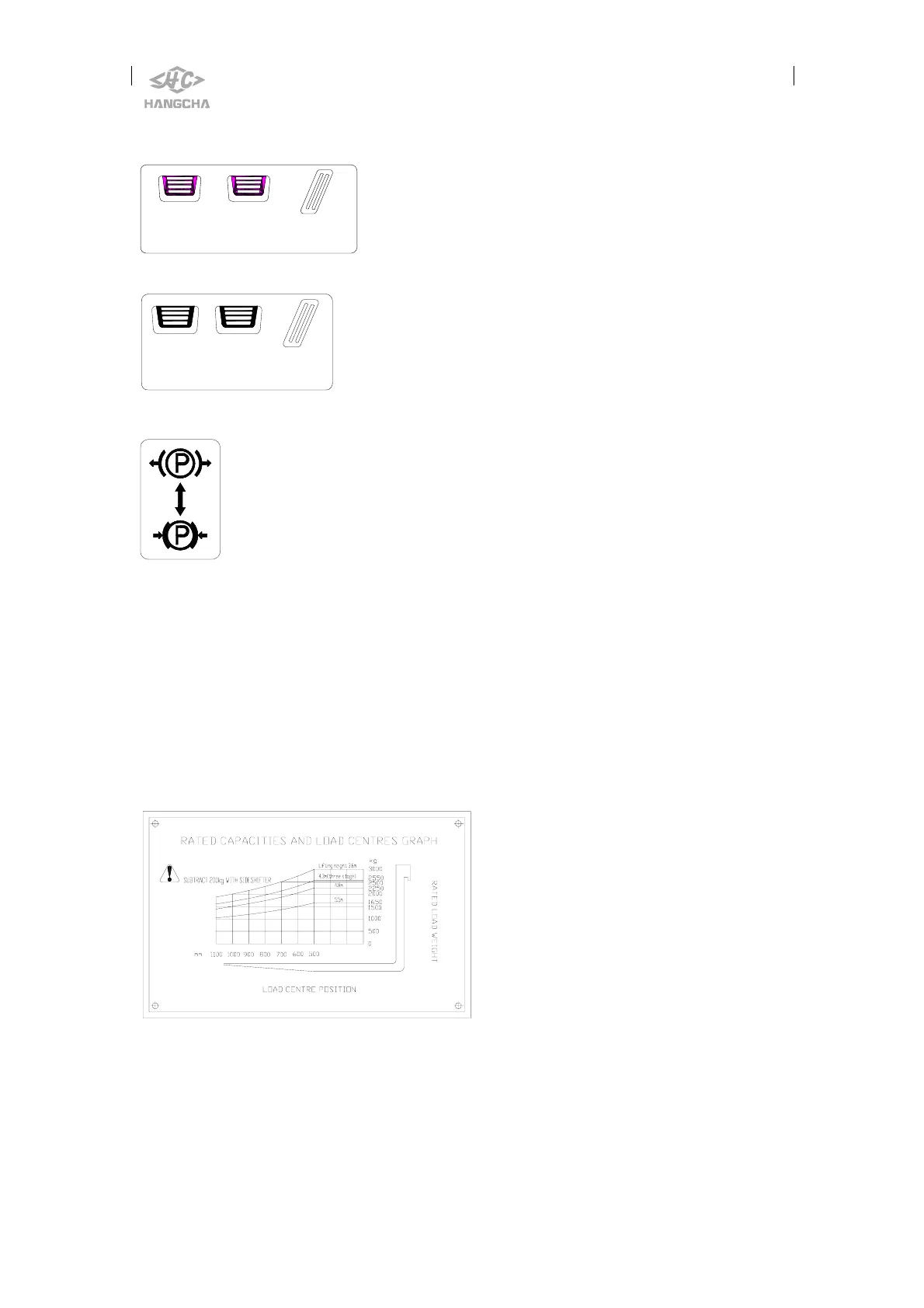

13、14 operate labels
Hydraulic truck
INCHING
BRAKE ACCELERATOR
Mechanism truck
CLUTCH
BRAKE ACCELERATOR
15、hand brake label
Forward, release hand brake; backward, strain hand brake.
16、load curve scutcheon
It shows relation among the position of the load center, max. load and max. lifting
height.
If it has side moving and attachment, the load decreases. If the lifting height
increases, the load decreases. Before loading, check whether the load and the center
distance of load are in the allowed range show in the diagram of load capacity. If the
shape of load is complicated, make the most heavy part place in the center of the fork
and approach the stop fork frame.
