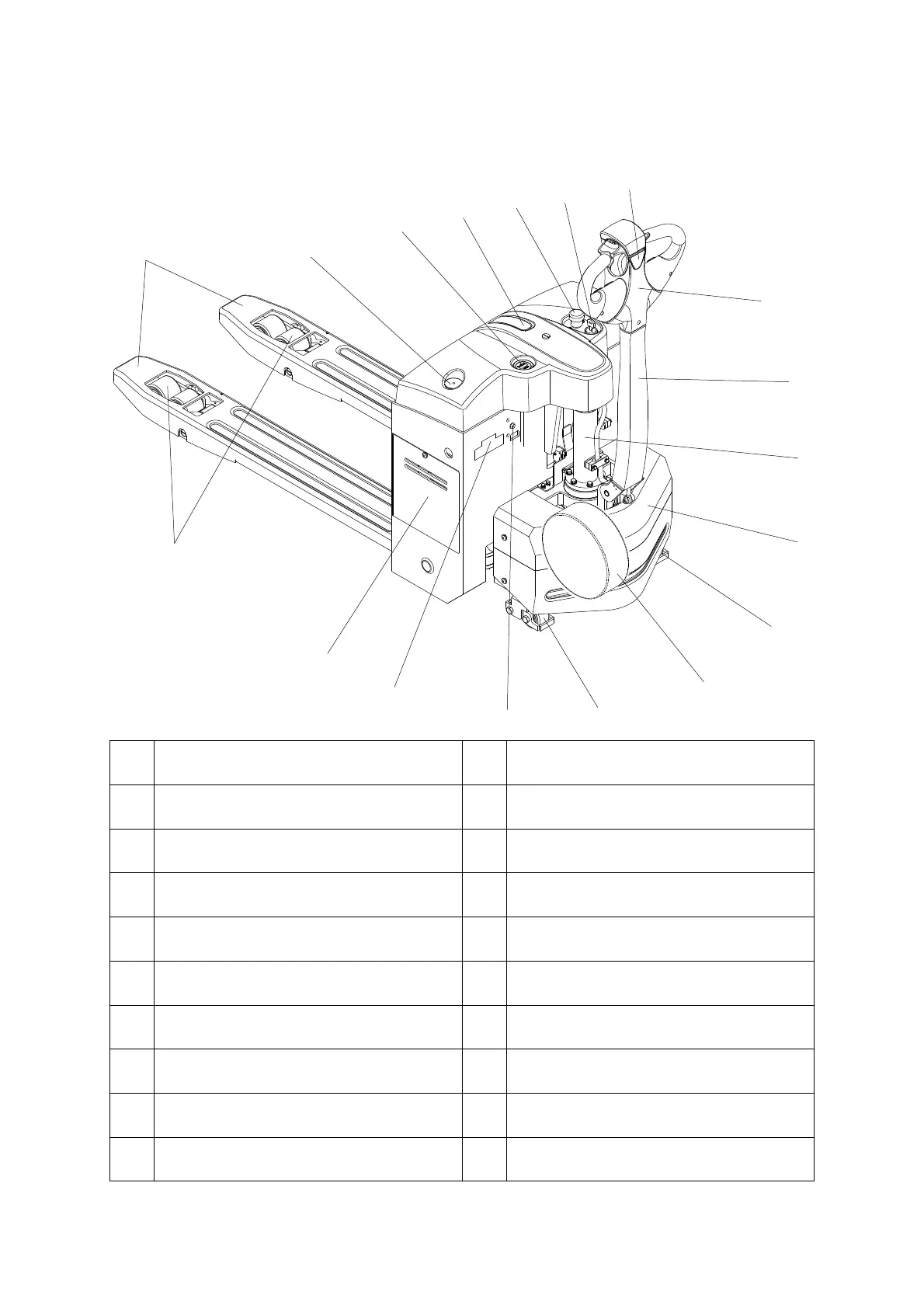

2.3 Main part introduction
17
11
10
16
15
14
13
12
1
4
2
3
5
6
5
7
8
9
Item Description Item Description
1 Control handle 10 Load wheel
2 Control lever 11 Fork
3 Lift cylinder 12 Wire fixator
4 Drive wheel cover 13 Display (battery charge level indicator)
5 Caster wheel 14 Hood
6 Drive wheel 15 Emergency stop switch
7 Fault indicator 16 Key switch
8 charging port 17 Upright traveling button
9 Side door (built-in battery)
