2.4 Display and control
21
20
19
21
20
22
23
22

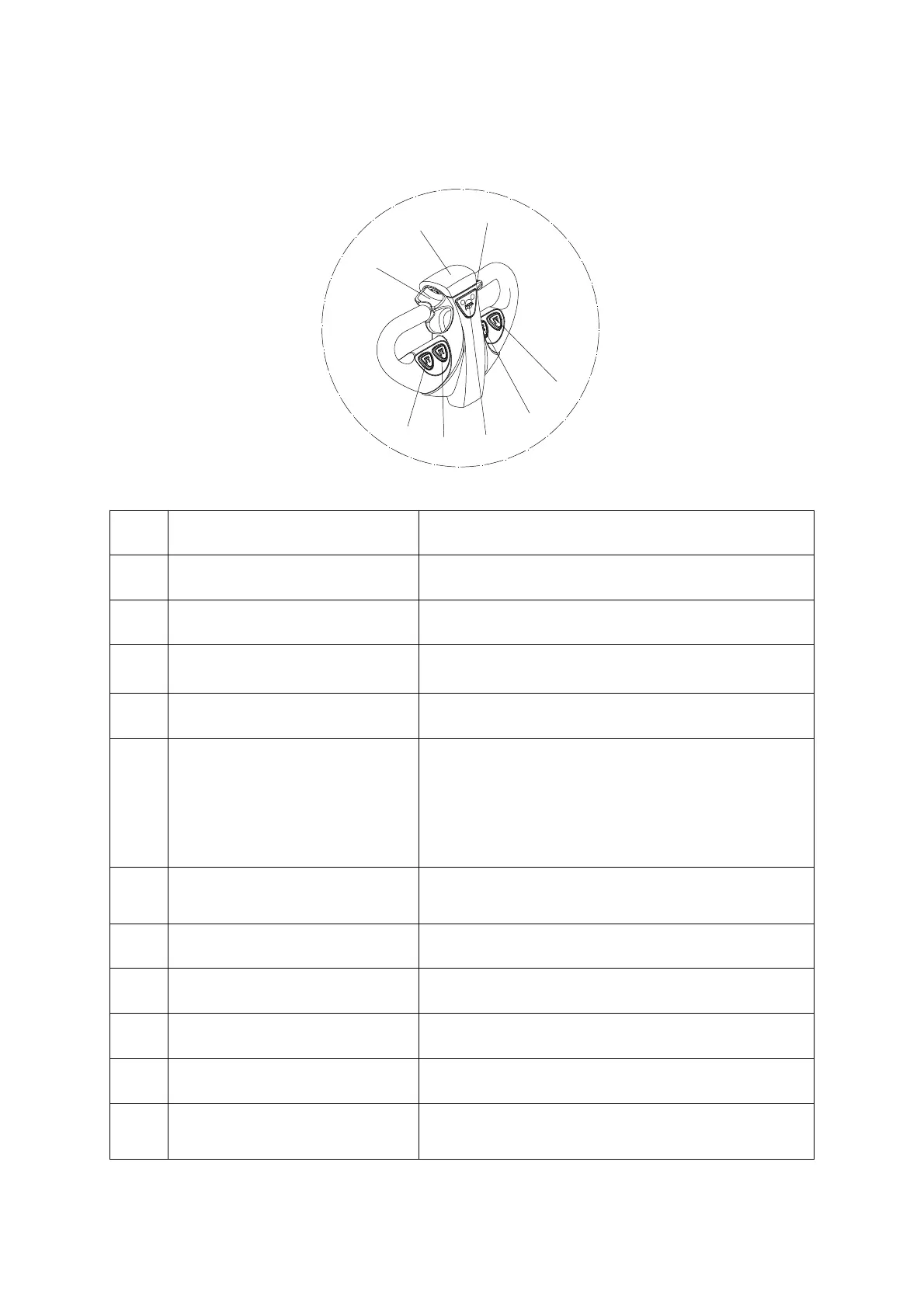

Item Designation Function
2 Control lever Control the steering and brake of the truck.
7 Fault indicator
Normally on normal condition. Failure regularity, see
the failure code.
13
Display(battery charge level
indicator)
Display the Battery charge level indicator and the
truck total work hour indicator
14 Emergency stop switch
Cut the connection with the battery, close all electric
function and brake.
16 Key switch
Switches the control current ON and OFF.
The truck cannot be operated by unauthorized
persons when the key has been removed from the
switch.
17 Upright traveling button
When the button and the travel switch are pressed,
the vehicle can walk with the joystick installed
vertically.
19 Horn button Give out sound warning signal.
20 “Lift” button
Raise lifting device. When the battery is consumed
about 80%, lifting function will be locked.
21 “Lower” button Lower lifting device.
22 Travel switch Control travelling direction and speed.
23 Collision safety switch
Truck moves away from operator.
Protect the operator from extrusion damage under
emergent circumstances.
