2.4.1 Display (battery charge level indicator)

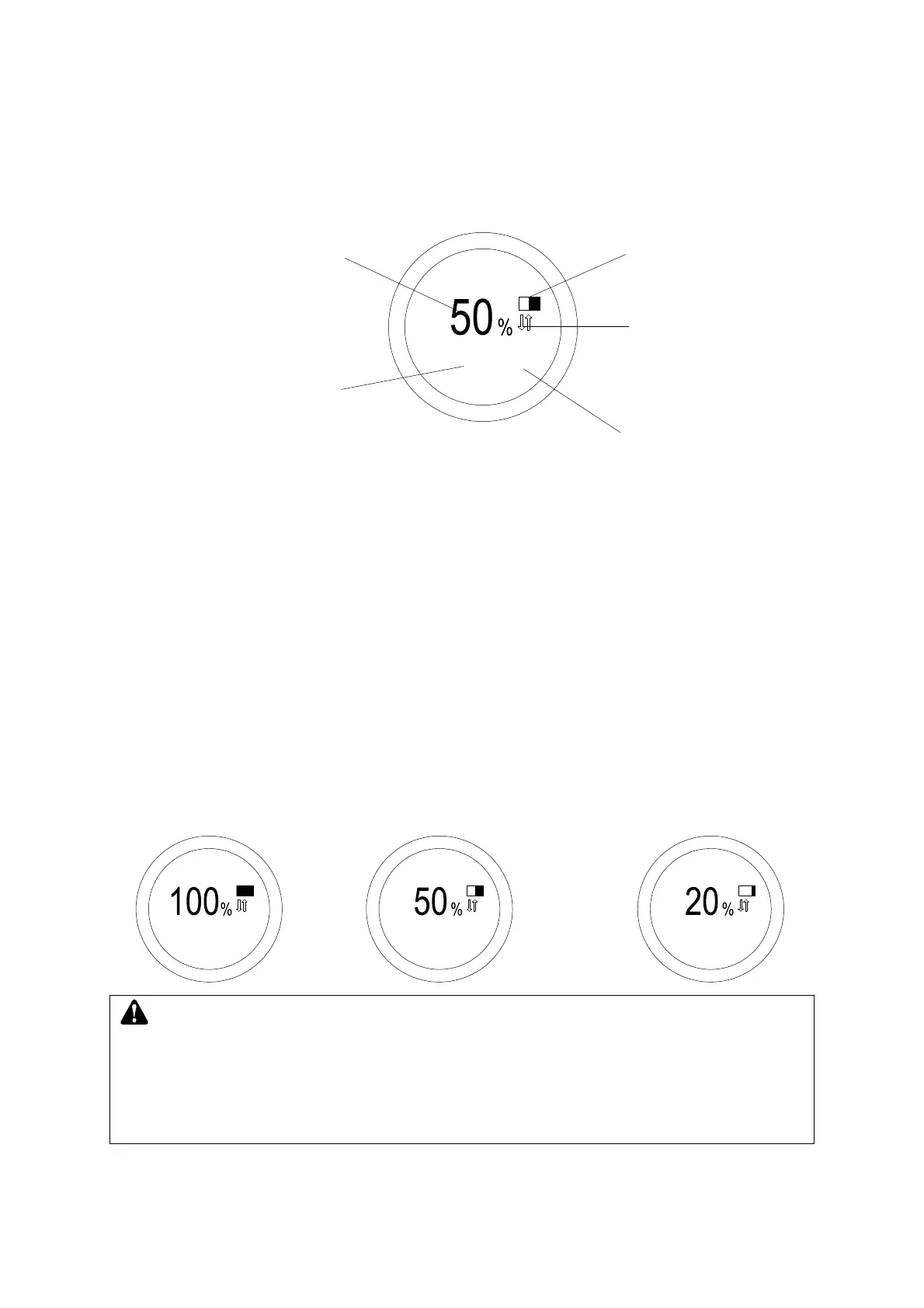

Display the Battery charge level indicator and the truck total work hour indicator
1.2h
¤ ¤¤¤¤
1.power of the
battery
2.Error
code
3.Battery power icon
4.Shows the data
is exchanged
between display
and battery
5.Hour meter
Battery charge level indicator（1）（3）
When the discharge reaches 80%, the two red LED flashes, giving a “out of charge” warning;
when the battery discharges up to 85%, the normally closed relay is disconnected and the
controller is locked to ensure that the battery is not Overdischarge. The battery's discharge status
is displayed through the instrument's 10-cell LED bar. A grid of LED bars corresponds to 10% of
the battery capacity. As the capacity of the battery decreases, the 10-cell LED lights up from right
to left.
10 LED display bars display battery discharging status. One LED means 10% battery power. As
the battery power reduces, 10 LED will light up one by one from right to left.
Fully charged Need charge Low charging status
1.2h
¤ ¤¤¤¤
1.2h
¤ ¤¤¤¤
1.2h
¤ ¤¤¤¤
WARNING
When the charge level reaches 20% the third LED starts to flash.
When the charge reaches 15% the first two LED'S start to flash simultaneously and
the fork lift system is immediately inhibited.
To Next Page
