SCFM 10 15
SPECIFICATIONS
Rated Capacity
a
- (scfm) 10 15
Inlet /Outlet Connections - (inches)
3
⁄8
3
⁄8
Dimensions
Height - (inches) 15.4 15.4
Length - (inches) 12.6 12.6
Width - (inches) 12.6 12.6
Power Supply - (V/Ph/Hz) 115/1/60 115/1/60
Refrigerant Compressor Rating - (hp) 1/8 1/7
Input Power - (kW) 0.21 0.24
Refrigerant Type
b
R-134a R-134a
MINIMUM - MAXIMUM OPERATING CONDITIONS
Min.-Max. Inlet Air Pressure (compressed air at inlet to dryer) 30 - 250 psig 30 - 250 psig
Min.-Max. Inlet Air Temperature (compressed air at inlet to dryer) 40°F - 122°F 40°F - 122°F
Min.-Max. Ambient Temperature 40°F - 113°F 40°F - 113°F
a
Rating conditions are 100°F inlet temperature, 100 psig inlet pressure, 100% inlet relative humidity, 100°F ambient temperature @ 60Hz. Per CAGI ADF-100
b
Refer to dryer data plate for refrigerant charge.

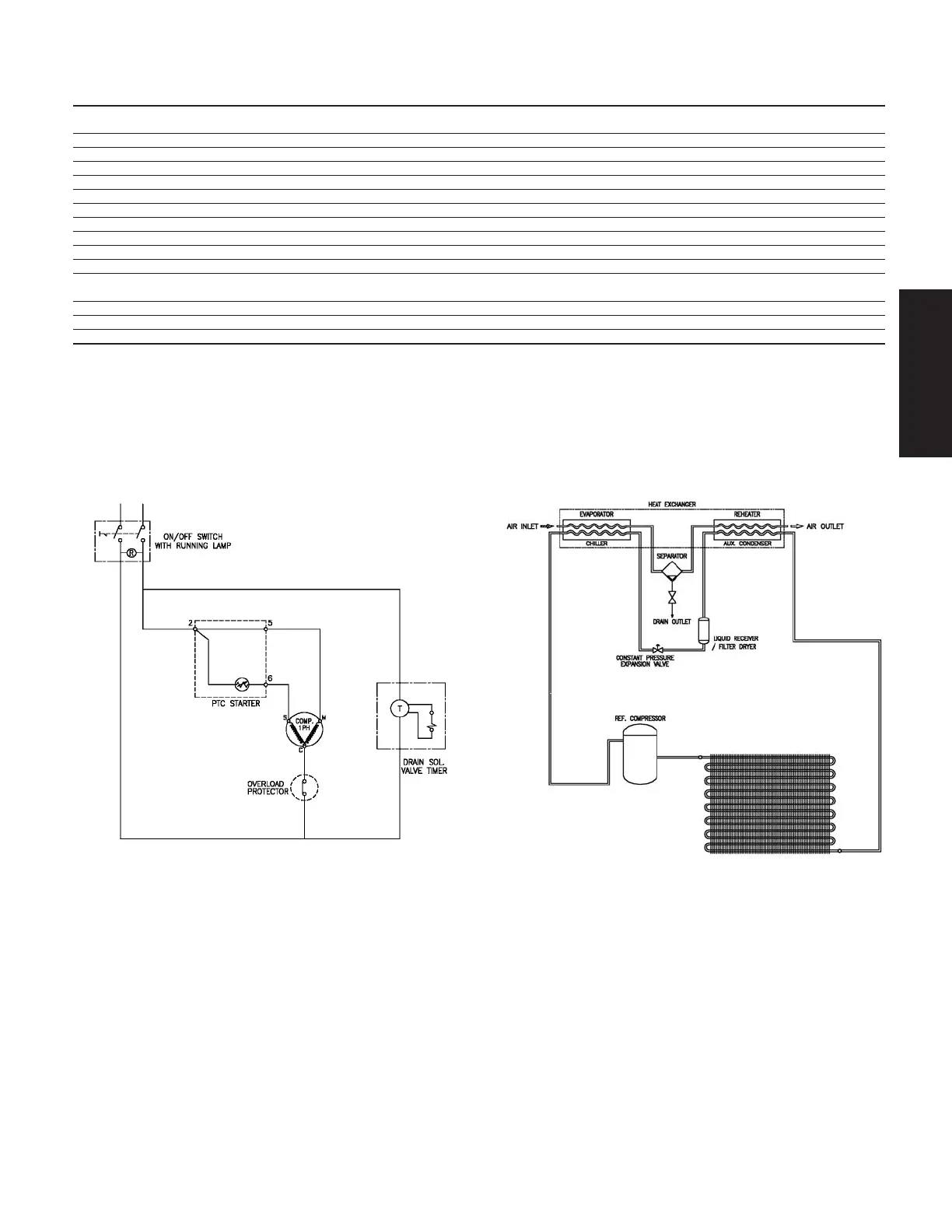

ENGINEERING DATA
Figure 1
ELECTRICAL SCHEMATIC
Figure 2
AIR AND REFRIGERANT FLOW SCHEMATIC
(Model 15 only)
