DIMENSIONS / WEIGHTS
Dimensions
(inches)
Model 100 125 150 200 250 300 400 500 600 750
A 37.56 37.56 37.56 38.60 38.60 45.38 45.38 58.06 58.06 58.06
B 25.62 25.62 25.62 32.15 32.15 32.15 32.15 32.15 32.15 32.15
C 1.63 1.63 1.63 1.88 1.88 2.63 2.63 2.77 2.77 2.77
D 23.62 23.62 23.62 30.15 30.15 30.15 30.15 30.15 30.15 30.15
E 17.62 17.62 17.62 30.15 30.15 30.15 30.15 39.62 39.62 39.62
F 19.62 19.62 19.62 32.15 32.15 32.15 32.15 41.62 41.62 41.62
G 9.58 9.58 9.58 7.64 7.64 13.51 16.25 20.44 20.44 20.44
H 14.96 14.96 14.96 15.80 15.80 21.82 25.68 27.79 27.79 27.79
I 28.54 28.54 28.54 30.19 30.19 29.98 36.89 49.06 49.06 49.06
J 25.02 25.02 25.02 26.04 26.04 25.74 32.82 44.78 44.78 44.78
K 0.31 0.31 0.31 0.31 0.31 0.31 0.31 0.63 0.63 0.63
L
Inlet/Outlet 1 1 1 1-1/2 1-1/2 1-1/2 2 2-1/2 2-1/2 2-1/2
Connections
Weights 251 273 279 425 463 527 571 684 691 734
(lbs)
NOTE: Dimensions and Weights are for reference only. Request certified drawings for construction purposes.

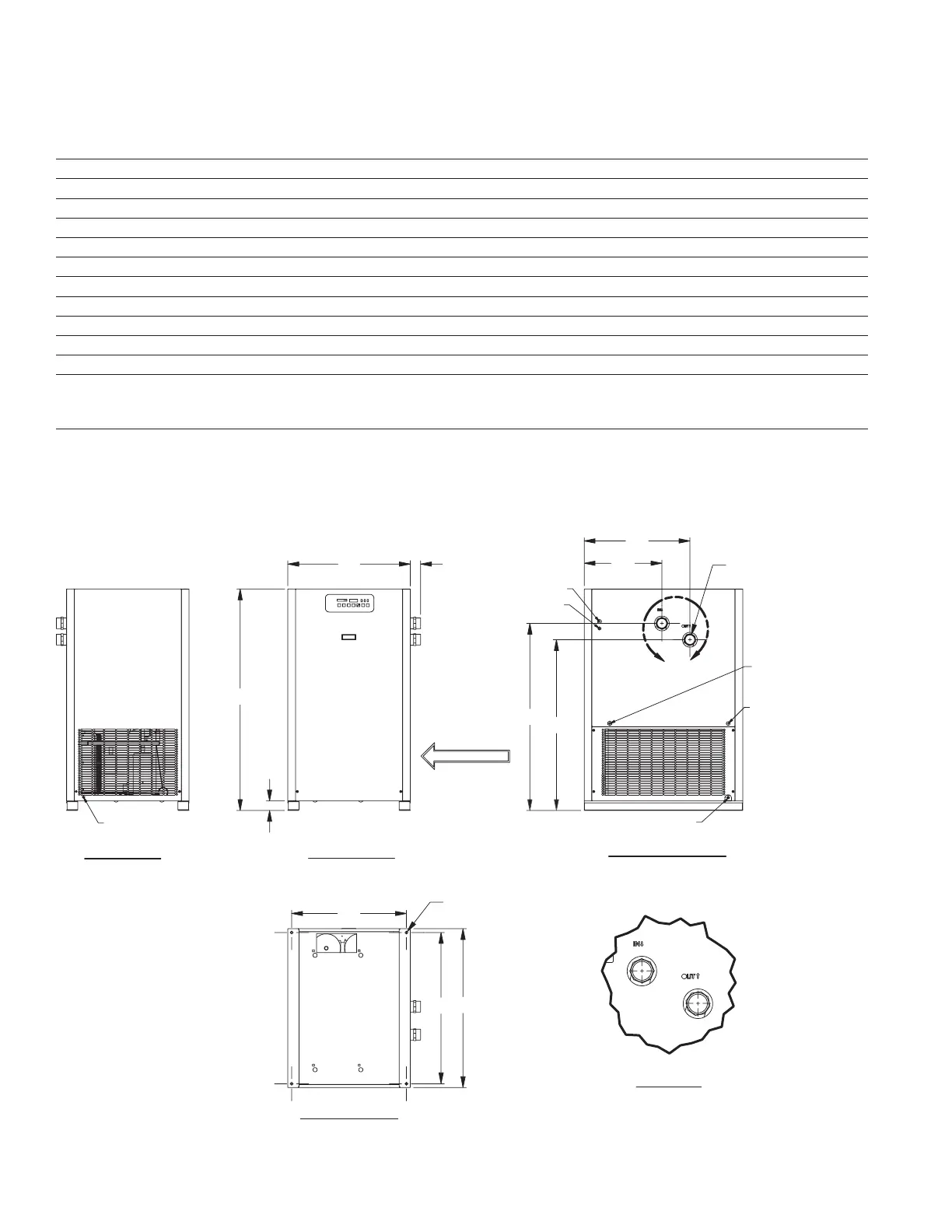

FRONT VIEW
BOTTOM VIEW
RIGHT SIDE VIEW
BACK VIEW
DETAIL A
A
"B"
"A"
"D"
"E"
"F"
"G"
"H"
"I"
"J"
"C"
Ø"K" MOUNTING HOLE
4-PLACES TYP.
"L” - I/O CONNECTIONS
2.500
CONDENSER AIR FLOW
6-FT (1.8 Meters) POWER CORD
MODELS 100-150 (115 VOLT)
ELECTRICAL ENTRY
MODELS 100-150 (230 VOLT)
0.25-NPT DRAIN CONNECTION
MODELS 100-150
Ø1.00 (25mm) ELECTRICAL ENTRY
MODELS 200-750
Ø.750 (19mm) RS-232 ACCESS
MODELS 200-750
0.25-NPT DRAIN CONNECTION
MODELS 200-600
0.25-NPT DRAIN CONNECTION
MODEL 750 ONLY
